Page SAMSUNG TECHWIN 208 DECAN L2 Fix Camera Interface (1/3)
Page
SAMSUNG TECHWIN
207
DECAN
L2
Rear Feeder Board Interface (3/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1
2 EP02-000588A HARNESS,WIRING-FEEDER CN7 EXT CABLE ASSY 1
3 AM03-011269A CABLE ASSY-F_R_FDR_PWR_RELAY 1
4 AM03-011273B CABLE ASSY-RELAY_BRK_MODULE_DC 1
5 J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1
Page
SAMSUNG TECHWIN
208
DECAN
L2
Fix Camera Interface (1/3)
Page
SAMSUNG TECHWIN
209
DECAN
L2

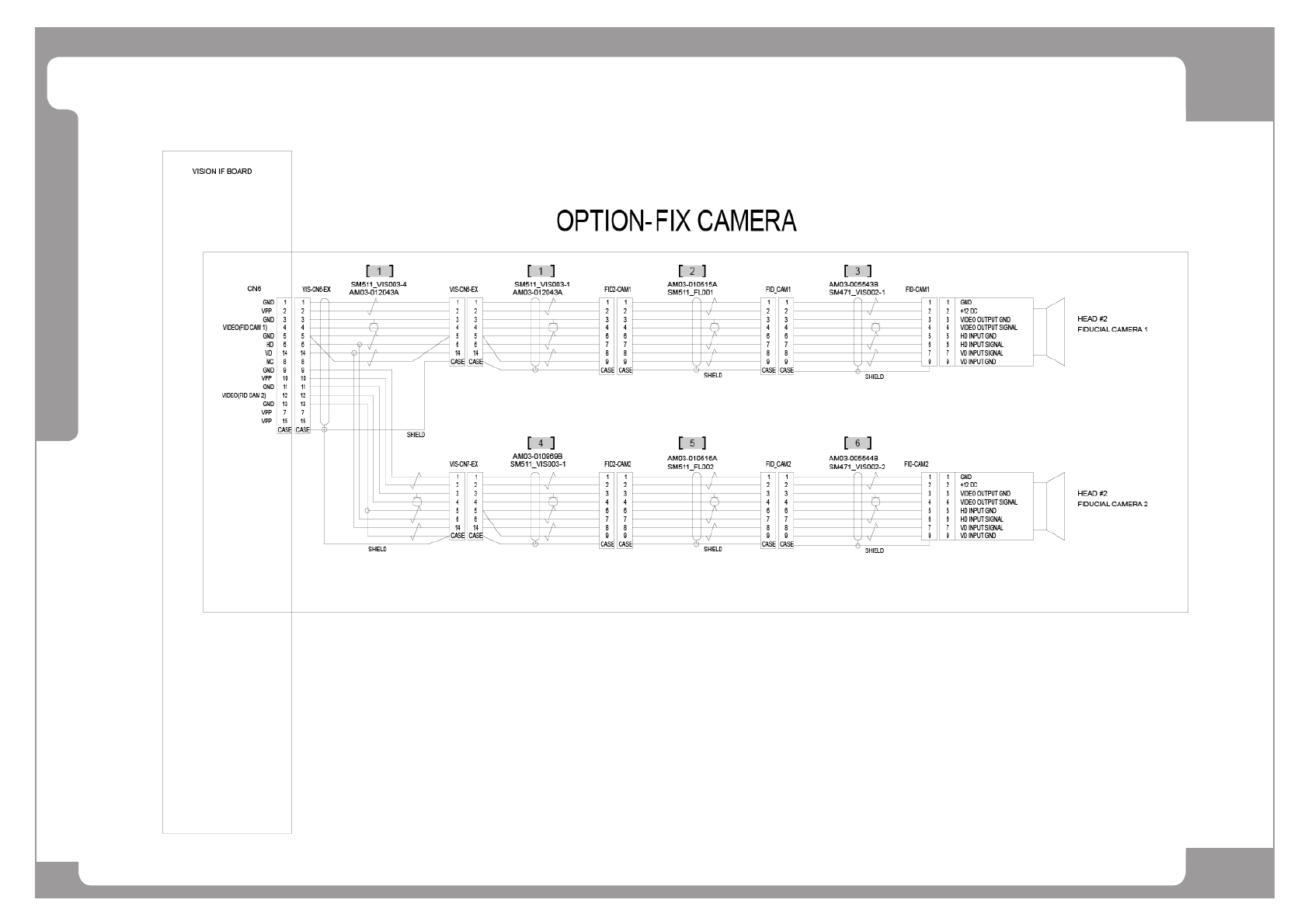

Fix Camera Interface (1/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-012043A CABLE ASSY-HEAD2 FID CAMERA EXT 2
2 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C
3 AM03-005543C CABLE ASSY-FLAT_FID_CAMERA_1 1 AM03-005543B
4 AM03-010969B CABLE ASSY-HEAD2_FIDUCIAL_CAMERA2 1
5 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
6 AM03-005544C CABLE ASSY-FLAT_FID_CAMERA_2 1 AM03-005544B
