Page SAMSUNG TECHWIN 209 DECAN L2 Fix Camera Interface (1/3) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-012043A CABLE A SSY -HEAD2 FID CAMERA EXT 2 2 AM03-013438A CABLE ASSY -SM51 1 FLA…
Page
SAMSUNG TECHWIN
208
DECAN
L2

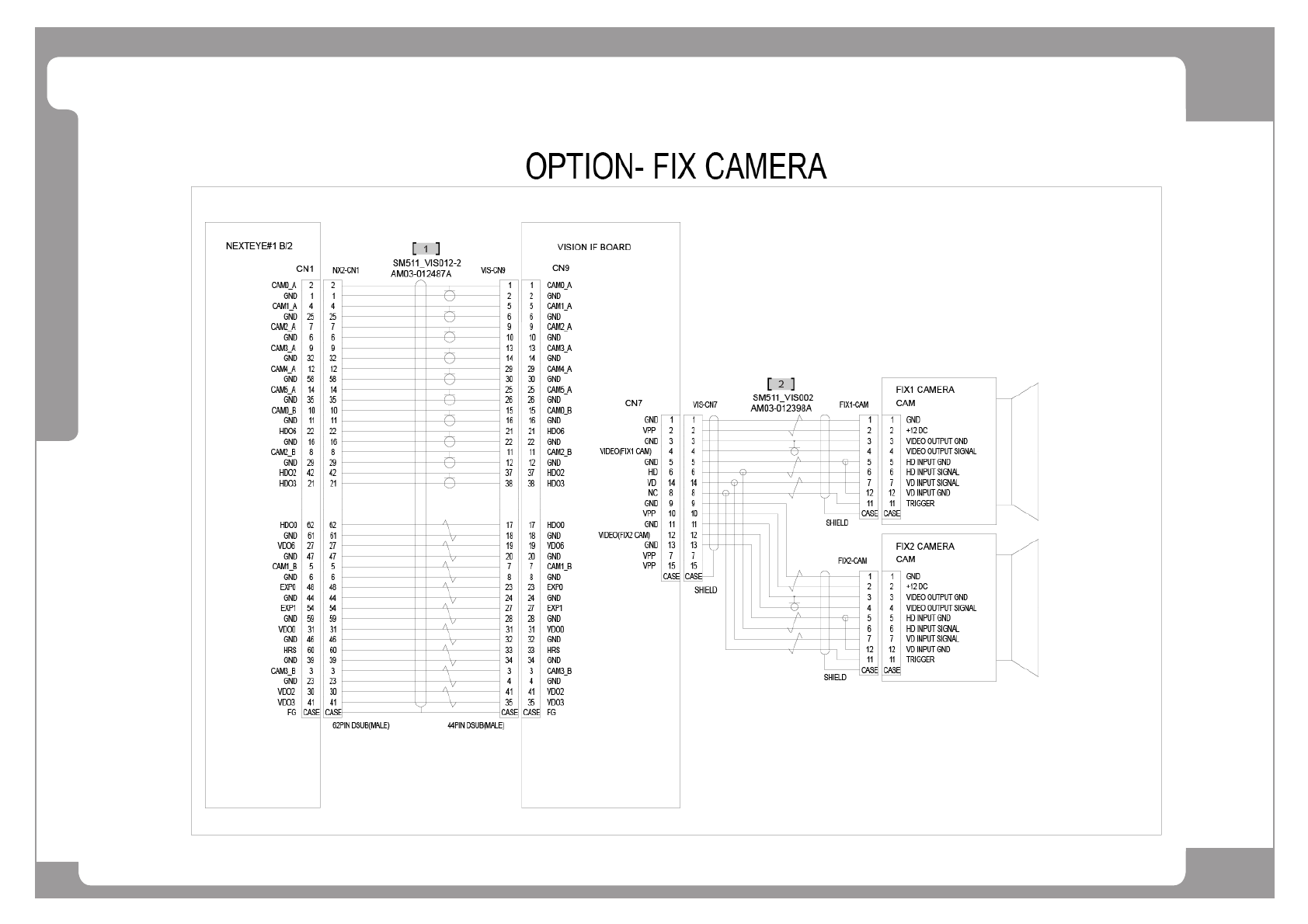

Fix Camera Interface (1/3)
Page
SAMSUNG TECHWIN
209
DECAN
L2
Fix Camera Interface (1/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-012043A CABLE ASSY-HEAD2 FID CAMERA EXT 2
2 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C
3 AM03-005543C CABLE ASSY-FLAT_FID_CAMERA_1 1 AM03-005543B
4 AM03-010969B CABLE ASSY-HEAD2_FIDUCIAL_CAMERA2 1
5 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
6 AM03-005544C CABLE ASSY-FLAT_FID_CAMERA_2 1 AM03-005544B
Page
SAMSUNG TECHWIN
210
DECAN
L2
Fix Camera Interface (2/3)
