Page SAMSUNG TECHWIN 225 DECAN L2 Conveyor IF Board (2/10) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-010844B CABLE ASSY -INLINE_IN-OUT_CVIF 1 2 AM03-010847A CABLE A SSY -ANC_SENSOR_ FR…
Page
SAMSUNG TECHWIN
224
DECAN
L2

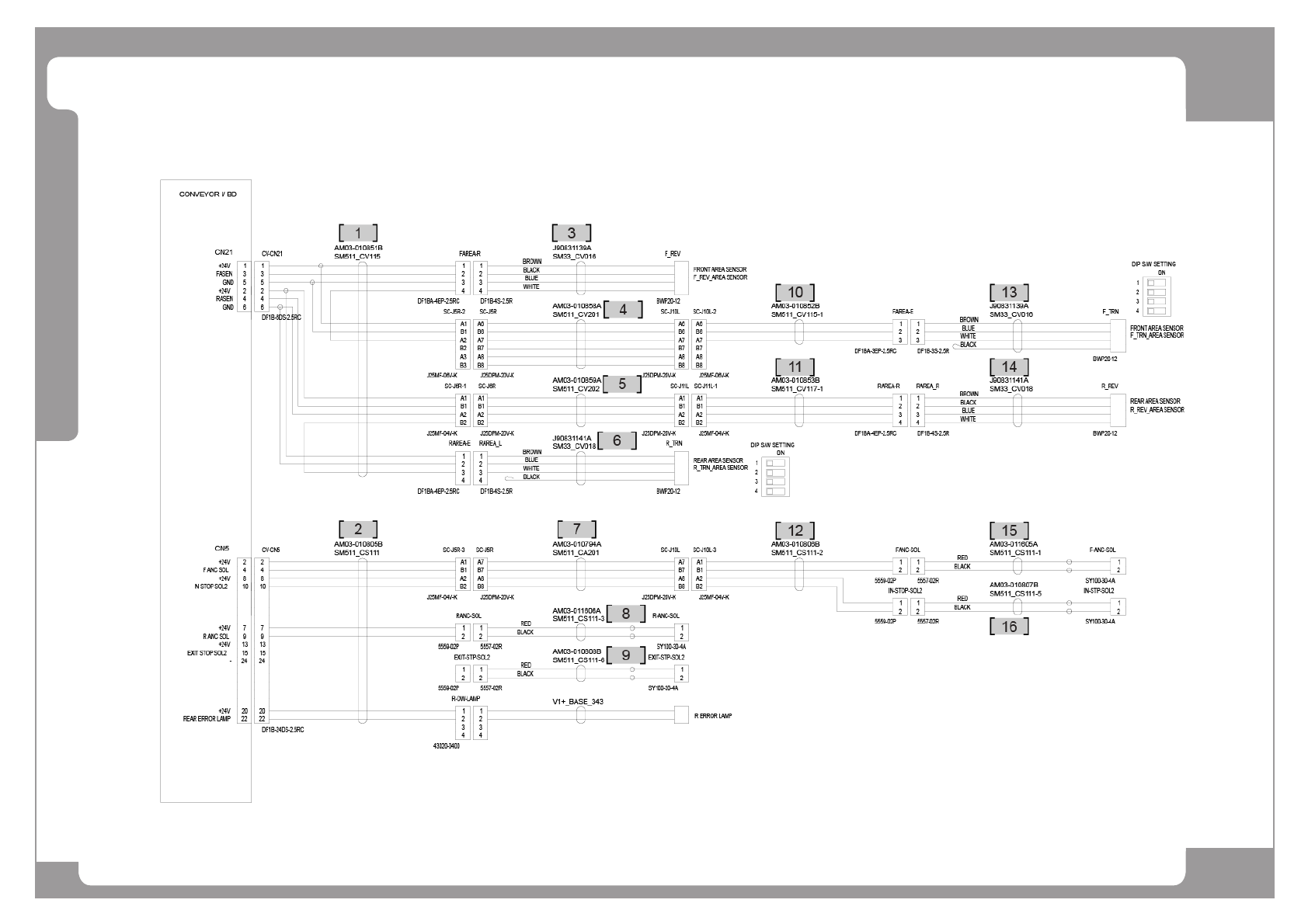

Conveyor IF Board (2/10)
Page
SAMSUNG TECHWIN
225
DECAN
L2

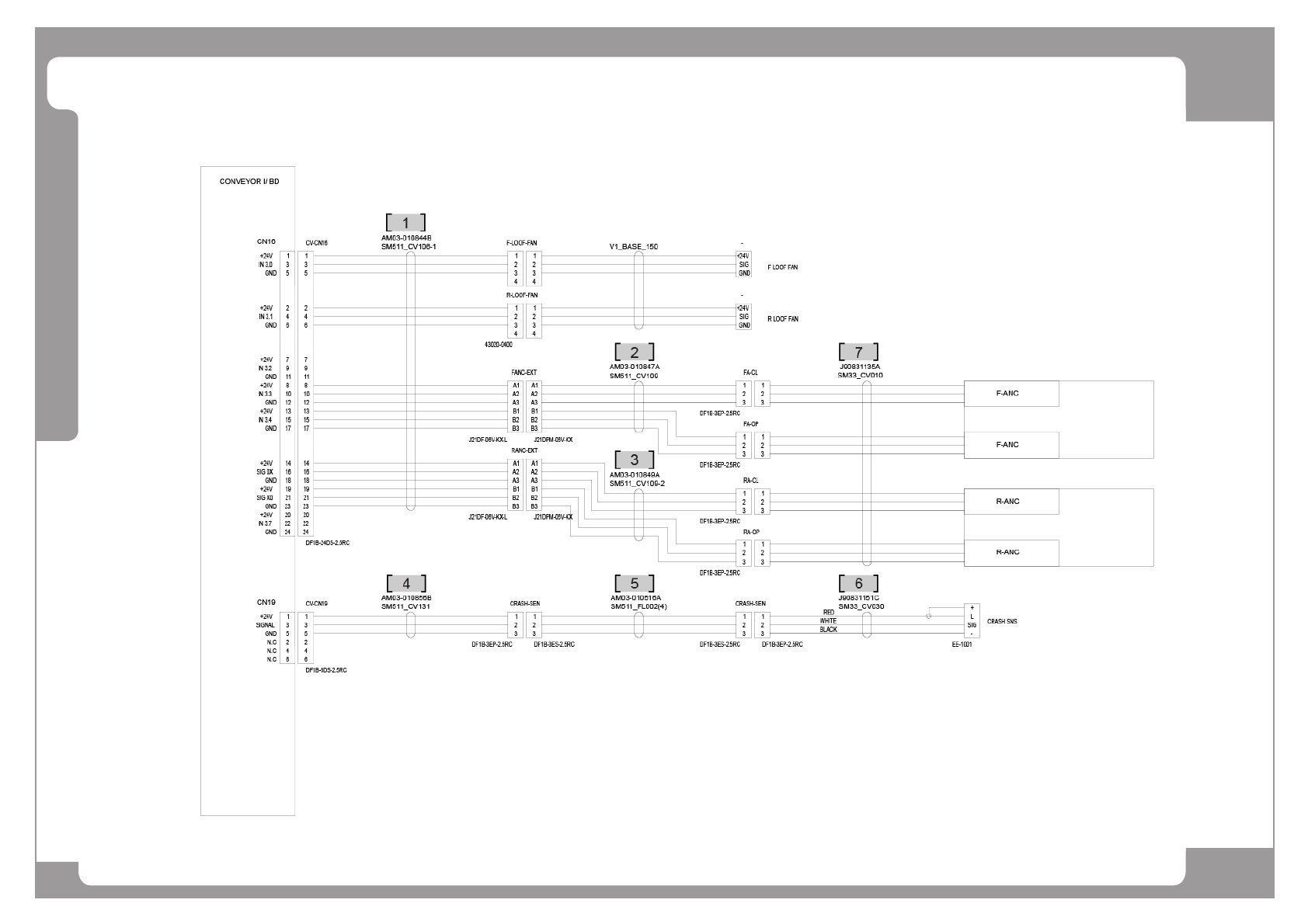

Conveyor IF Board (2/10)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010844B CABLE ASSY-INLINE_IN-OUT_CVIF 1
2 AM03-010847A CABLE ASSY-ANC_SENSOR_FRONT_EXT 1
3 AM03-010849B CABLE ASSY-ANC_SENSOR_REAR_EXT 1 AM03-010849A
4 AM03-010856B CABLE ASSY-CRASH_SENSOR_I-F 1
5 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
6 J90831151C CRASH_SENSOR_CABLE_ASSY 1
7 J90831135A ANC_SENSOR_CABLE_ASSY SM33-CV010 1
Page
SAMSUNG TECHWIN
226
DECAN
L2
Conveyor IF Board (3/10)
