Page SAMSUNG TECHWIN 21 DECAN L2 Stage CAM Ass’y NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference A AM03-007707B A SSY ,OPTICS-SM482_ST AGE_MEGA_35_A SSY 1 B AM03-007727B A SSY ,OPTICS-SM482_ST AGE_…
Page
SAMSUNG TECHWIN
20
DECAN
L2

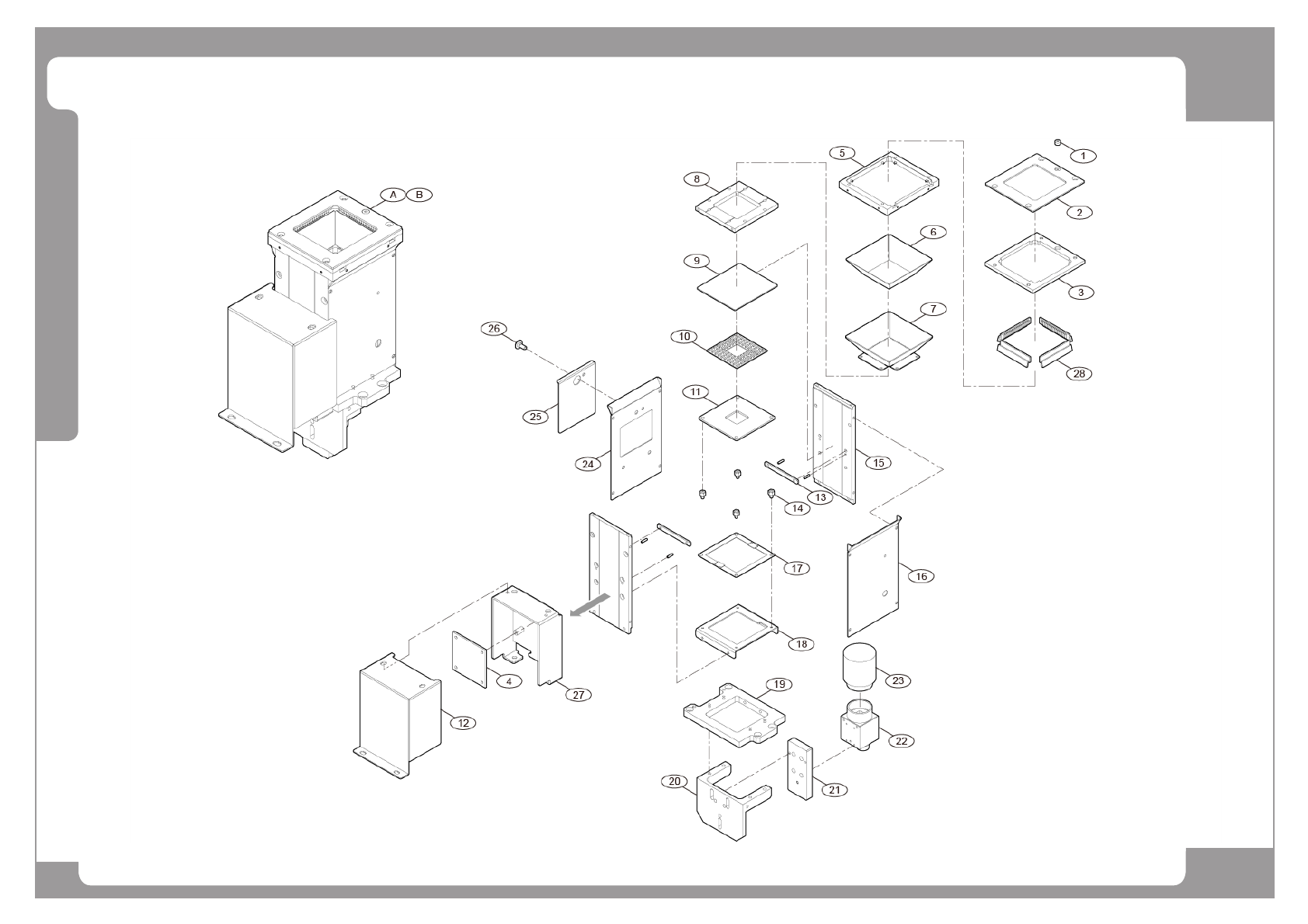

Stage CAM Ass’y
Page
SAMSUNG TECHWIN
21
DECAN
L2
Stage CAM Ass’y
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-007707B ASSY,OPTICS-SM482_STAGE_MEGA_35_ASSY 1
B AM03-007727B ASSY,OPTICS-SM482_STAGE_MEGA_45_ASSY 1
1 J7153373A FIDUCIAL_DISK 1
2 FC15-001295B LIGHT_COVER 1
3 FC09-002220A LIGHT_G_1 1
4 J91741051A SSA_VIS_FIX_IF_BOARD LEDIF02 1
5 J90600075B STAGE SIDE LIGHT BOARD ASSY 1
6 EP15-000010A REFLECT_SHEET 4
7 FC09-002223A LIGHT GUIDE 4
8 FC15-001294A PROFILE_2 1
9 EP12-000044A GLASS 1
10 J90600073C LED98-9 BOARD ASSY STAGE INNER 1
11 PT02-000048A DIFFUSER 1
12 FC15-002395B COVER-STAGE_CAM_BOARD 1 FC15-002395A
13 FC09-002218A GLASS_STOP 2
14 FC29-900610 HEX SUPPORT 4
15 FC15-001293A PROFILE_1 1
16 FC15-001291A COVER_2 1
17 FC09-002222A PCB_BASE_2 1
18 FC09-002221A PCB_BASE_1 1
19 FC05-000225A BASE 1
20 J7159120D CAMERA_STAND 1
21 JS759001A CAMERA_HOLDER 1
22 PT02-900001 CCD CAMERA 1
23 J9059118A LENS_F45-60 1
24 FC15-001290A COVER_1 1
25 FC15-001292A COVER_COMP 1
26 J7066008D LINK_SHAFT_1 1
27 FC09-003893A BKT_S_CAM_BOARD 1
28 J90600074B STAGE OUTER LIGHT BOARD ASSY 4
Page
SAMSUNG TECHWIN
22
DECAN
L2
Docking Cart (1/4)
