Page SAMSUNG TECHWIN 254 DECAN L2 Head IF Board (4/5)
Page
SAMSUNG TECHWIN
253
DECAN
L2
Head IF Board (3/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-015134A CABLE ASSY-HEAD_VACUUM_SOL 1
2 AM03-015135A CABLE ASSY-HEAD_BLOW_SOL 1
Page
SAMSUNG TECHWIN
254
DECAN
L2

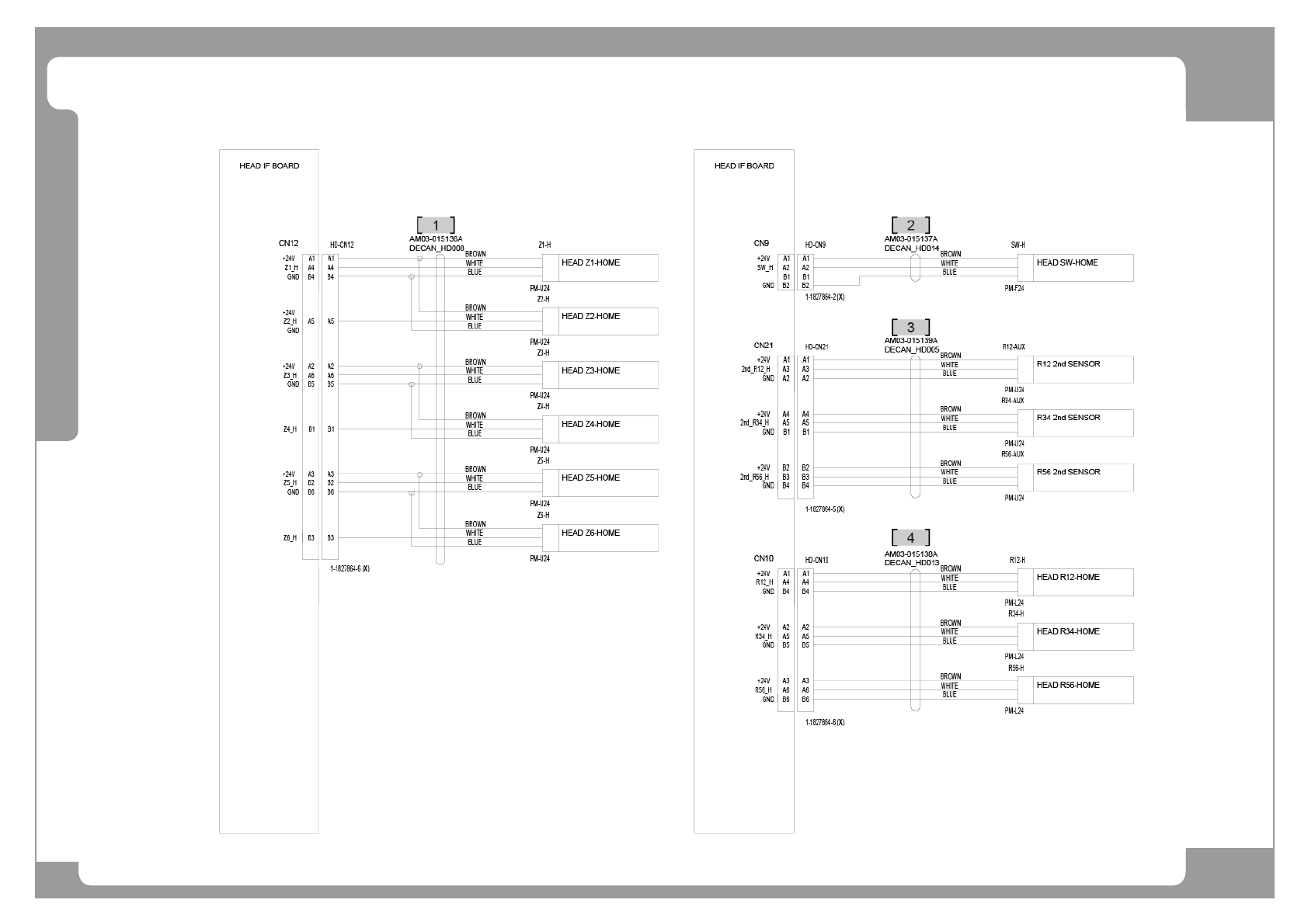

Head IF Board (4/5)
Page
SAMSUNG TECHWIN
255
DECAN
L2
Head IF Board (4/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-015136A CABLE ASSY-Z HOME SENSOR 1
2 AM03-015137A CABLE ASSY-SW HOME SENSOR 1
3 AM03-015139A CABLE ASSY-R AUX HOME SENSOR 1
4 AM03-015138A CABLE ASSY-R HOME SENSOR 1
