Page SAMSUNG TECHWIN 256 DECAN L2 Head IF Board (5/5)
Page
SAMSUNG TECHWIN
255
DECAN
L2
Head IF Board (4/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-015136A CABLE ASSY-Z HOME SENSOR 1
2 AM03-015137A CABLE ASSY-SW HOME SENSOR 1
3 AM03-015139A CABLE ASSY-R AUX HOME SENSOR 1
4 AM03-015138A CABLE ASSY-R HOME SENSOR 1
Page
SAMSUNG TECHWIN
256
DECAN
L2
Head IF Board (5/5)
Page
SAMSUNG TECHWIN
257
DECAN
L2

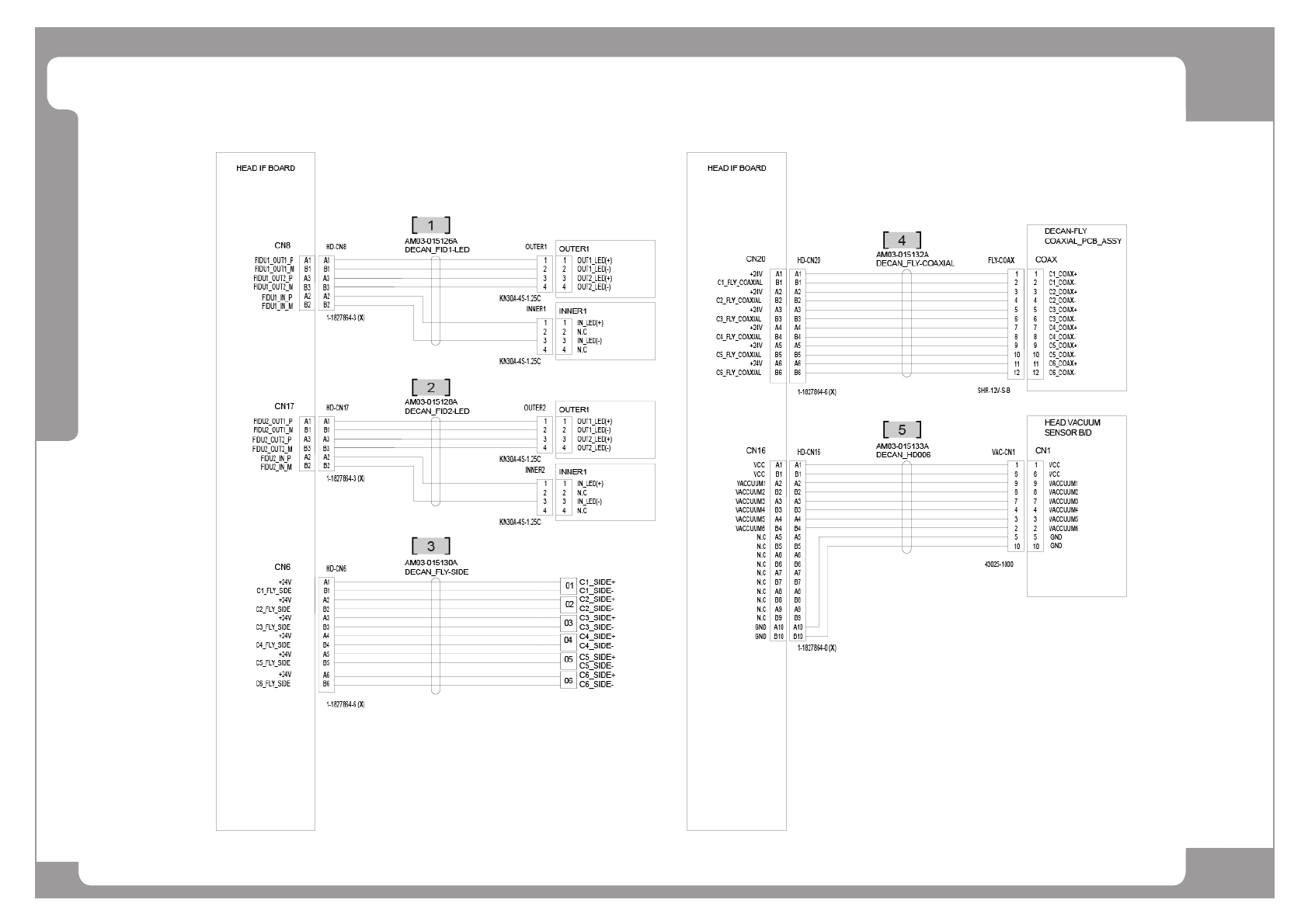

Head IF Board (5/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-015126A CABLE ASSY-FID1 LED 1
2 AM03-015128A CABLE ASSY-CABLE ASSY-FID2 LED 1
3 AM03-015130A CABLE ASSY-FLY SIDE LED 1
4 AM03-015132A CABLE ASSY-CABLE ASSY-FLY COAXIAL LED 1
5 AM03-015133A CABLE ASSY-HEAD VACUUM SENSOR 1
