Page SAMSUNG TECHWIN 260 DECAN L2 Axis Sensor Board (2/6)
Page
SAMSUNG TECHWIN
259
DECAN
L2
Axis Sensor Board (1/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-011671A CABLE ASSY-AXIS_SENSOR_BD_PW 1
2 AM03-010798A CABLE ASSY-AXIS_SNS_BD_AXIO#1 1
3 AM03-010800A CABLE ASSY-AXIS_SNS_BD_CN9_10 1
Page
SAMSUNG TECHWIN
260
DECAN
L2

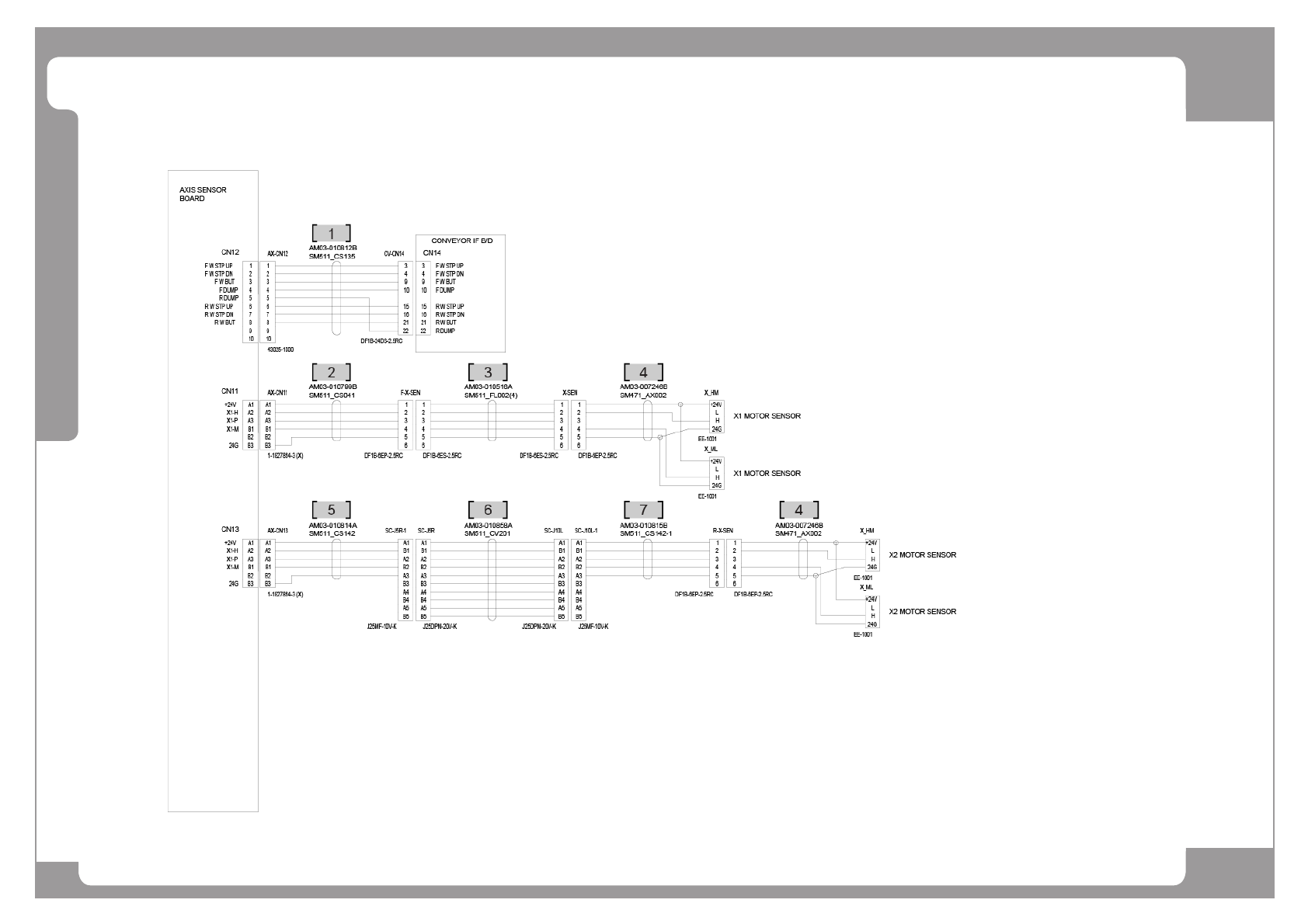

Axis Sensor Board (2/6)
Page
SAMSUNG TECHWIN
261
DECAN
L2
Axis Sensor Board (2/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010812B CABLE ASSY-AXIS_SENSOR_BD_STP-BUT 1
2 AM03-010799B CABLE ASSY-AX_BD_X1_MOT_SNS 1
3 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
4 AM03-007246B CABLE ASSY-X AXIS SENSOR 2
5 AM03-010814A CABLE ASSY-AX_BD_X2_MOT_SNS_J5R 1
6 AM03-010858A CABLE ASSY-AX_X2_F_AREA_SNS_J5R-J10L 1
7 AM03-010815B CABLE ASSY-AX_BD_X2_MOT_SNS_J10L 1
