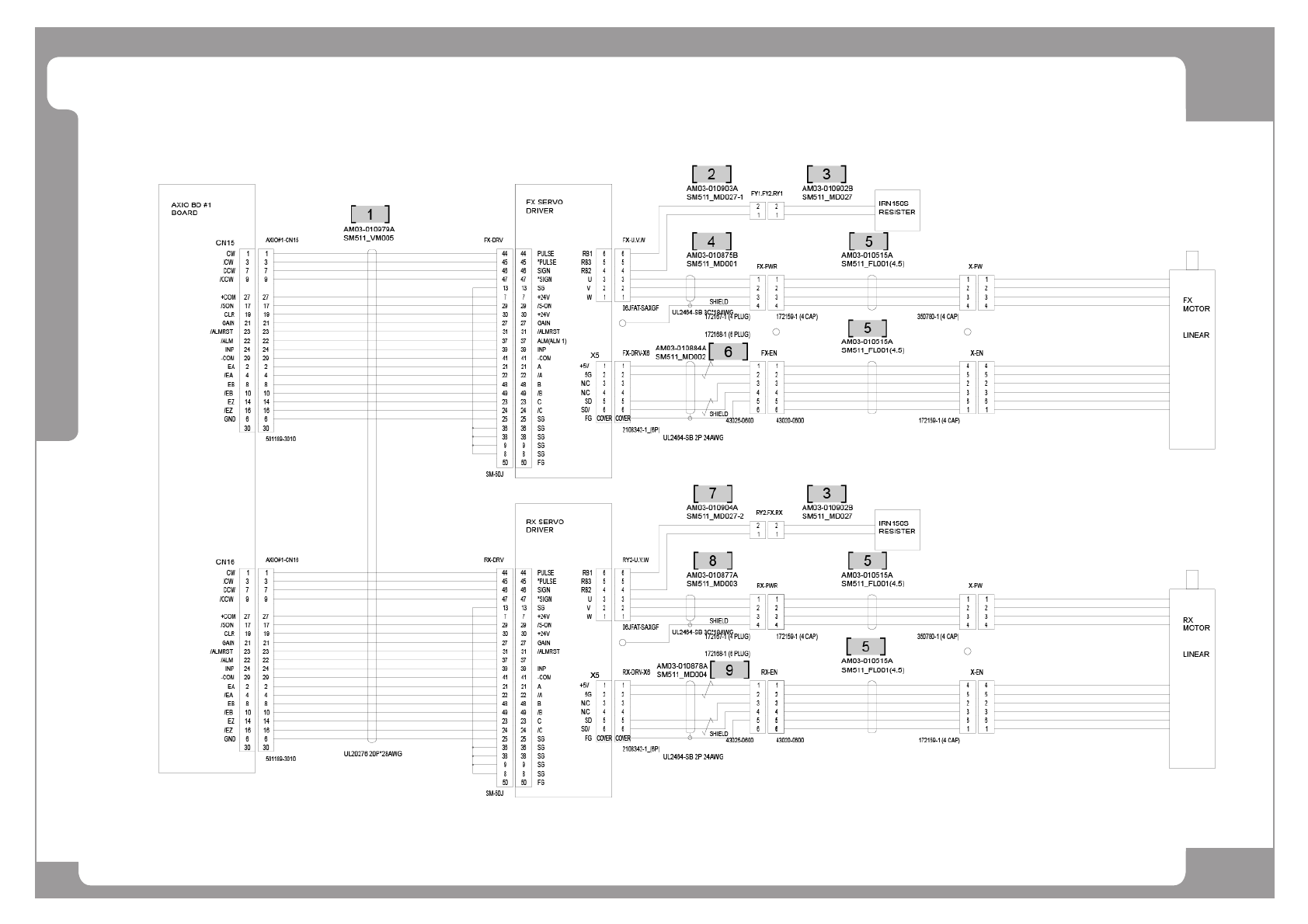

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010979A CABLE ASSY-FX_FS_DRV_COMMAND 1
2 AM03-010903A CABLE ASSY-REGEN_RESISTOR_DRV_1 1
3 AM03-010902C CABLE ASSY-REGEN_RESISTOR 2 AM03-010902A/AM03-010902B
4 AM03-010875B CABLE ASSY-FX_MOTOR_PWR 1
5 AM03-010515A CABLE ASSY-SM511 FLAT 1 4 AM03-010515C
6 AM03-010876A CABLE ASSY-FX_MOTOR_ENC 1
7 AM03-010904A CABLE ASSY-REGEN_RESISTOR_DRV_2 1
8 AM03-010887B CABLE ASSY-RY2_LINEAR_ENC 1 AM03-010887A
9 AM03-010878A CABLE ASSY-RX_MOTOR_ENC 1
