Page SAMSUNG TECHWIN 285 DECAN L2 Axis IO Board (8/16) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-01 1672A CABLE A SSY -BW12_BS12 _DRV_COMMAND 1 2 AM03-010816 B CABLE ASS Y -IN_CONV_32P…
Page
SAMSUNG TECHWIN
284
DECAN
L2

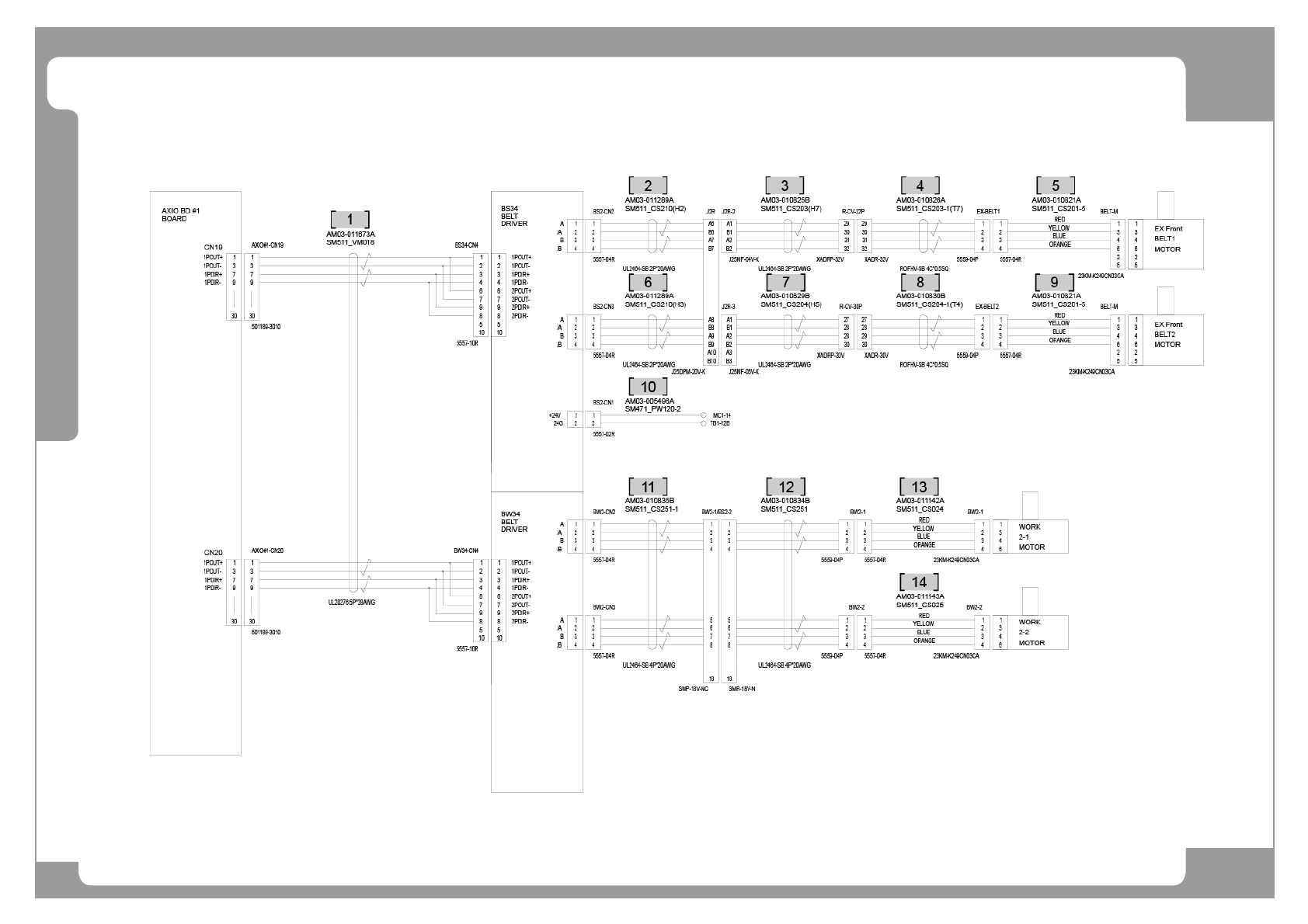

Axis IO Board (8/16)
Page
SAMSUNG TECHWIN
285
DECAN
L2
Axis IO Board (8/16)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-011672A CABLE ASSY-BW12_BS12_DRV_COMMAND 1
2 AM03-010816B CABLE ASSY-IN_CONV_32P_MODULE_A 1
3 AM03-010817A CABLE ASSY-IN_CONV_32P_MODULE_B 1
4 AM03-010821A CABLE ASSY-CONV_BELT_STEP_MOTOR 2
5 AM03-010822C CABLE ASSY-IN_CONV_30P_MODULE_A 1
6 AM03-010823B CABLE ASSY-IN_CONV_30P_MODULE_B 1
7 AM03-005496A CABLE ASSY-BELT_DRV_PW 1
8 AM03-010832B CABLE ASSY-BW1-1_MOTOR_EXT 1
9 AM03-011140A CABLE ASSY-BELT MOTOR(BW1-1) 1
10 AM03-010833B CABLE ASSY-BW1-2_MOT_EXT 1
11 AM03-011141A CABLE ASSY-BELT MOTOR(BW1-2) 1
Page
SAMSUNG TECHWIN
286
DECAN
L2
Axis IO Board (9/16)
