Page SAMSUNG TECHWIN 293 DECAN L2 Axis IO Board (12/16) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-012623A CABLE A SSY -WD_DRV_CMD_AXIO 1 2 AM03-012622A CABLE A SSY -SW_WD_SERVO_POWER 1…
Page
SAMSUNG TECHWIN
292
DECAN
L2

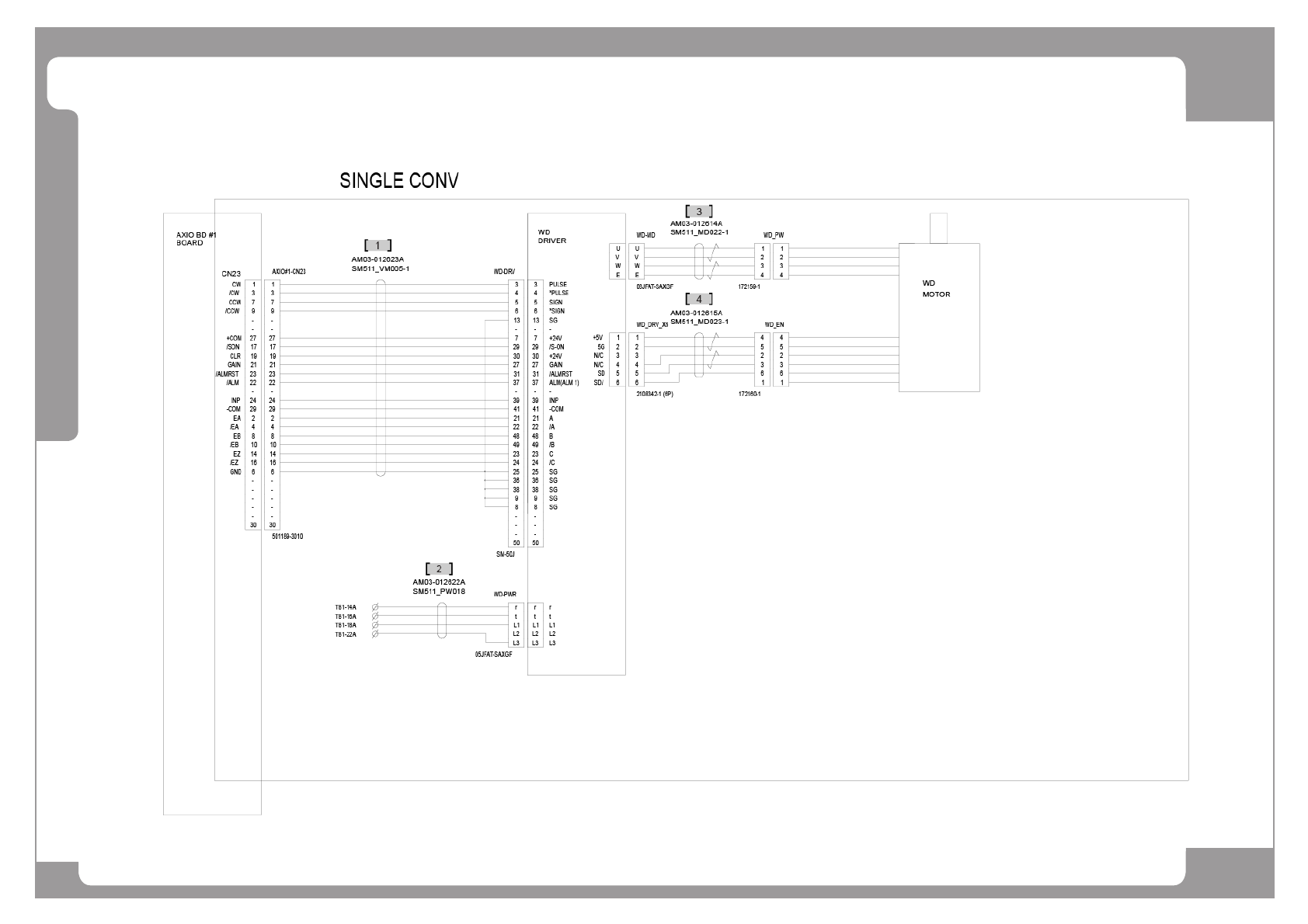

Axis IO Board (12/16)
Page
SAMSUNG TECHWIN
293
DECAN
L2
Axis IO Board (12/16)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-012623A CABLE ASSY-WD_DRV_CMD_AXIO 1
2 AM03-012622A CABLE ASSY-SW_WD_SERVO_POWER 1
3 AM03-012614A CABLE ASSY-WD_MOTOR_POWER 1
4 AM03-012615A CABLE ASSY-WD_MOTOR_ENC 1
Page
SAMSUNG TECHWIN
294
DECAN
L2
Axis IO Board (13/16)
