Page SAMSUNG TECHWIN 308 DECAN L2 Safety Contro l Board (4/8)
Page
SAMSUNG TECHWIN
307
DECAN
L2
Safety Control Board (3/8)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010948B CABLE ASSY-R_OP_PANEL_IF 1
2 AM03-010905B CABLE ASSY-OP_PANEL_ASSY 1
3 AM03-010078A CABLE ASSY-FRONT_REAR_DOOR_SW 1
4 AM03-010839A CABLE ASSY-SACO_F_TBOX 1
5 AM03-010837C CABLE ASSY-FRONT_TEACHING_BOX_EXT 1 AM03-010837B
6 AM03-010840B CABLE ASSY-SACO_R_TBOX 1
7 AM03-010838C CABLE ASSY-REAR_TEACHING_BOX_EXT 1 AM03-010838B
Page
SAMSUNG TECHWIN
308
DECAN
L2
Safety Control Board (4/8)
Page
SAMSUNG TECHWIN
309
DECAN
L2

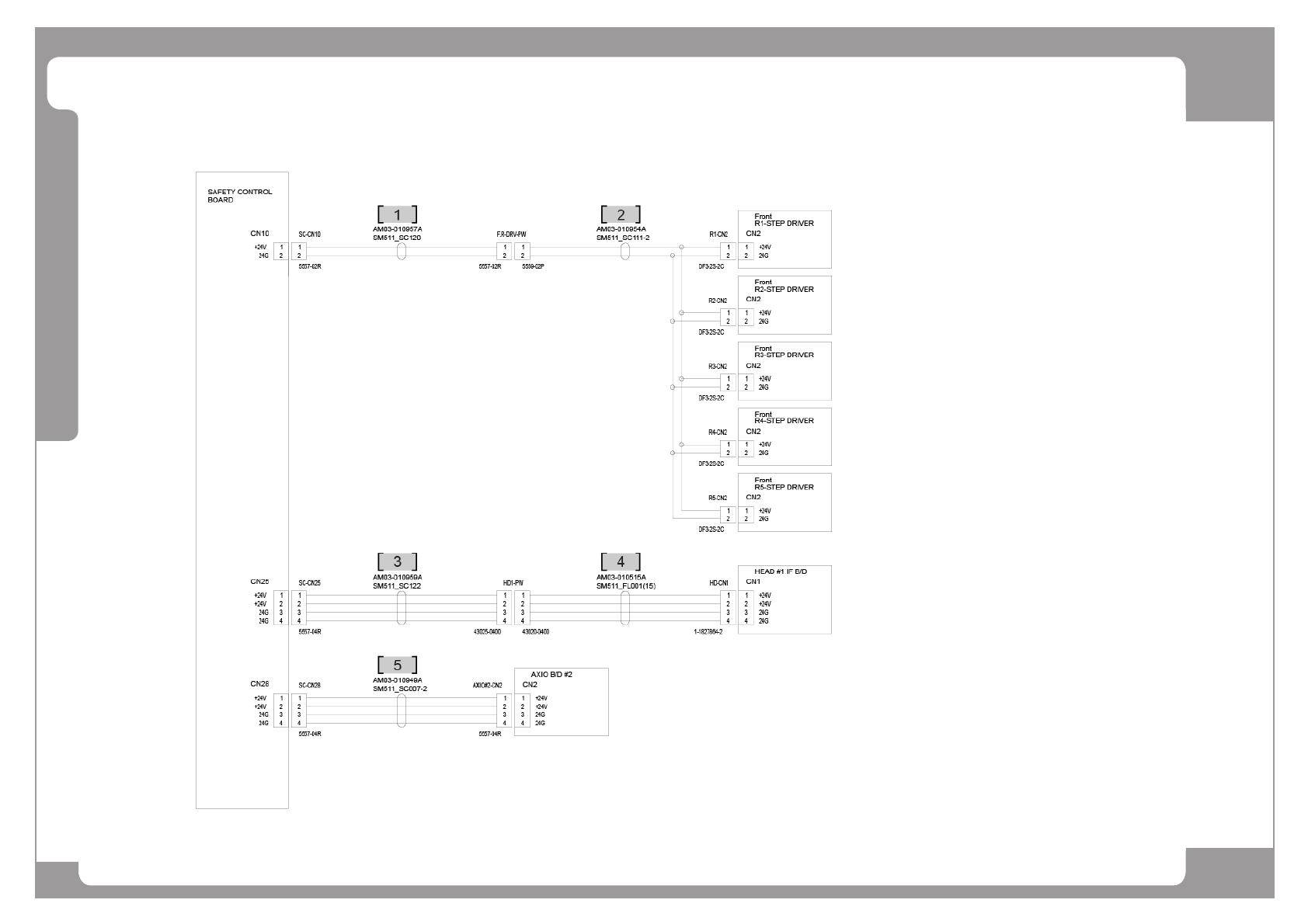

Safety Control Board (4/8)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010957A CABLE ASSY-FR_STEP_DRV_PWR_EXT 1
2 AM03-010954A CABLE ASSY-R_STEP_DRV_PWR 1
3 AM03-010959A CABLE ASSY-HEAD1_PWR_EXT 1
4 M03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C
5 AM03-010949A CABLE ASSY-AXIO_BD_2_PWR 1
