Page SAMSUNG TECHWIN 330 DECAN L2 Motor IF Board (7/18)
Page
SAMSUNG TECHWIN
329
DECAN
L2
Motor IF Board (6/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010982A CABLE ASSY-R1_R2_R3_DRV_COMMAND 5
2 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C
3 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
4 AM03-008031A CABLE ASSY-R1_MOTOR 1 AM03-005618A
5 AM03-008031A CABLE ASSY-R2_MOTOR 1 AM03-005619A
6 AM03-008031A CABLE ASSY-R3_MOTOR 1 AM03-005620A
7 AM03-008031A CABLE ASSY-R4_MOTOR 1 AM03-005621A
8 AM03-008031A CABLE ASSY-R5_MOTOR 1 AM03-005622A
Page
SAMSUNG TECHWIN
330
DECAN
L2
Motor IF Board (7/18)
Page
SAMSUNG TECHWIN
331
DECAN
L2

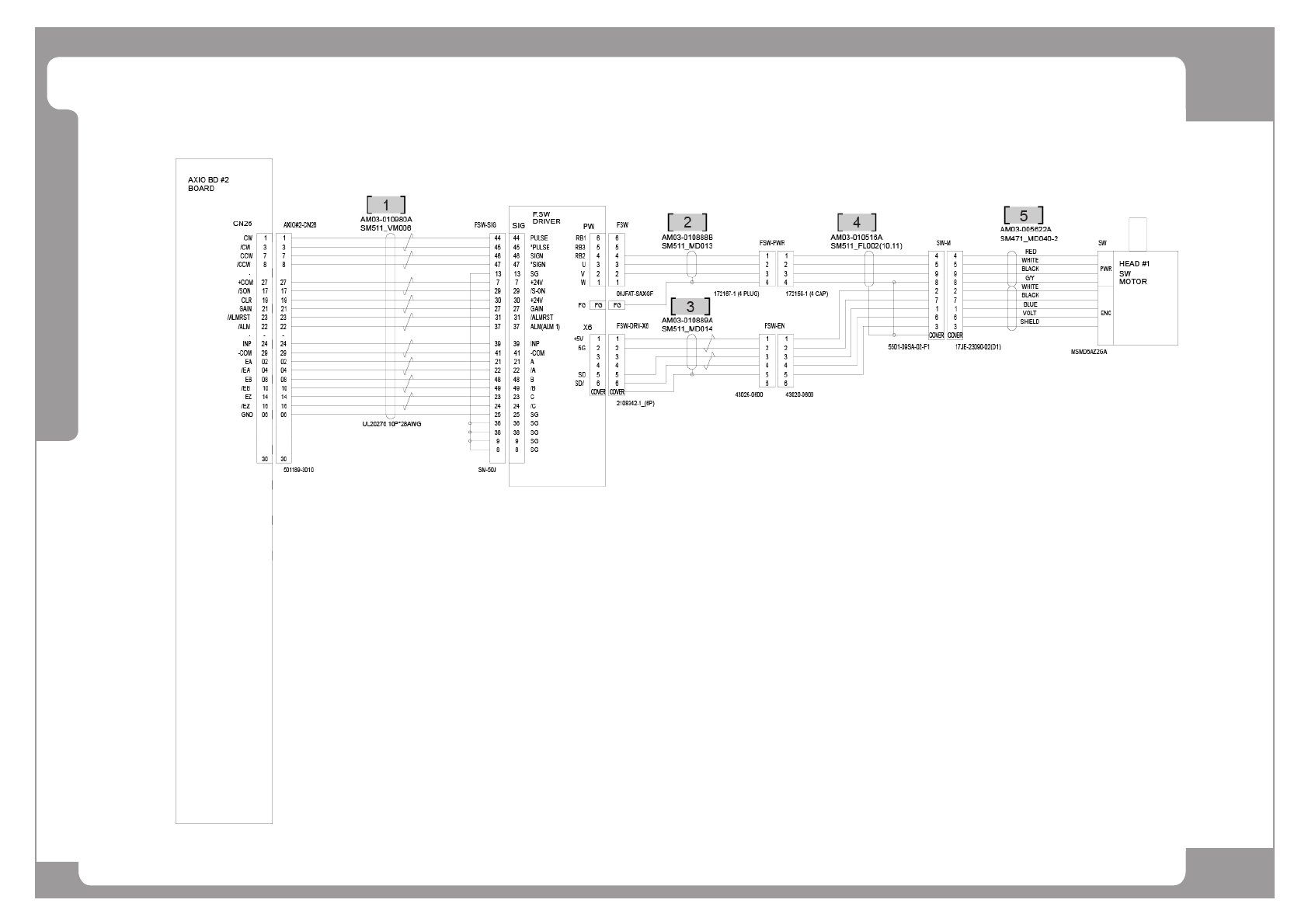

Motor IF Board (7/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-014691A CABLE ASSY-FSW_DRV_COMMAND 1 AM03-010980A
2 AM03-014689A CABLE ASSY-FRON_MONITOR_PW 1 AM03-010888B
3 AM03-010889A CABLE ASSY-FSW_MOTOR_ENC 1
4 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
5 AM03-008031A CABLE ASSY-R5_MOTOR 1 AM03-005622A
