Page SAMSUNG TECHWIN 332 DECAN L2 Motor IF Board (8/18)
Page
SAMSUNG TECHWIN
331
DECAN
L2
Motor IF Board (7/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-014691A CABLE ASSY-FSW_DRV_COMMAND 1 AM03-010980A
2 AM03-014689A CABLE ASSY-FRON_MONITOR_PW 1 AM03-010888B
3 AM03-010889A CABLE ASSY-FSW_MOTOR_ENC 1
4 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
5 AM03-008031A CABLE ASSY-R5_MOTOR 1 AM03-005622A
Page
SAMSUNG TECHWIN
332
DECAN
L2
Motor IF Board (8/18)
Page
SAMSUNG TECHWIN
333
DECAN
L2

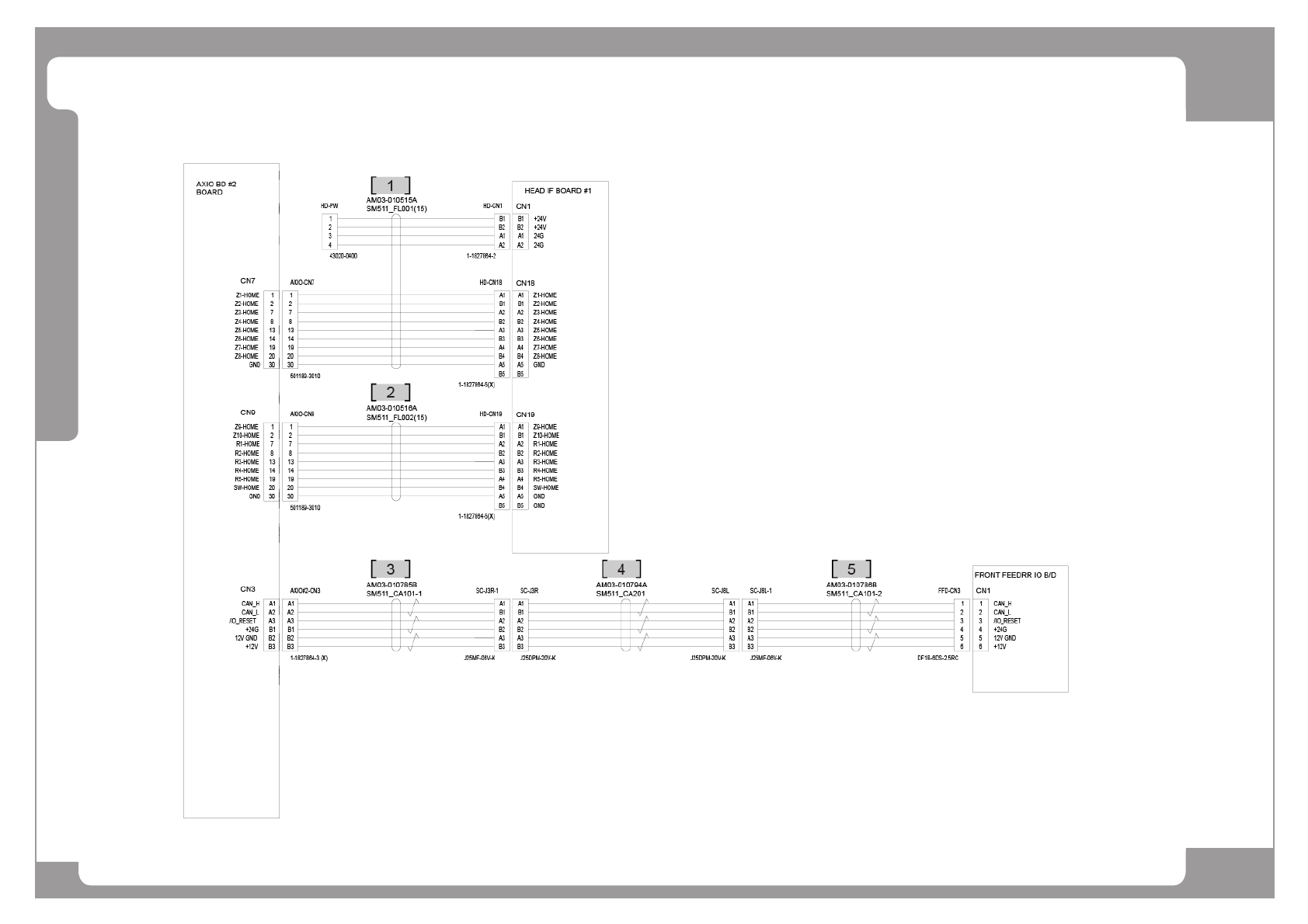

Motor IF Board (8/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C
2 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
3 AM03-010785B CABLE ASSY-BD_2_FFD_CAN_J3R 1
4 AM03-010794A CABLE ASSY-AXIO_CAN_FDR_UL_J3R-J8L 1
5 AM03-010786B CABLE ASSY-AXIO_BD_2_FFD_CAN_J8L 1
