Page
SAMSUNG TECHWIN
348
DECAN
L2

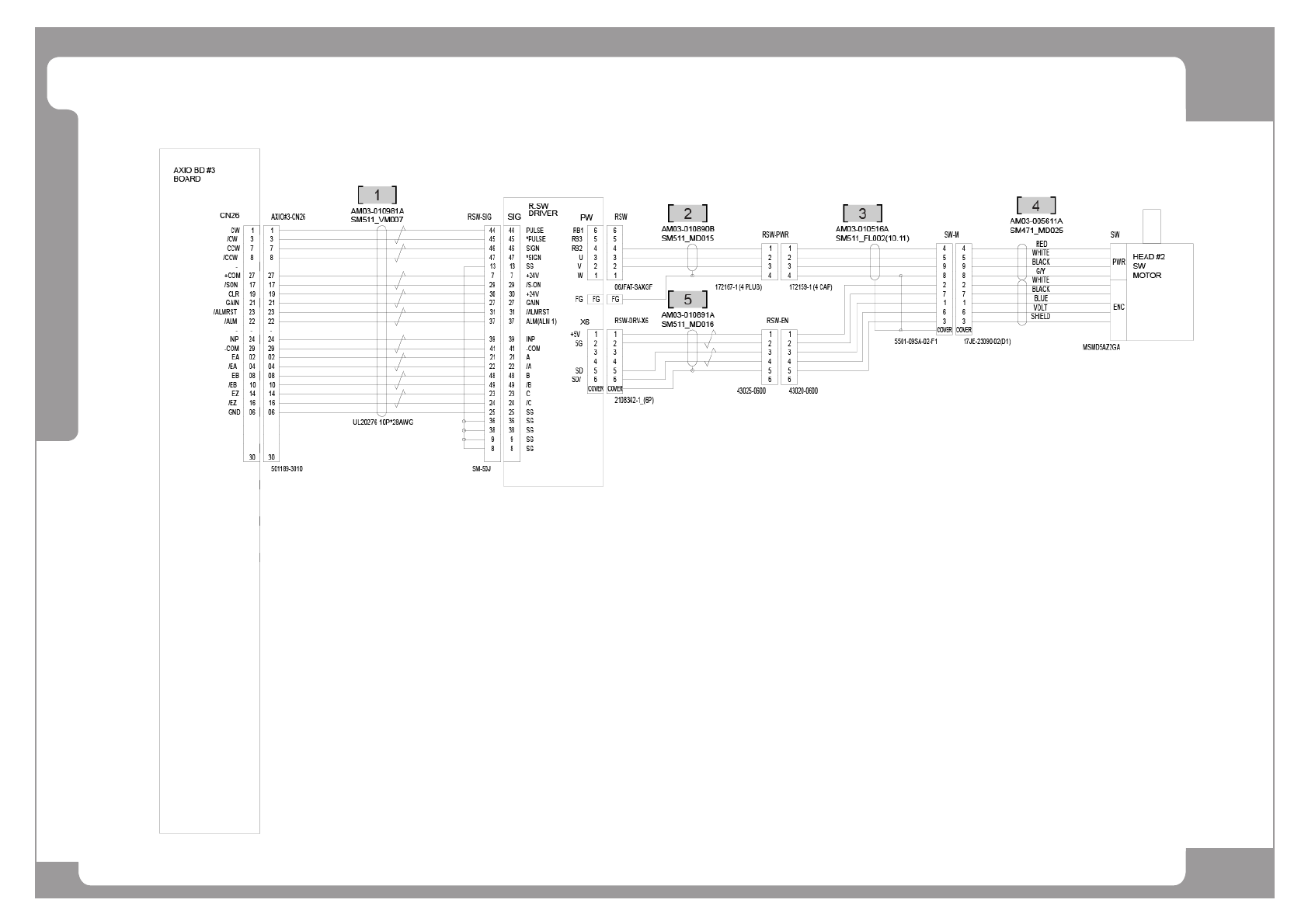

Motor IF Board (16/18)
Page
SAMSUNG TECHWIN
349
DECAN
L2
Motor IF Board (16/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-014690A CABLE ASSY-RSW_DRV_COMMAND 5 AM03-010981A
2 AM03-014687A CABLE ASSY-RSW_MOTOR_PWR 1 AM03-010890B
3 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
4 AM03-008019A CABLE ASSY-SWING MOTOR 1 AM03-005611A
5 AM03-010891A CABLE ASSY-RSW_MOTOR_ENC 1
Page
SAMSUNG TECHWIN
350
DECAN
L2

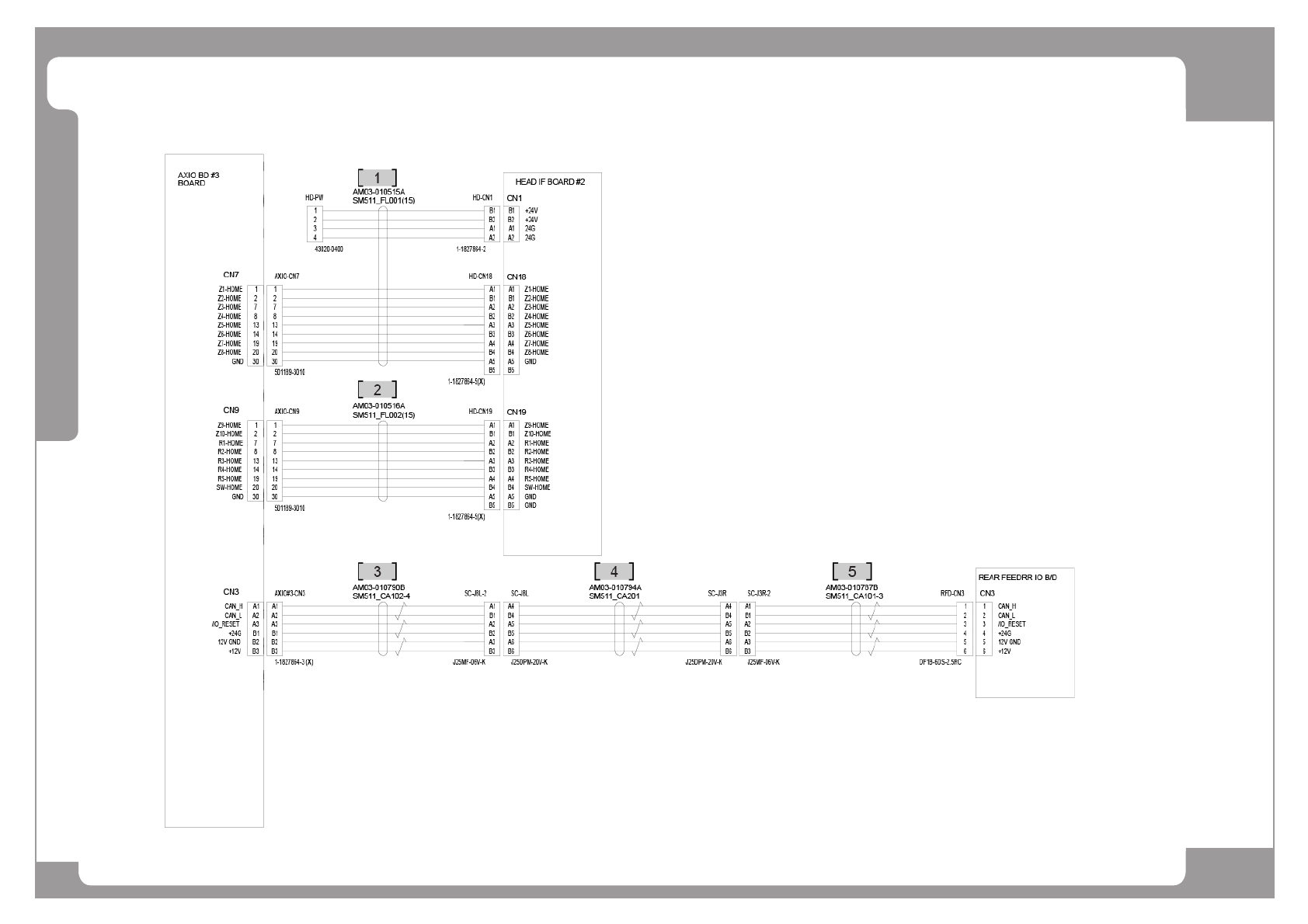

Motor IF Board (17/18)
