YG12F_mpl_je - 第31页

1 2 8 7 7 6 9 6 3 5 5 4 17 19 20 14 10 10 15 16 18 13 12 1 1 KKS-101 1 6 2 Nozzle Changer Nozzle

100%1 / 51
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
11
1
18
5
2
4
14
18
5
15
4
16
18
5
17
4
19
18
5
20
4
21
3
5
22
4
6
18
5
7
4
8
10
3
5
9
4
12
3
5
13
4
NOZZLE 301A ASSY. NOZZLE 302A ASSY.
NOZZLE 303A/314A ASSY. NOZZLE 304A/315A ASSY.
NOZZLE 306A/317A ASSY. NOZZLE 307A/318A ASSY.
NOZZLE 310A ASSY.
NOZZLE 311A ASSY.
NOZZLE 312A ASSY.
NOZZLE 313A ASSY.
23
25
26
24
OLD
Narrow adjacent Type
No. Part No. Part Name Q'ty Remarks
Rev. Rank Level
No. Part No. Part Name Q'ty Remarks
Rev. Rank Level
1
KHN-M7710-A4 NOZZLE 301A ASSY. 1 TYPE 301A
E
39
2
KHN-M7711-05 BODY, NOZZLE 301
1
E
40
3
KHN-M7713-00 SPRING 1 Black
E
41
4
KHN-M7714-00 PIN 1
E
42
5
KHN-M7715-00 CLIP 1
E
43
6
KHN-M7720-A3 NOZZLE 302A ASSY. 1 TYPE 302A
E
44
7
KHN-M7721-04 BODY, NOZZLE 302 1
E
45
8
KHY-M7740-A0 NOZZLE 303A/314A ASSY. 1
TYPE 303A/314A
E
46
9
KHY-M7741-00 BODY, NOZZLE 303/314 1
E
47
10
KHY-M7750-A0 NOZZLE 304A/315A ASSY. 1
TYPE 304A/315A
E
48
11
90990-17J013 O-RING 5
E
49
12
KHY-M7770-A0 NOZZLE 306A/317A ASSY. 1
TYPE 306A/317A
E
50
13
KHY-M7771-00 BODY, NOZZLE 306/317 1
E
51
14
KHY-M77A0-A0 NOZZLE 310A ASSY. 1 TYPE 310A
E
52
15
KHY-M77A1-00 BODY, NOZZLE 310 1
E
53
16
KHY-M7710-A4 NOZZLE 311A ASSY. 1 TYPE 311A
E
54
17
KHY-M7711-03 BODY, NOZZLE 311 1
E
55
18
KHN-M7713-10 SPRING 1 White
E
56
19
KHY-M7720-A3 NOZZLE 312A ASSY. 1 TYPE 312A
E
57
20
KHY-M7721-02 BODY, NOZZLE 312 1
E
58
21
KHY-M7730-A2 NOZZLE 313A ASSY. 1 TYPE 313A
E
59
22
KHY-M7731-02 BODY, NOZZLE 313 1
E
60
23
KHY-M7780-A0 NOZZLE 307A/318A ASSY. 1
TYPE 307A/318A
E
61
24
KHY-M7781-00 BODY, NOZZLE 307/318 1
E
62
25
KGS-M7742-00 LABEL,NOZZLE 1
E
63
26
90990-17J014 O-RING 5
E
64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
KKS-1201
6
1
Nozzle
Nozzle
1
2
8
7
7
6
9
6
3
5
5
4
17
19
20
14
10
10
15
16
18
13
12
11
KKS-1011
6
2
Nozzle Changer
Nozzle
No. Part No. Part Name Q'ty Remarks Rank Level No. Part No. Part Name Q'ty Remarks Rank Level

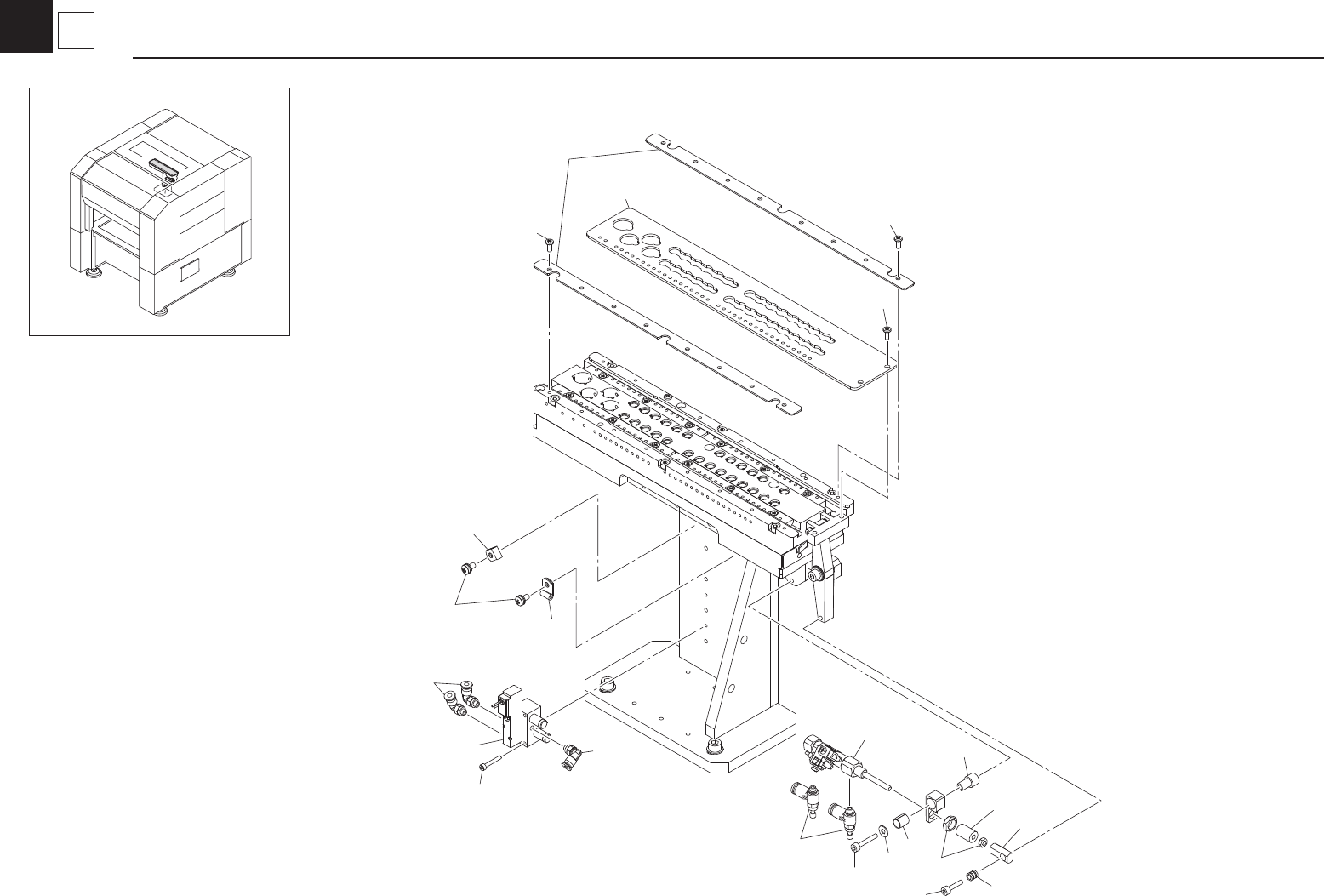

1 KKS-M9607-00 PLATE,CLAMP 1 /
Í
39
2
KHY-M9611-00
SHEET,GUIDE,CLAMP 2
/
Í
40
3 91312-03020 BOLT,HEX.SOCKET HEAD 2 41
4 KHN-M9619-50 VALVE 1 B
42
5 $TL4-M5M JOINT 3 /
43
6 98902-03008 SCREW BINDING HEAD 16 44
7 $NK-2N NYLON CLIP 2 /
45
8 97602-04308 SCREW,PAN HEAD W/W 2 46
9 92012-04010 BOLT BUTTON HEAD 2 47
10 KHY-M652G-10 CYLINDER AMC ASSY 1 B
Í
48
11 KHY-M9614-00 STOPPER,CYLINDER 1 /
Í
49
12 KHY-M9631-00 COLLAR,FLOATING 1 /
Í
50
13 KHY-M9632-00 BLOCK,FLOATING 1 /
Í
51
14 KHW-M916E-00 BUSH 1 /
Í
52
15 KHW-M916G-00 COLLAR, JOINT 1 /
Í
53
16 KHW-M916H-00 JOINT, CYL. 1 /
Í
54
17 $SC4-M5A SPEED CONTROLLER 2 /
55
18 91312-04016 BOLT HEX.SOCKET HEAD 1 M4X16 56
19 91312-04022 BOLT HEX.SOCKET HEAD 1 M4X22 57
20 92902-04200 WASHER PLAIN 3 58
21 59
22 60
23 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
KKS-1011
6
2
Nozzle Changer
Nozzle
