KKS-1011
3
3

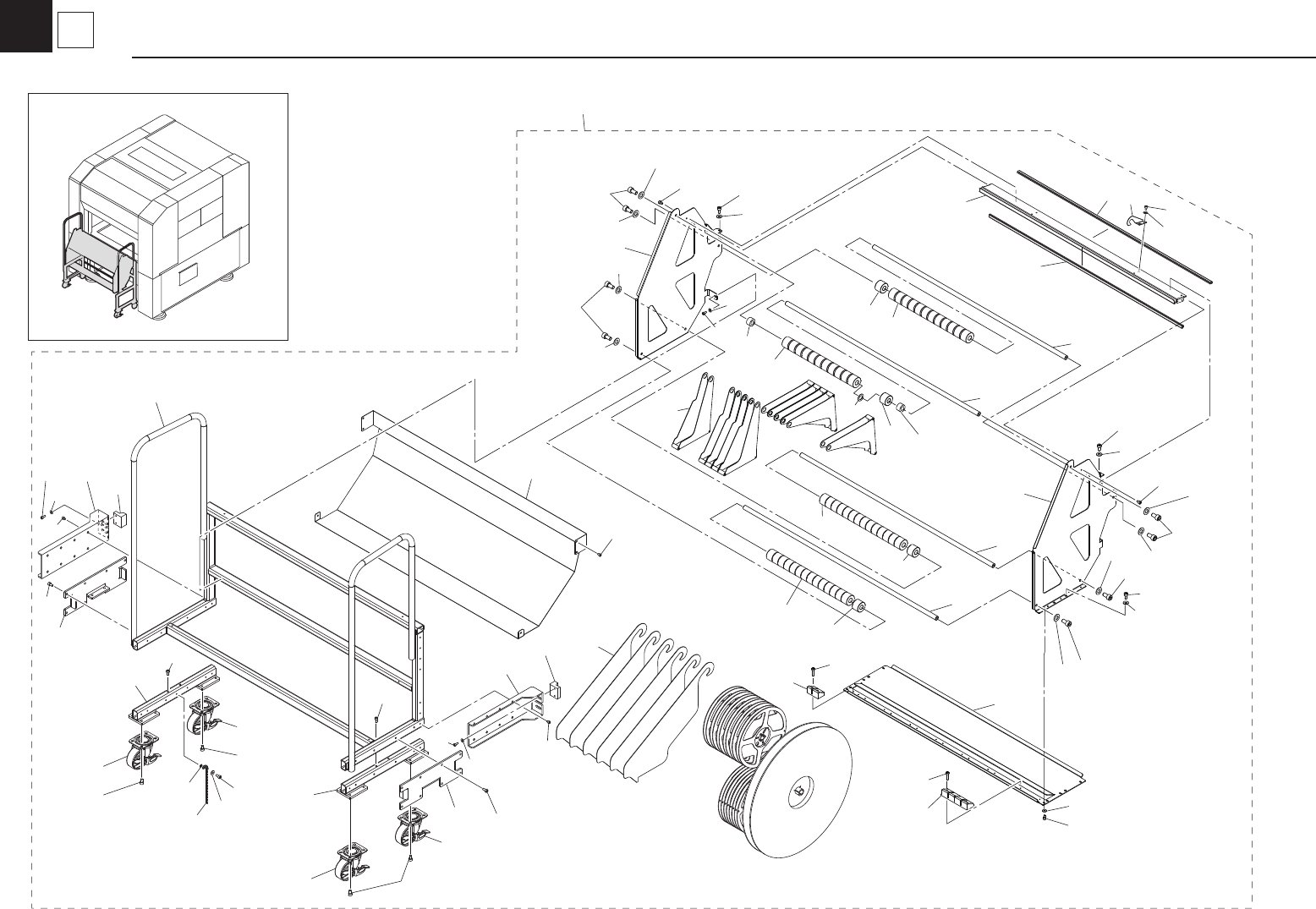

Reel Holder
Feeder Holder
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q'ty Remarks Rank Level No. Part No. Part Name Q'ty Remarks Rank Level
1
KJV-M3S00-00 REEL HOLDER 60 ASSY 1 /
39
92902-06600 WASHER PLAIN 8
2
KHY-M3R01-00
SIDE PLATE,R 1
/
40
3
KHY-M3R02-00 SIDE PLATE,L 1 /
41
4
KHY-M3S06-03 STOPPER PLATE 1 /
42
5
KHY-M3S0A-01 STAY,SHAFT 3 /
43
6
KHY-M3S07-01 TRIM 2 /
44
7
KHY-M3S08-00 UNDER COVER 1 /
45
8
KHY-M3S09-00 SHAFT,ROLLER 4 /
46
9
KHY-M3R10-02 REEL PUT 30 /
47
10
KHY-M3R14-00 COLLAR 2 /
48
11
KHW-M1385-00 SPACER 32 /
49
12
KHY-M3R15-00 ROLLER 98 /
50
13
KHY-M3S15-00 ROLLER 2 2 /
51
14
KHY-M3R16-00 PARTITION 15 /
52
15
KHY-M3R22-00 GUIDE,PARTITION 7 /
53
16
KHY-M3S22-00 GUIDE 2,PARTITION 1 /
54
17
KHY-M3R23-00 COLLAR,PARTITION 29 /
55
18
KHY-M3S23-00 COLLAR 2,PARTITION 1 /
56
19
91312-06012 BOLT HEX.SOCKET HEAD 8 M6X12
57
20
91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8
58
21
91312-03014
BOLT,HEX.SOCKET HEAD 16 M3X14
59
22
91312-03005 BOLT HEX.SOCKET HEAD 12 M3X5
60
23
92902-04200 WASHER PLAIN 10
61
24
92902-03200 WASHER PLAIN 8
62
25
KJV-M3S21-00 FRAME 1,REEL HOL. 1 /
63
26
KJV-M3S22-00 FRAME 2,REEL HOL. 2 /
64
27
KJV-M3S23-00 FRAME 3,REEL HOL. 2 /
65
28
KJV-M3S24-01 STAY,REEL HOL. 2 /
66
29
KJV-M3S25-00 GUIDE,REEL HOL. 2 /
67
30
KJV-M3S26-00 GUIDE 1,TAPE 1 /
68
31
KHY-M373C-10 CHAIN 1 /
69
32
KHY-M374C-00 CASTER 4 /
70
33
91312-06010 BOLT HEX.SOCKET HEAD 16 M6X10
71
34
91312-05010 BOLT HEX.SOCKET HEAD 20 M5X10
72
35
91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
73
36
91312-04006 BOLT HEX.SOCKET HEAD 10 M4X6
74
37
92902-04600 WASHER PLAIN 4
75
38
90172-00J040 WASHER,EXTL.TOOTHED 1
76
KKS-1011
3
3
Reel Holder
Feeder Holder
2
4
1
3
3
5
6
7
9
8
13
13
9
13
9
12
5
6
9
9
12
8
10
14
11
15
15
13
9
10
14
3
5
18
19
17
19
11
11
6
9
13
9
10
14
16
20
16
16
16
20
Front Left
FIX-24
FIX-60
Front Right
2
21
21
1
3
3
5
6
7
9
8
13
13
9
13
9
12
7
5
6
9
9
13
9
12
8
9
10
14
13
11
11
15
15
13
9
10
14
16
16
16
16
Rear
KKS-1011
3
4
Feeder Set Sensor
Feeder Holder
