Service manual vacuum check with closed nozzles
Page
110 from 136

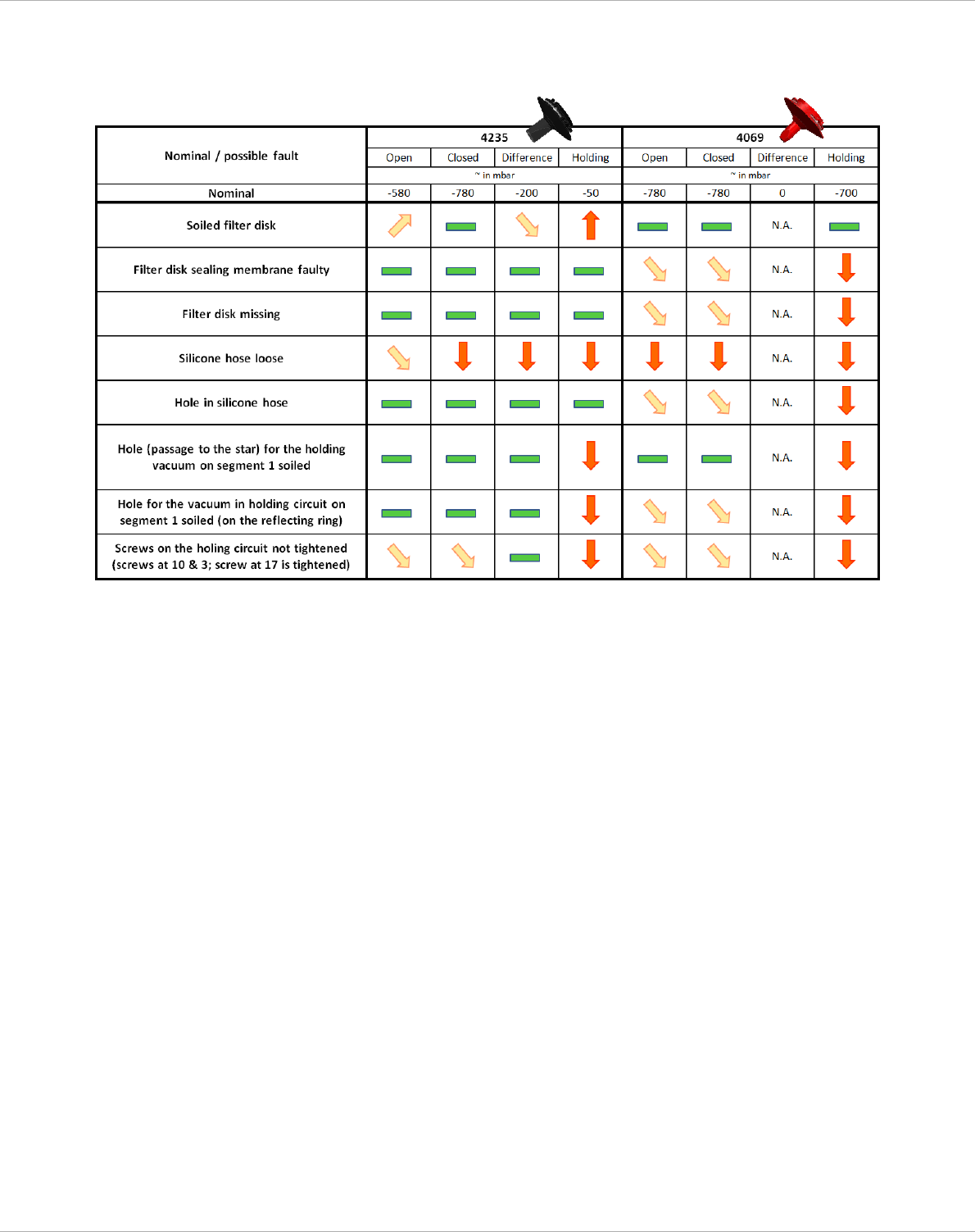

4.2.7.2 Overview of possible causes and effects
Service manual vacuum check with closed nozzles
Page
111 from 136

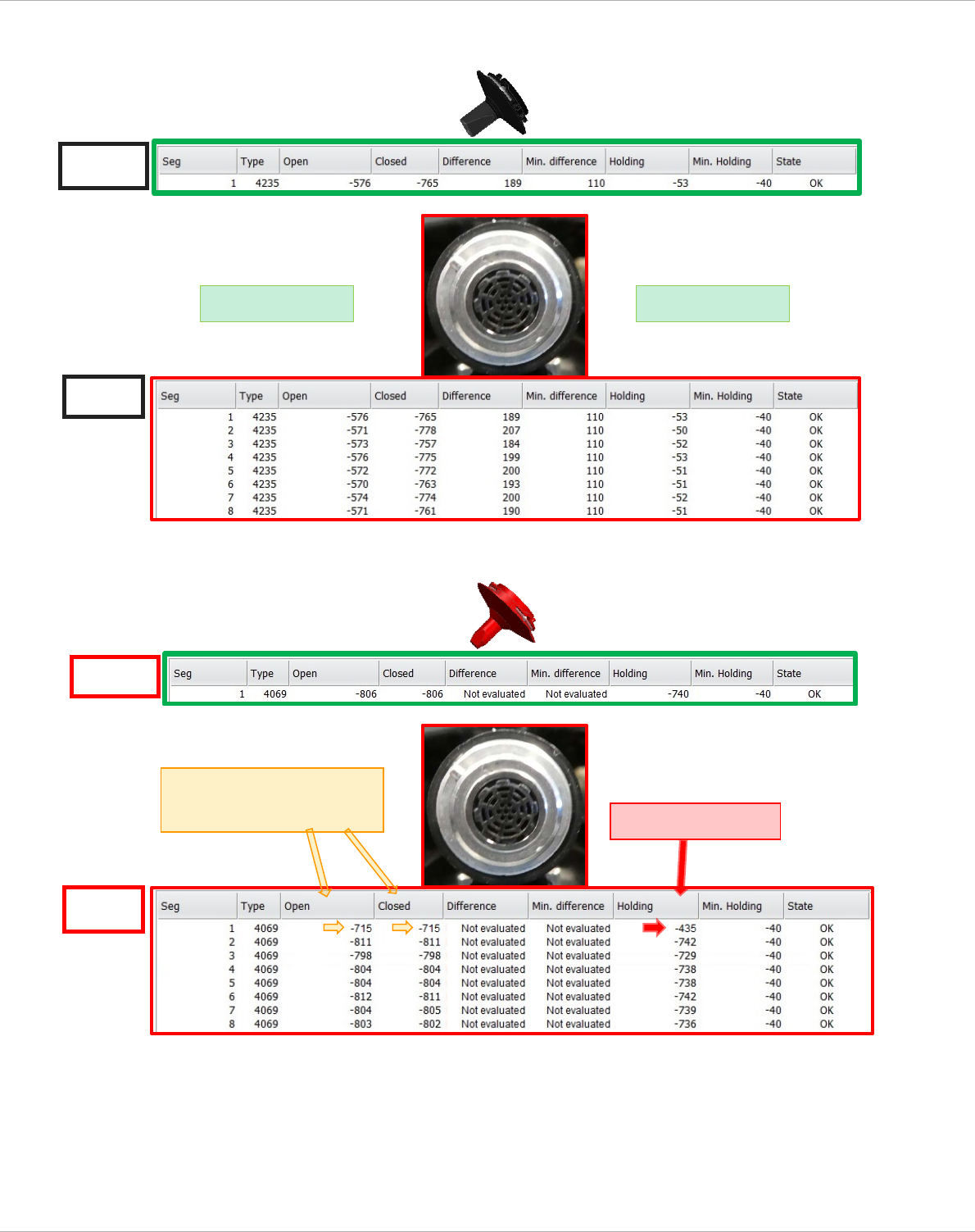

4.2.7.3 Measures with Manipulation
4.2.7.3.1 Measure with covered (soiled) filter disk.
a.) with nozzles type 4235
b.) with nozzles type 4069
NOM
ACT
NOM
ACT
Holding > Nominal
Open-value > Nominal
No features
No features
Service manual vacuum check with closed nozzles
Page
112 from 136
4.2.7.3.2 Measurement with sealing membrane defect.
a.) With nozzles type 4235
b.) with nozzles type 4069
ACT
NOM
ACT
Open-value < Nominal
Closed-value < Nominal
No features
Holding < Nominal
NOM
No features
