Service manual vacuum check with closed nozzles
Page
112 from 136
4.2.7.3.2 Measurement with sealing membrane defect.
a.) With nozzles type 4235
b.) with nozzles type 4069
ACT
NOM
ACT
Open-value < Nominal
Closed-value < Nominal
No features
Holding < Nominal
NOM
No features
Service manual vacuum check with closed nozzles
Page
113 from 136

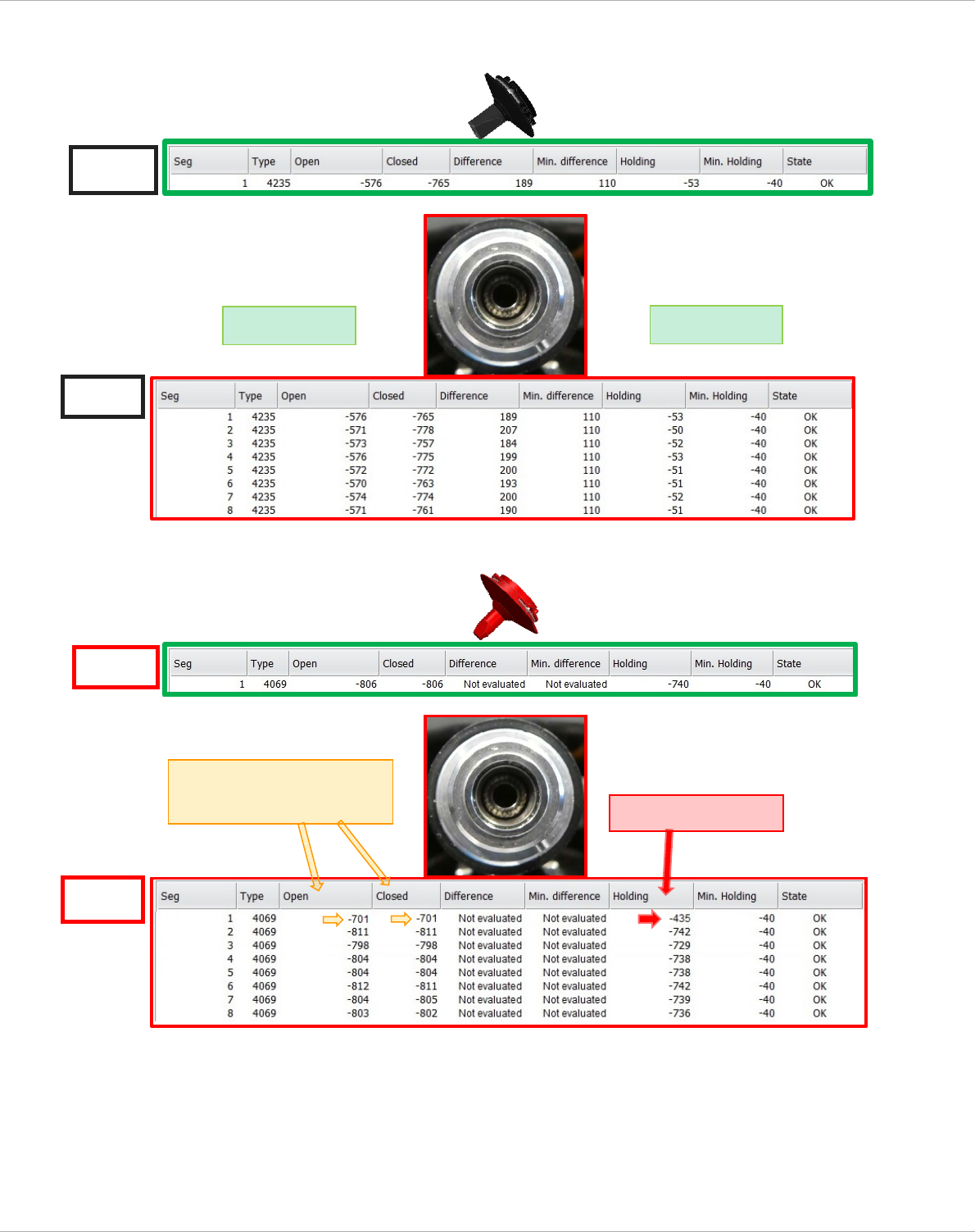

4.2.7.3.3 Measurement without filter disk.
a.) with nozzles type 4235
b.) with nozzles type 4069
NOM
ACT
ACT
No features
Open-value < Nominal
Closed-value < Nominal
Holding < Nominal
NOM
No features
Service manual vacuum check with closed nozzles
Page
114 from 136

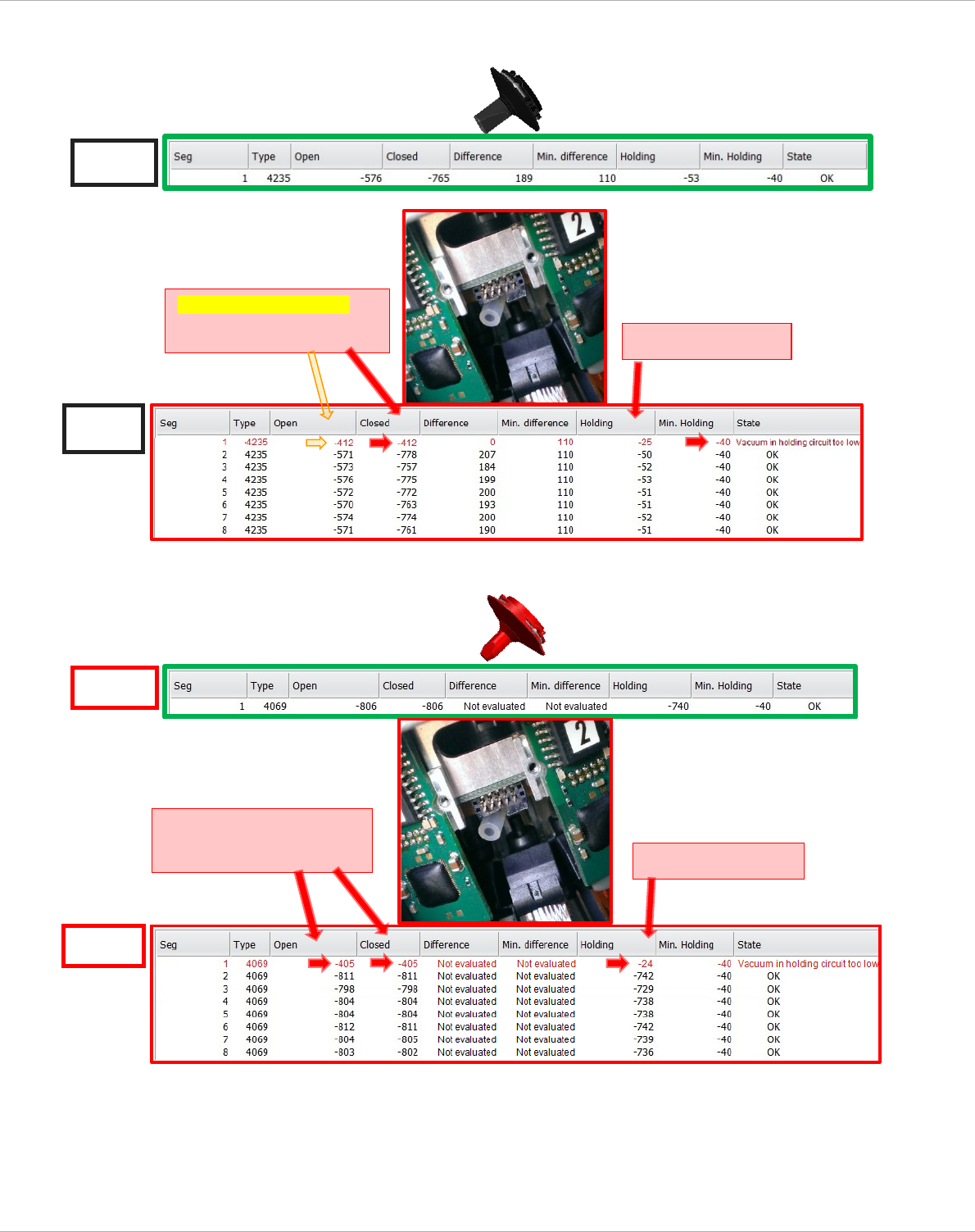

4.2.7.3.4 Measurement without vacuum hose (silicone hose disconnected)
a.) with nozzles type 4235
b.) with nozzles type 4069
NOM
ACT
ACT
Open-value < Nominal
Closed-value < Nominal
Holding < Nominal
Open-value < Nomial
Closed-value < Nominal
Holding < Nominal
NOM
