Service manual vacuum check with closed nozzles
Page
117 from 136
4.2.7.3.7 Hole for the air kiss in holding circuit on segment 1 soiled.
a.) With nozzles type 4235
b.) With nozzles type 4069
ACT
NOM
ACT
Holding < nominal
Holding < nominal
Open value < nominal
Open value < nominal
NOM
No features
Service manual vacuum check with closed nozzles
Page
118 from 136

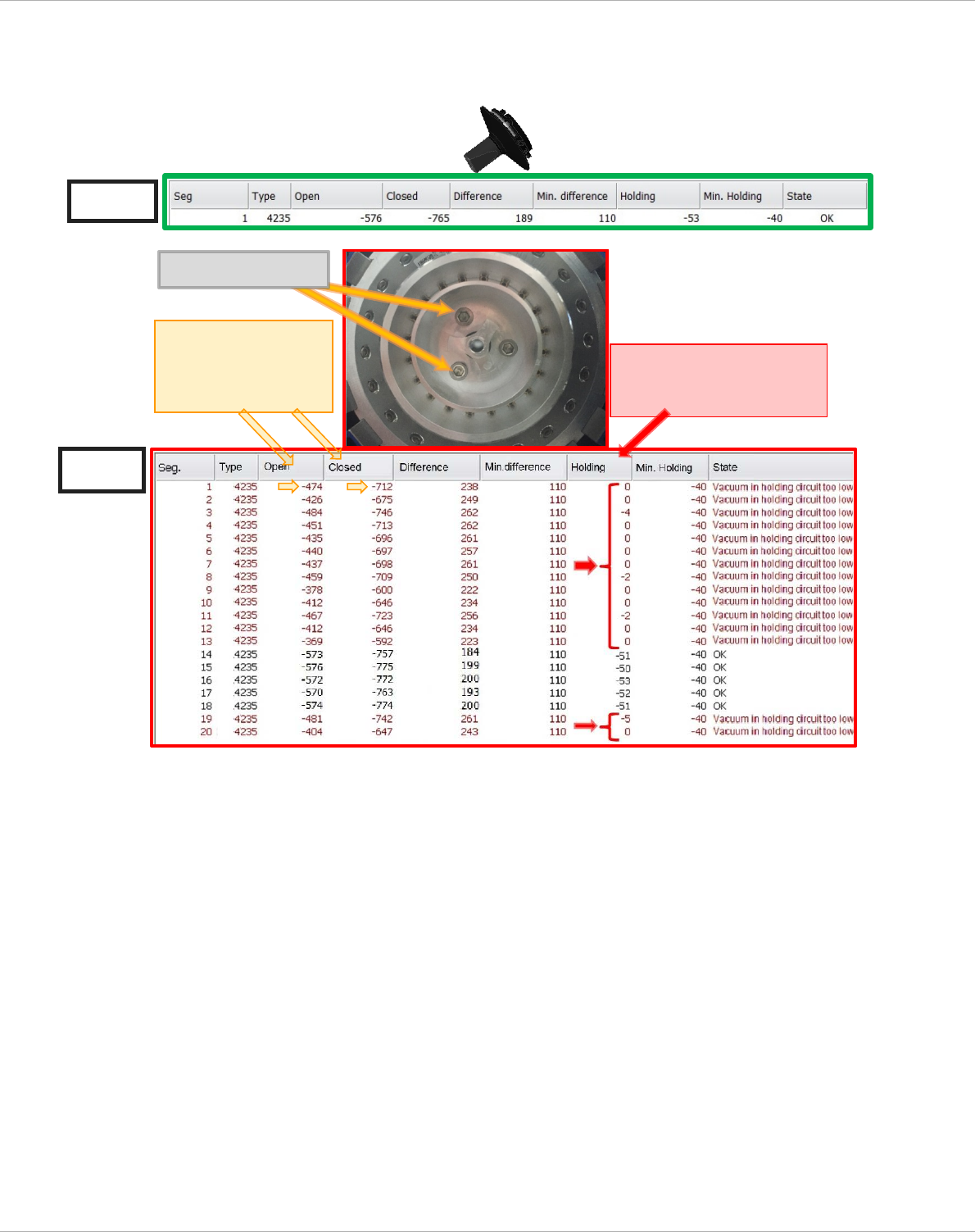

4.2.7.3.8 2 screws on the holding circuit not tightened (screws at 10 & 3; screw at 17 is
tightened).
a.) With nozzles type 4235
ACT
NOM
in the vicinity of the loose
screws
Holding circuit < nominal
in the vicinity of the
loose screws
open < nominal
closed < nominal
Loose Screws
Service manual vacuum check with closed nozzles
Page
119 from 136

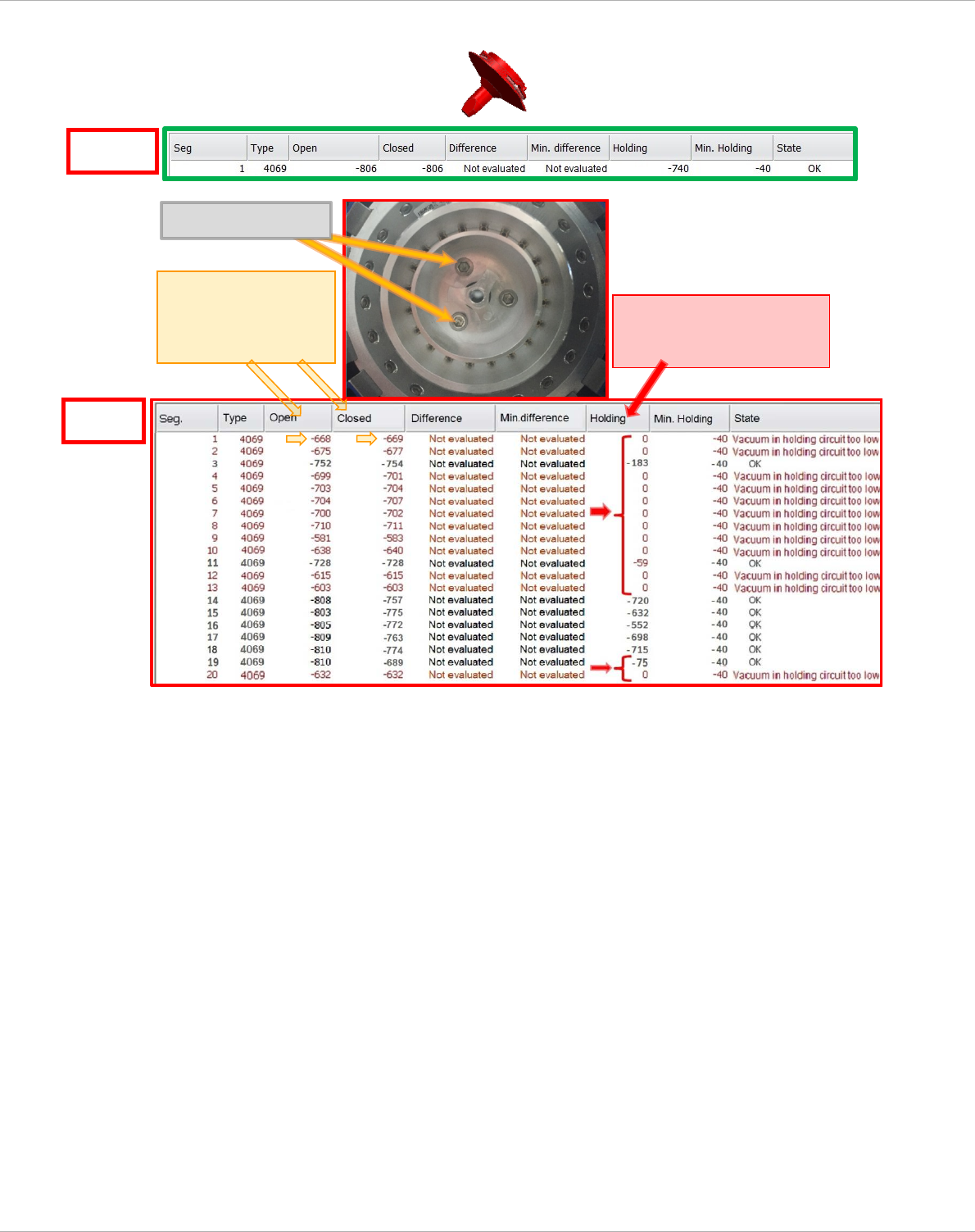

b.) With nozzles type 4069
NOM
ACT
in the vicinity of the
loose screws
open < nominal
closed < nominal
Loose Screws
in the vicinity of the loose
screws
Holding circuit < nominal
