Service manual vacuum check with closed nozzles
Page
131 from 136

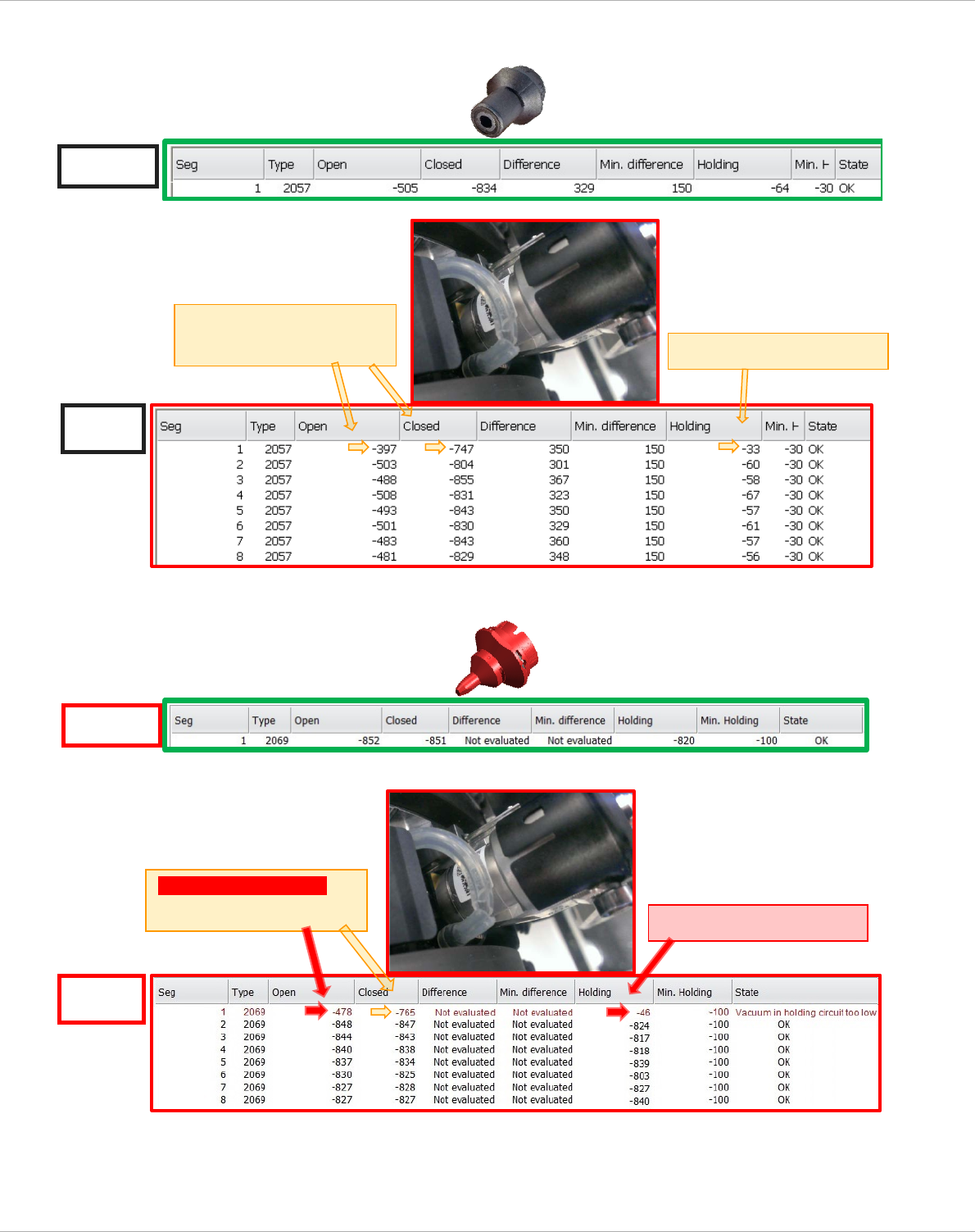

4.3.2.3.5 Measurement with hole (tear) in silicone hose.
a.) With type 2057 nozzles
b.) With type 2069 nozzles
ACT
ACT
Holding circuit < nominal
NOM
NOM
Open value < nominal
Closed value < nominal
Holding circuit < nominal
Open value < nominal
Closed value < nominal
Service manual vacuum check with closed nozzles
Page
132 from 136
4.3.2.3.6 Measurement with obstructed silicone hose, e.g. component has been drawn in
(
Simulation: Cross-section reduced with cable tie).
a.) With type 2057 nozzles
b.) With type 2069 nozzles
ACT
ACT
NOM
NOM
Open value >
Holding circuit > nominal
No features or only
slight features
No features or only
slight features
Service manual vacuum check with closed nozzles
Page
133 from 136

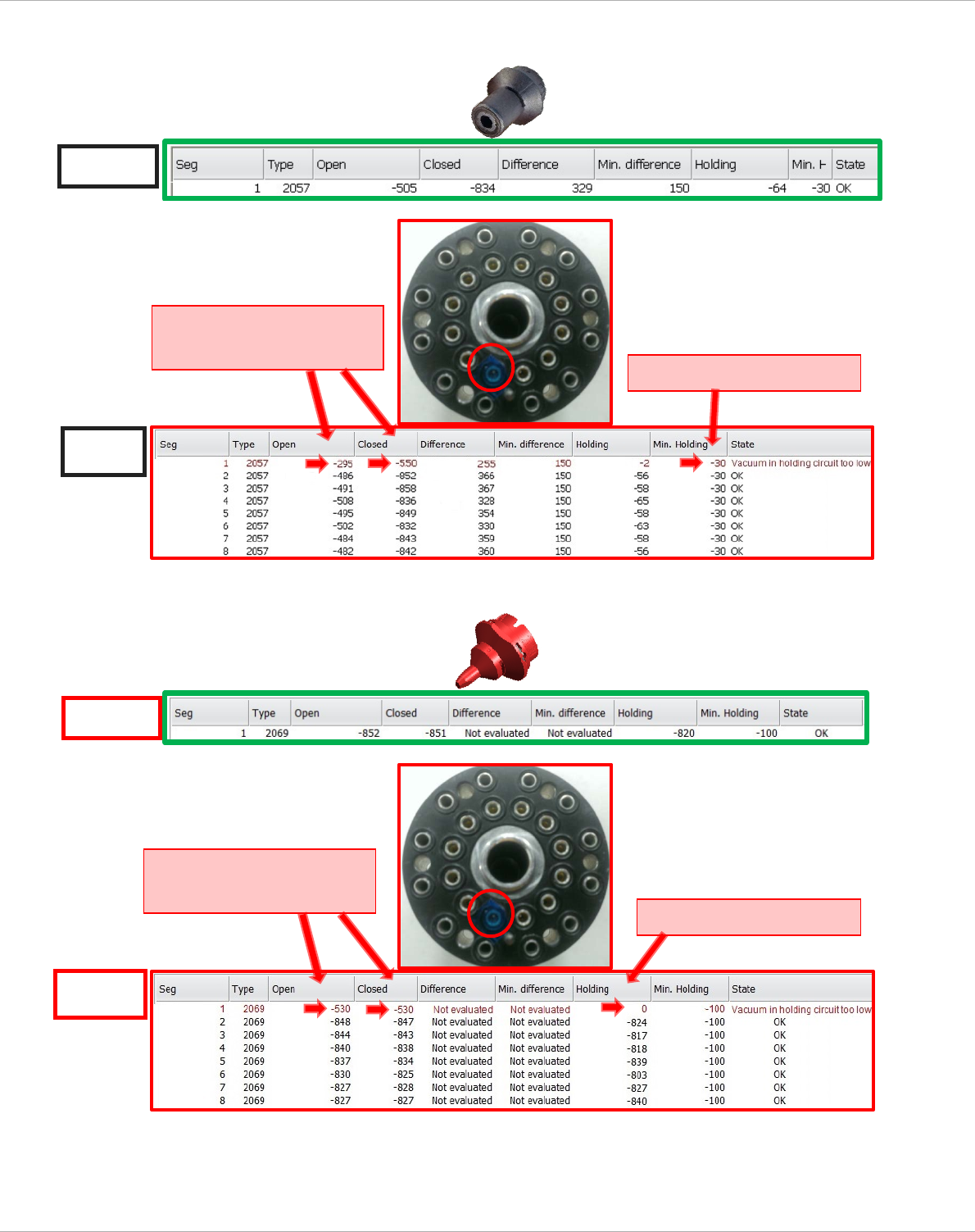

4.3.2.3.7 Hole for the air kiss in holding circuit soiled.
a.) With type 2057 nozzles
b.) With type 2069 nozzles
ACT
Holding circuit < nominal
Open value < nominal
Closed value < nominal
ACT
Holding circuit < nominal
Open value < nominal
Closed value < nominal
NOM
NOM
