External Power Supply Unit for the HS-50 / HS-60 / D4 Component Table User Manual
03/2006 Edition 2.1 Safety Instructions
19
2 User Manual: External Power Supply
Unit for the SIPLACE HS-50 / HS-60 /
D4 Component Table
2.1 Safety Instructions
DANGER
Make sure that no one is working on the connected component trolley when you switch on the
power supply.
The external power supply may only be connected to the component trolley if it has been fully
docked out of the placement machine and all electrical connections to the placement machine
have been disconnected.
The device must only be used for its intended purpose, the supply of the component trolley of
SIPLACE HS-50 / HS-60 / D4!
The device must not be opened and manipulated.
Before opening the device remove the power plug from the power outlet!
2
DANGER 2
: Before making the connection to the mains, check whether the fuses installed are the correct
ones and whether the correct voltage is set - depending on what main voltage is available (see
Chapter 2.5).
2
User Manual External Power Supply Unit for the HS-50 / HS-60 / D4 Component Table
2.2 Scope of Delivery 03/2006 Edition
20
2.2 Scope of Delivery
2

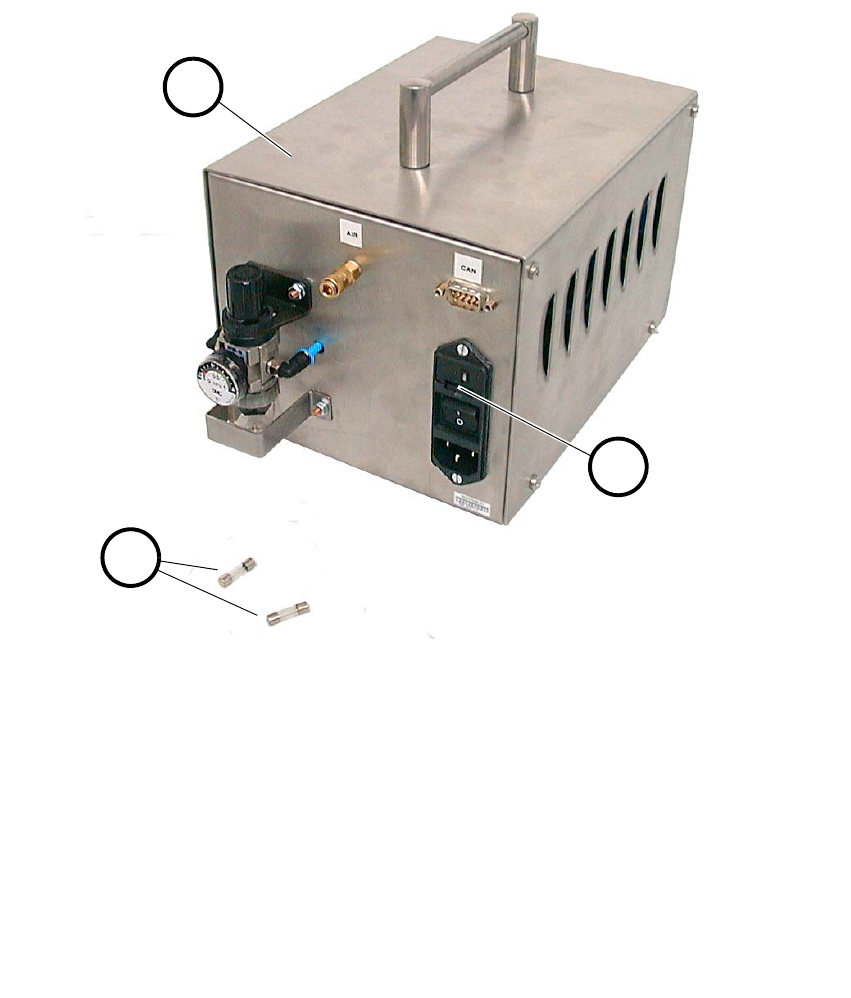

Fig. 2.2 - 1 Scope of Delivery of the External Power Supply Unit
The external power supply unit encompasses:
2
* not shown
1 operational unit for 230V AC (W x D x H = 180 x 360 x 210 mm) Item no: 00351572-xx
1 power supply cable* 230 V AC (EU 3 x 0.75 mm
2
, L = 2 m) Item no: 00308240-xx
1 power supply cable * 115 V AC (US 3x18 AWG, L = 2 m) Item no: 00351611-xx
2 integrated 1,25 A medium time-lag fuses (for 230 V AC) Item no: 00351612-xx
1 supplied pneumatic system connection coupling* Item no: 00351963-xx
2 supplied 2.5 A medium time-lag fuses (for 115 V AC) Item no: 00304379-xx
1
4
6
External Power Supply Unit for the HS-50 / HS-60 / D4 Component Table User Manual
03/2006 Edition 2.3 Overview
21
2.3 Overview
An external power supply unit is employed to power an HS-50 / HS-60 / D4 component table, in-
dependent of the placement machine.
The unit can be adjusted to the existing main voltage, 230 V or 115 V, from the outside, without
opening. As delivered, the unit is equipped for a main voltage of 230 V AC.

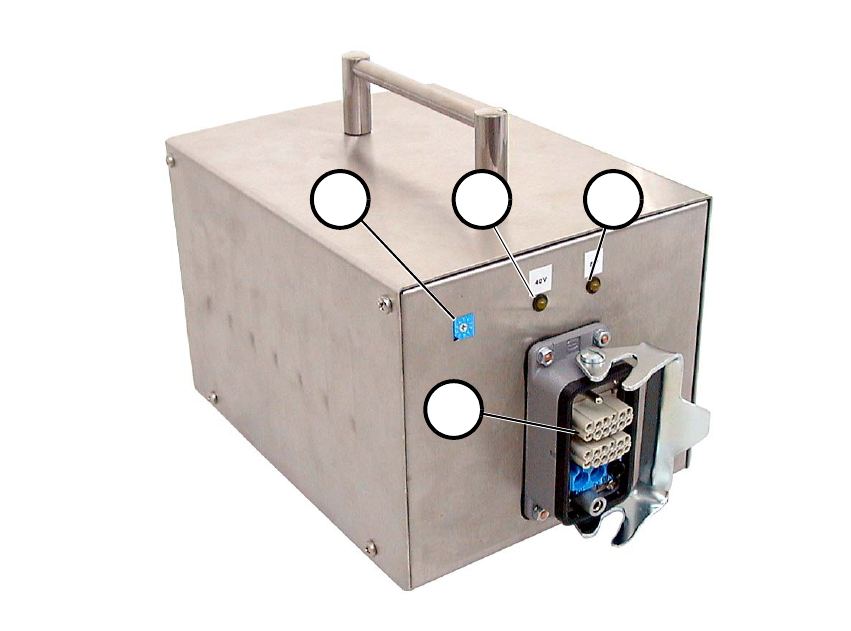

Fig. 2.3 - 1 Front View
(1) Table location switch
(2) Pilot lamp 40 V
(3) Pilot lamp 8 V
(4) Multifunction plug for component table
2
4
21 3
