User Manual External Power Supply Unit for the HS-50 / HS-60 / D4 Component Table
2.11 Servicing Work If the Power Supply Unit Fails 03/2006 Edition
30
2.11.2.1 Checking the fuses on the transformer:
The two fuse inserts are located directly on the transformer (T5,0H terminal 31 and T2,0L terminal
34). 2
: Check the two fuses and replace them if necessary.
DANGER 2
: Remember to close the power supply housing correctly before using the power supply unit.
2
2
2
2
Terminals
External Power Supply Unit for the HS-50 / HS-60 / D4 Component Table User Manual
03/2006 Edition 2.11 Servicing Work If the Power Supply Unit Fails
31
2.11.2.2 Checking the fuses on the flat module or PCB:

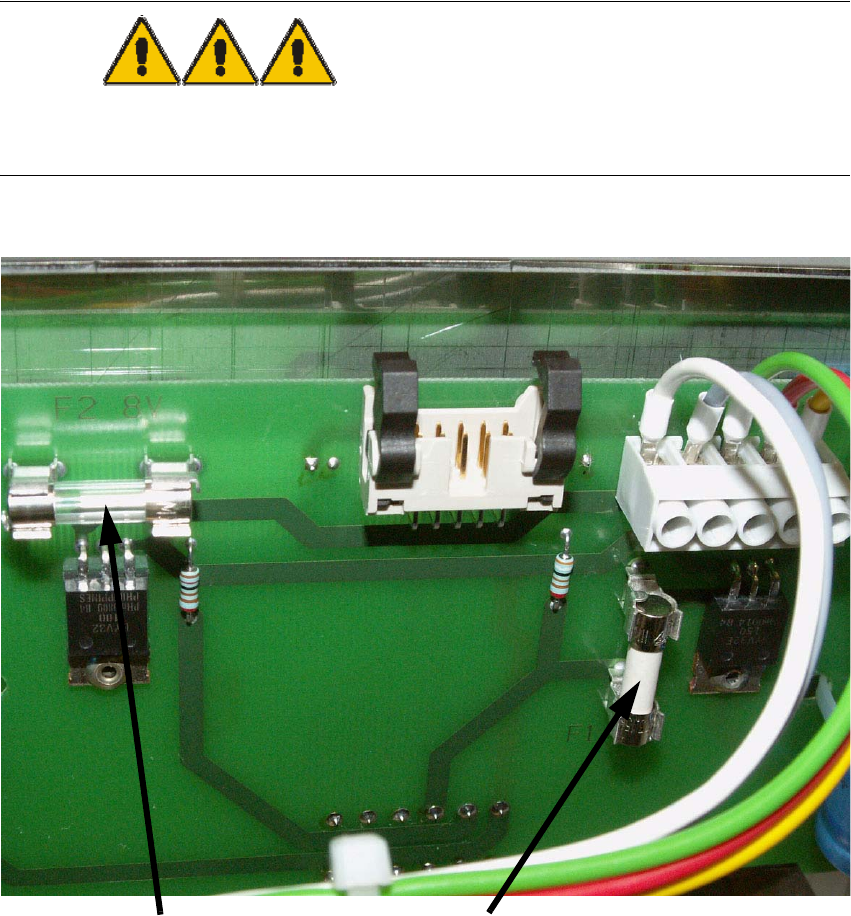

The two fuses can be found on the flat module on the front of the device (fuse F1: 3.15A medium
time-lag and fuse F2 : 0.5A medium time-lag). 2
: Check the two fuses and replace them if necessary.
DANGER 2
: Remember to close the power supply housing correctly before using the power supply unit.
2
2
2
2
Fuse 1
Fuse 2
User Manual External Power Supply Unit for the HS-50 / HS-60 / D4 Component Table
2.12 Technical Data 03/2006 Edition
32
2.12 Technical Data
2.12.1 Compressed Air
Input air pressure: max. 10 bar (= 1000 kPa)
Output pressure: 2.5 bar (= 250 kPa)
2.12.2 Mains connection
2
2.12.3 Weight / Dimensions
Weight: 8.3 kg
Dimensions: W x D x H = 180 x 360 x 210 mm
Voltage:
230 / 115 VAC +/- 5% (adjustable with voltage selector)
Frequency:
50...60 Hz
Power:
240 VA
Fuse protection:
1,25 A MT (medium-time-lag) / 230 VAC
2,5 A MT (medium-time-lag) / 115 VAC
