19 Clear product management with offline programming Intuitive software operation with touch-screen surface Clear product management with oine programming Parameter transparency through module groupings Easy adaption du…
18
1.
2.
3.
4.
5.
6.
ViCON
VisionX
1. Alarms
The top area of the screen gives you a clear
overview where you can view, interpret and
edit alarm messages.
4. Machine view
The machine view offers an overview of the
modular construction of your system, the
current loading situation and the status of the
process zones.
2. Favourites bar
In the favourites bar you can view selected
values. This then appears on the main screen
and on every page in the dened position.
5. Options
Machine options can be set depending on
the system equipment. For this there are
up to ten different options available for your
manufacturing process.
3. Status bar
Colour-contrasting markings in the status
bar provide you with information on the
operating mode of the system.
6. Display area
The display area shows you all prole
parameter actual values, e.g. temperature,
lter or system power consumption.
19
Clear product management with offline programming
Intuitive software operation with touch-screen surface
Clear product management with oine programming
Parameter transparency through module groupings
Easy adaption due to favourites bar
Multilingual software
Innovative software
User-friendly and easy operation
With the ViCON Rehm offers straightforward software for
the VisionX-Series, boasting intuitive operation with its
touch-screen surface.
All messages, commands and parameters can be viewed
at one glance on the main screen using machine view. With
a number of features including a freely congurable favour-
ites bar, the structured grouping of parameters or individual
process tracking and documentation ViCON provides you with
optimum assistance in your production processes.
While developing the software Rehm experts have rened many
aspects including product management. The creation of new
products or the copying of certain properties in parallel with
production on the machine is enabled. The parameters for new
creations are directly selectable, meaning that the production
sequence can progress faster and without any disruption.
As well as that, you can immediately recognise which action
mode the system is in from the operating status. Errors are
easier to differentiate and alarm messages can be evaluated
quickly and reliably.
Another plus of the ViCON is dening user administration.
Through the assignment of specic user roles each user has
exactly those rights activated that he or she needs for opera-
tion and work on the system – without any rigid hierarchy.
VisionX-Series | Software
20

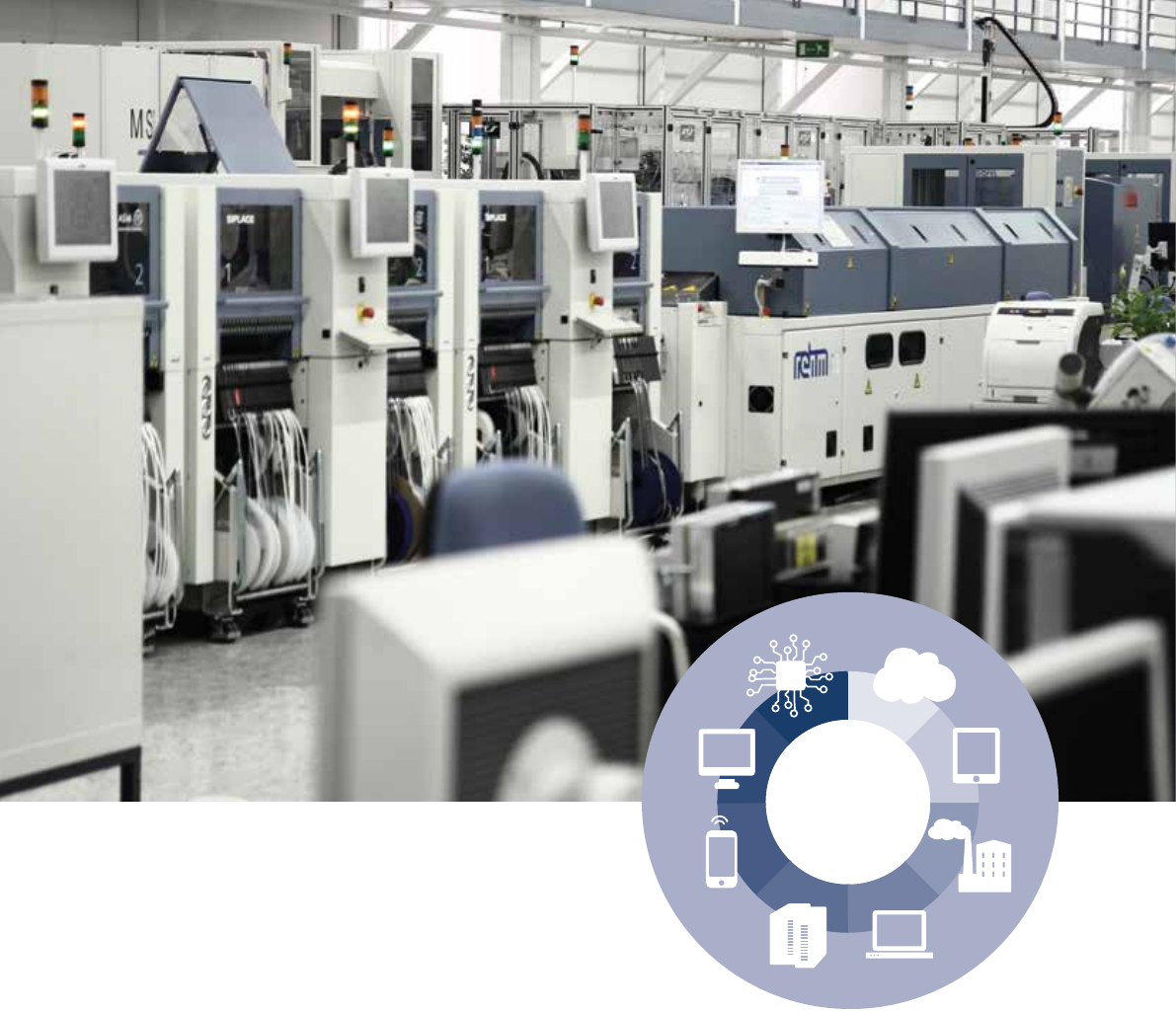

Industry 4.0
Intelligent Software Solutions
Software solutions from Rehm allow the reliable control and monitoring of systems from
the VisionX-Series.
The software components are consisting of monitoring tools and various modules, each of
which completes its own individual task. Master software compiles the data and evaluates
it, for instance in order to keep the specied parameters constant for the respective manu-
facturing prole. The modular system can be assembled into individualized packages and
matched to the customer’s respective requirements. Custom tailored master software is
available for each system type.
4.0
Industry
