2 SPECIFICATIONS Item Specifications Mounting angle 0 ° to 359 ° (It can be set in increments of 0.01°.) Mounting range Refer to the Reference Manual. Board flow direction Refer to the Reference M…
1
“Use of this machine:
This machine is designed and constructed to be used for placing electric and electronic components on PCB.
This machine shall be used for this purpose only.
It shall not be used for any other purpose.”
“Operation of this machine:
This machine shall be operated by professional, specially trained operators.
It shall not be operated by non-professional, not specially trained operators.
Regarding the training course, please contact Panasonic Factory Solutions Co., Ltd. or PFSE.”
Machine was manufactured by: Panasonic Factory Solutions Co., Ltd.
441-13, Nagahasu, Tateishi-machi, Tosu-city, Saga, Japan
Phone number: 81-942-84-2644
Fax number: 81-942-84-2636
For Service and Supply of Spares in Europe
you may contact Panasonic Europe:
Continental Europe
PFSE
Panasonic Factory Automation Europe
Winsbergring 15
22525 Hamburg
Germany
Phone number:
0049-(0)40-85386-321
Fax number:
0049-(0)40-85386-332
United Kingdom
PFSE
Panasonic Factory Solutions Europe
Panasonic House,Willoughby Road
Bracknell, Berks. RG12 8 FP
Phone number:
0044-(0)1344-853267
Fax number:
0044-(0)1344-425970
Year: 2008
EJM2A-E-PLA00-A01-03
2
SPECIFICATIONS
Item
Specifications
Mounting angle
0
°
to 359
°
(It can be set in increments of 0.01°.)
Mounting range
Refer to the Reference Manual.
Board flow direction
Refer to the Reference Manual.
Control system
Microcomputer system
External memory
Data is saved in PT. (Approximately 1 MB is required for saving a piece of data, depending
on the hard disk space of PT.) One type per 3.5-inch floppy disk
Program data
∗
1
Point count: Max. 10000 points
Machine body
Normal service source: Three-phase 200
±
10 VAC or 400
±
20 VAC
Frequency: 50/60 Hz
Peak current
value during
operation
10 A
Rated voltage 200 VAC: Measured based on our aging data
Take this into account when choosing the primary power supply
AVR (Stabilized power supply), etc.
(The peak current value varies depending on the operation data.)
Power source
Power supply
for HUB
∗
3
Single-phase 100 VAC to 240 VAC
Machine body
1.3 kVA
Rated capacity
Power supply
for HUB
∗
4
140 VA
Supply air pressure
0.49 MPa to 0.78 MPa (Working air pressure: 0.49 MPa to 0.54 MPa)
Supply air volume
150 L/min (A.N.R)
Outside dimension
1260 mm (W)
×
1695 mm (D)
×
2000 mm (H) (Including the three-color signal tower)
Mass
∗
2
1150
kg
(Standard configuration, excluding a collectively changing truck)
Environmental
condition
Temperature: 10
°
C to 35
°
C
Humidity: 25% RH to 75% RH (No condensation)
Transportation and
storage condition
Temperature:
−
20
°
C to 60
°
C
Humidity: 75% RH or less (No condensation)
Altitude
1000 m or less, above sea level
Noise
< 70 dB (A)
∗
1: Data is created by PT.
This machine can only modify some data.
∗
2: Mass of the main body excluding the optional units
∗
3: The power supply for HUB is an option. This power supply is required when you wish to
communicate with PT while the main power supply is OFF.
∗
4: A HUB controller is not standard equipment. You must either provide it by yourself or arrange
the purchase as an option.
EJM2A-E-PLA00-A01-00
3
关于本机器的使用
:
本机器是为了在基板上贴装电子元件而设计、制造的。
请将本机器用于上述用途。
请不要用于其它用途。

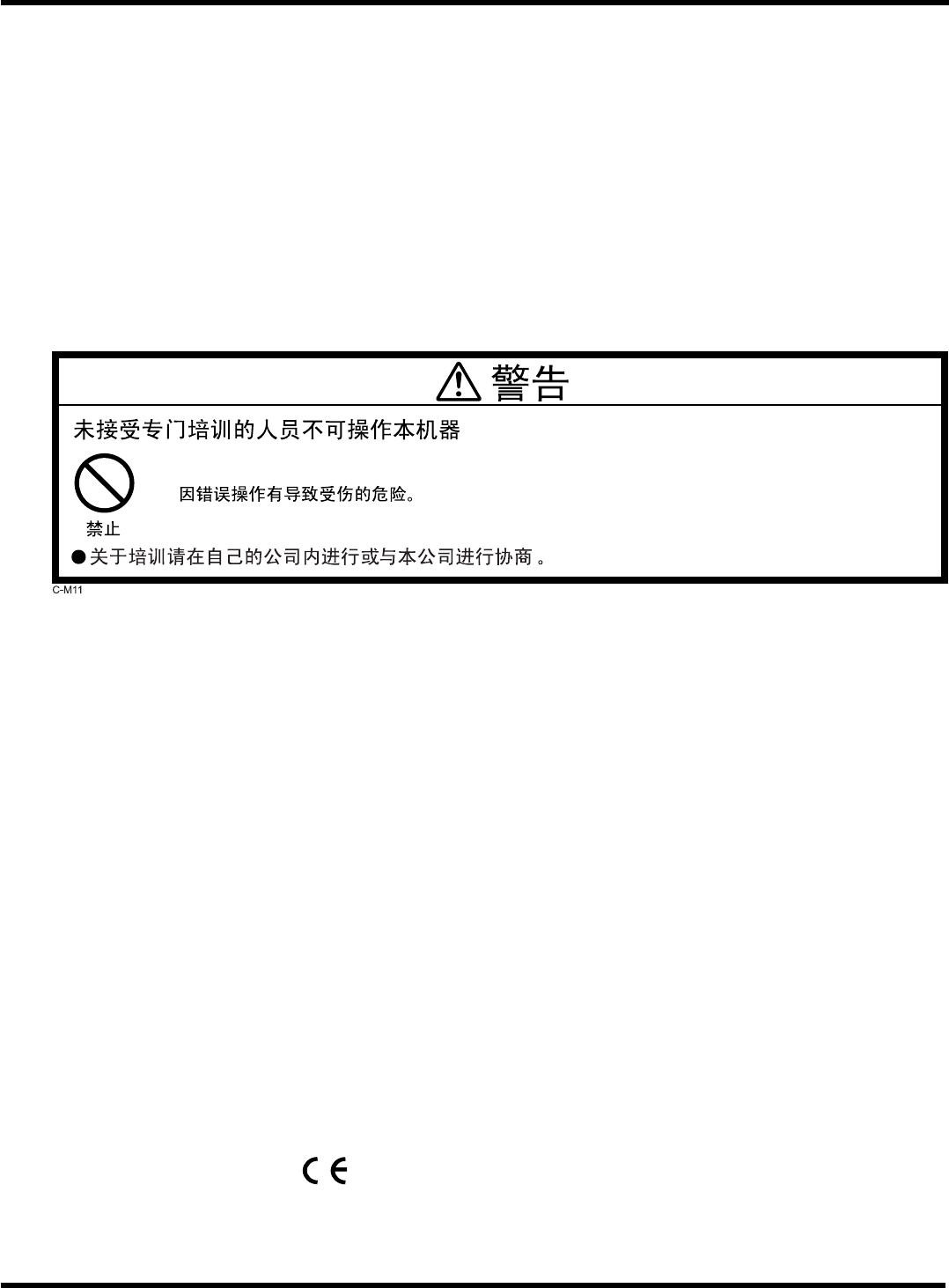

关于本机器的操作
:
操作本机器的人需接受专门的培训。
未受过培训的人员请勿进行操作。
关于培训，请咨询松下生产科技株式会社或
PFSE
。
制造商
:
松下生产科技株式会社
佐贺县鸟栖市立石町长莲
441-13
电话
:0942-84-2644
FAX:0942-84-2636
For Service and Supply of Spares in Europe
you may contact Panasonic Europe:
Continental Europe
PFSE
Panasonic Factory Solutions Europe
Winsbergring 15
22525 Hamburg Germany
Phone number: 0049-(0)40-85386-321
Fax number: 0049-(0)40-85386-332
United Kingdom
PFSE
Panasonic Factory Solutions Europe
Panasonic House,Willoughby Road
Bracknell, Berks. RG12 8 FP
Phone number: 0044-(0)1344-853267
Fax number: 0044-(0)1344-425970
Year: 2008
EJM2A-C-PLA00-A01-02
