FX-3R Maintenance Guide
12-29
12-2-4-4. Loading the Backup Data to the SSD (Restoring the backup data)
CAUTION
Always start the home position return of the machine after the backup
data has been restored. Failure to do so may cause system runaway.

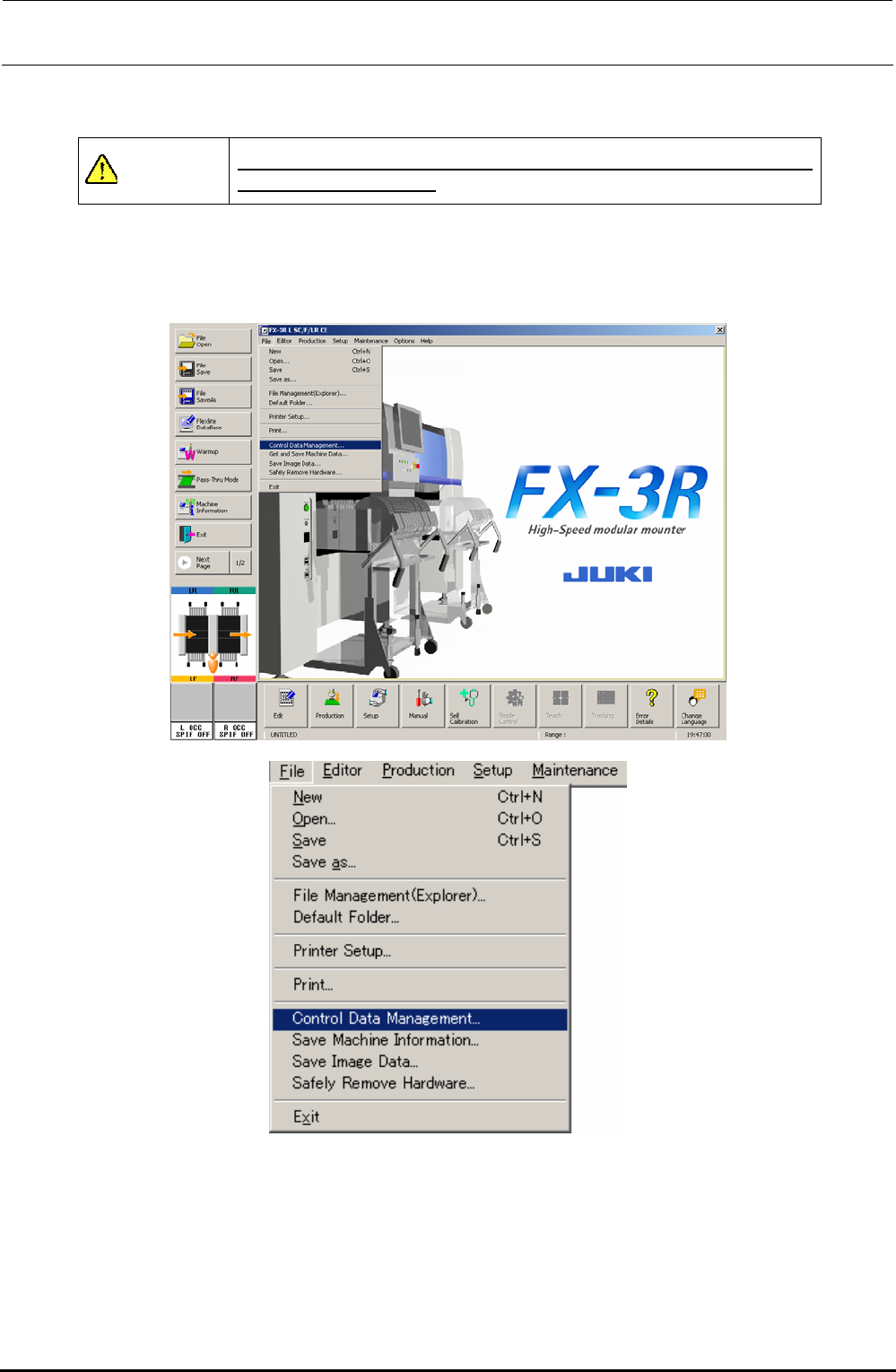

Select [File] and [Control Date Management...] to restore the control data in the SSD.
For the detailed procedure of restoration, see Section 13-3-3, “Restoring the control data from a
flash memory” in the “Instruction Manual.”
∗ After restoring the backup data, check the machine settings and adjust it if necessary.
∗ If there is no backup data for the MS parameters, obtain the MS parameters again.
Rev. 1.00
FX-3R Maintenance Guide
12-30
12-2-4-5. Changing the OS Language (Perform this operation only when the language
needs to be changed.)
When changing the OS language, the data is written into the C-drive. Therefore, update the C-drive
before changing the language.
(The OS language change operation automatically shut down the OS. Therefore, update the C-drive
first.)
1) Click the [Start] button of Windows and run Command Prompt from Programs in the Start
menu.

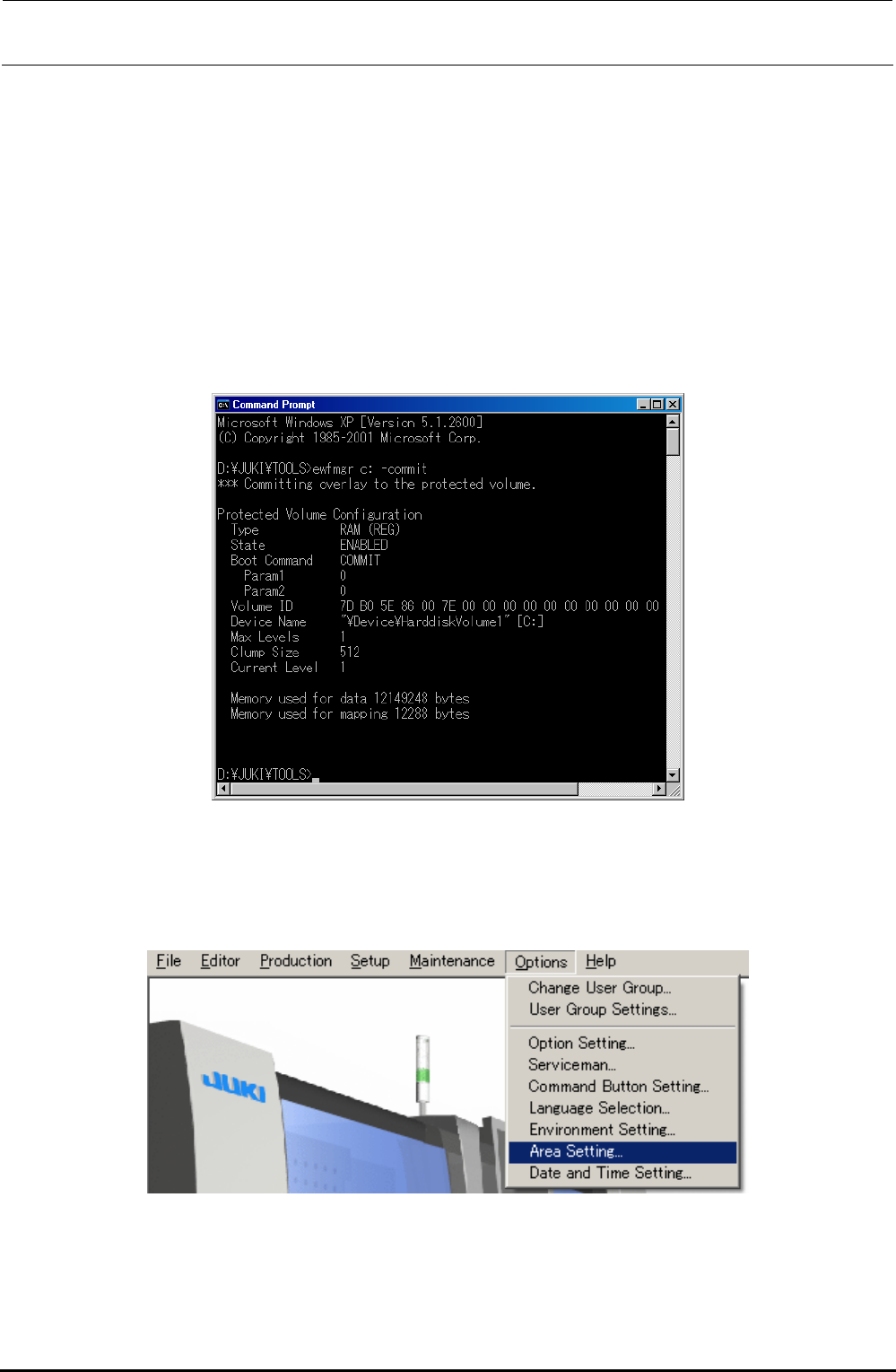

2) In the Console window (DOS screen), type “ewfmgr.exe c: -commit”. The following screen will
appear.
∗ CAUTION
If the C-drive is not updated at this time, the operation status is returned to the previous status
when restarting the system even though the OS language is changed.
3) In the status that the system is started up, select [Area Setting…] from the [Options] menu.
Rev. 1.00
FX-3R Maintenance Guide
12-31

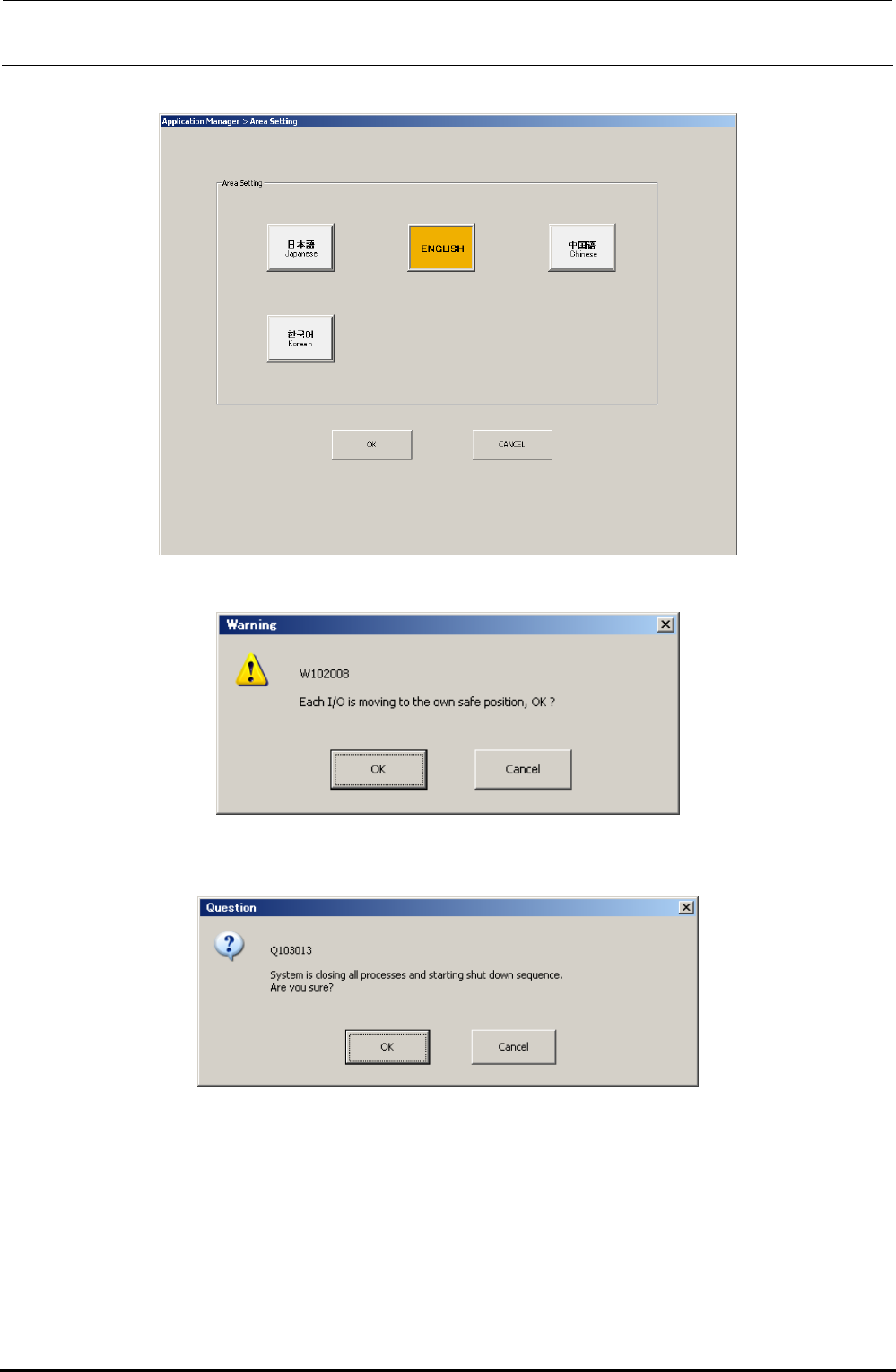

4) Select a desired language you want to change and click the [OK] button.
5) The “Safe Position” setup dialog box will appear. Click the [OK] button.
6) The “System” message dialog box will appear. Click the [OK] button.
(When performing this operation, the OS is then shut down automatically.)
Subsequently, the OS is run with the language you have specified.
Rev. 1.00
