ELECTROVAP® ELMC
51
6.4 WATER INLET VALVE
Maintenance of the water inlet valve is to be done after the first 50
hours of operation. Thereafter, twice a year (minimum).
• Switch the appliance off.
• Switch off the water supply to the humidifier and unscrew the
water supply hose.
• Disconnect the power cables from the water inlet valve of your
humidifier (Item 1).
• Loosen the clamp and remove the water supply hose. (Item 2)
• Unscrew the two screws securing the valve (Item 3).
• Pull out your valve, remove the filter with pliers and remove the
coil (Item 4) by prying it off with a screwdriver.
• Run water through the valve body and over the filter to remove
any particles.
Once all these operations completed, please reassemble the unit, taking care to check the condition of the water
supply hose clamp. You can put your appliance back into service.
Ensure that all the clamps are properly tightened whenever the humidifier is maintained.

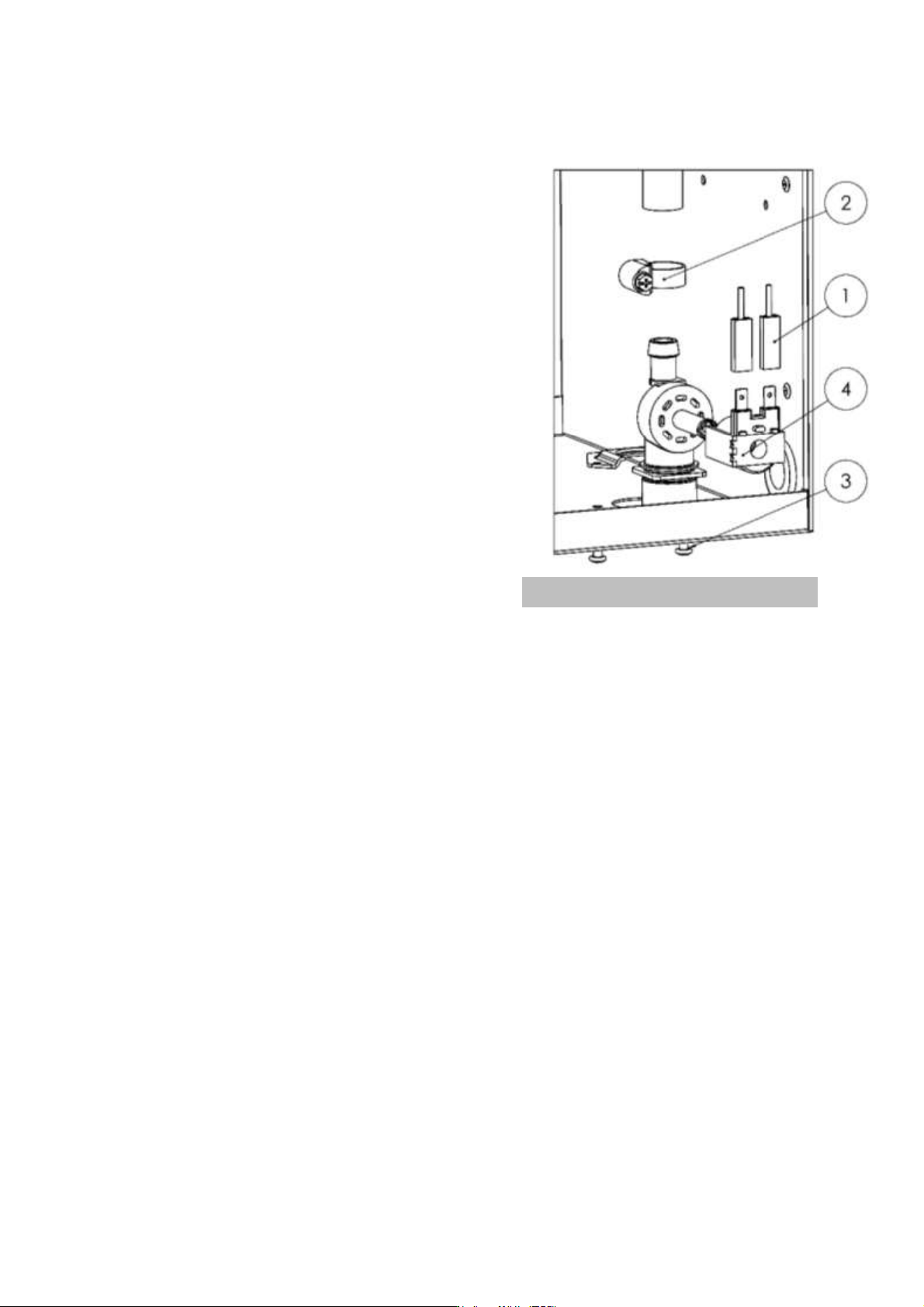

Fig. 6-4. Humidifier water inlet valve
ELECTROVAP® ELMC
52

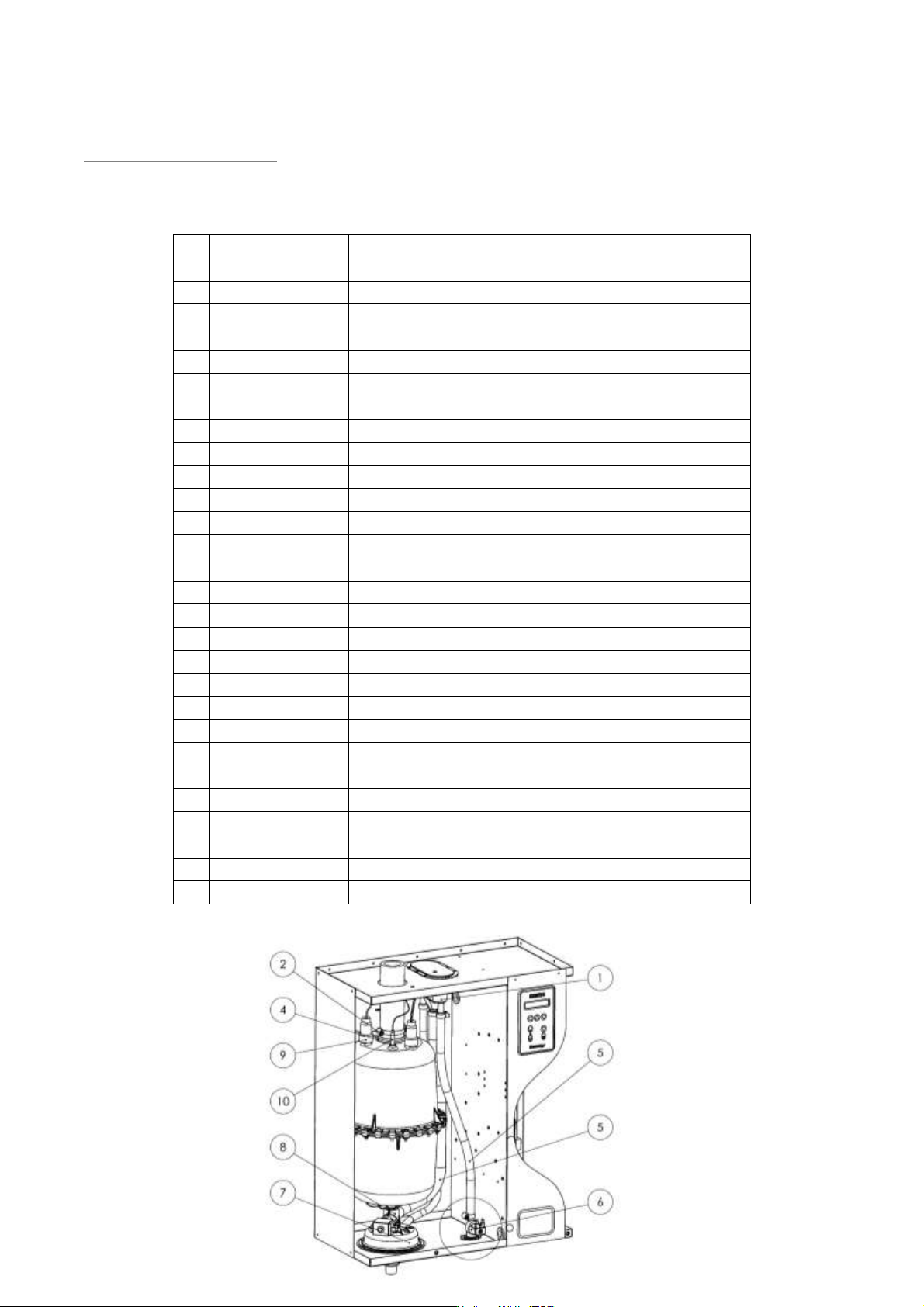

7 SPARE PARTS
7.1 HYDRAULIC PART
N°
Code
Description
1
D110136-SC-SP
Complete filling cup for 1 SC
D110136-MC-SP
Full filling cup for 1 MC
2
D110146-SP
Tightening clamp - 12x22mm
D110139-SP
Tightening clamp - 16x27mm
D110140-SP
Tightening clamp - 20x32mm
D110141-SP
Tightening clamp - 25x40mm
D108256-SP
Tightening clamp - 40x60mm
4
D110195-SP
Cylinder maintenance kit for 1 SC
D110196-SP
Cylinder maintenance kit for 1 MC
5
D61898
Pipe - 13/19mm (water supply hose)
D61899
Pipe - 19/26mm (overflow and cylinder filling hoses)
6
D110157-SP
Water inlet valve ELMC 5-30
D110771-SP
Water inlet valve ELMC 40-90
7
D110154-SP
Drain cup (upper part)
D110154-SP
Drain cup (lower part)
8
D116726-24-SP
Complete drain valve 24V
D110148-24-SP
Operator with 24V coil for drain valve
D110149-SP
Drain valve body
D116656-24-SP
Drain valve coil 24V
D110153-SP
Bag of 10 drain valve gaskets
9
D119698-1SC-SP
3-cable cylinder 1 SC power kit
D119698-1MC-SP
3-cable cylinder 1 MC power kit
D119698-2MC-SP
3-cable cylinder 2 MC power kit
D119698-3MC-SP
3-cable cylinder 3 MC power kit
10
D119699-1SC-SP
1 SC High Level Electrode Cables
D119699-1MC-SP
1MC High Level Electrode Cables
D119699-2MC-SP
2MC High Level Electrode Cables
D119699-3MC-SP
3MC High Level Electrode Cables
(*)
SC = Small Cylinder - MC= Medium Cylinder
ELECTROVAP® ELMC
53
N°
Code
Description
11
D110214-SP
Set of 3 power electrodes for cylinder SC
D110217-SP
Set of 3 power electrodes for cylinder MC
12
D110212-SP
SC cylinder seal
D110213-SP
MC cylinder seal
13
D110221-SP
Brass nut for electrode (Bag of 3)
15
D110233-SP
Bag of screws, nuts, cylinder washers
16
D110209-SP
High level electrode with M4 nuts
17
D110200-SP
MC Electrode spacer
18
D110206-SP
SC cylinder filter
D110207-SP
MC cylinder filter
(*)
SC = Small Cylinder - MC= Medium Cylinder

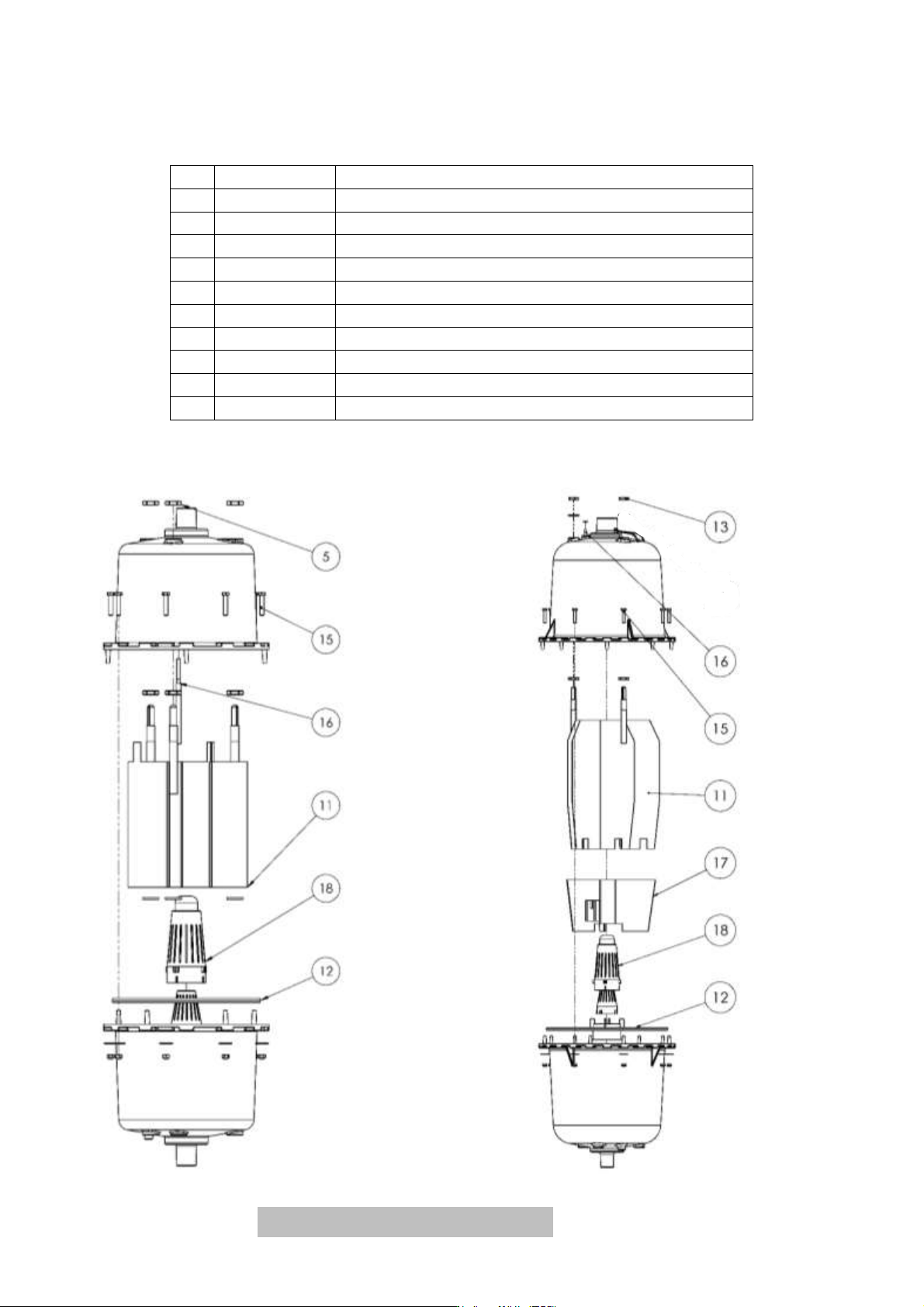

Fig. 7-1. Tank exploded view
