ELECTROVAP® ELMC

3.3.4 Minimum installation distances

• A high limit humidistat must be installed in the duct to stop the humidifier in case the level of humidity exceeds

the preset value.

• If the recommended distances cannot be met, please contact Devatec or their authorized agent for an alternative

solution.

• Make sure the distances are met, if this is not possible, please contact your Devatec agent.

1) Before a junction

2) Before an air grid

3) Before a humidity

sensor

4) Before/after

strangulation

5) Before enlargement

6) Before a bend

Fig. D 3-3. Installation distances

5 x D

0.5 x D

ELECTROVAP® ELMC

Make sure that spaces and distances are respected. If you have any doubts about the calculation, please contact us.

H1 = 110 mm = Minimum height between the duct floor and the axle of the steam pipe.

H2 = 140 mm minimum for a standard mounting / 110 mm minimum for a stair mounting.

H3 = 160 mm = Minimum height between the axle of the dispersion tube and the top of the duct wall.

The H3 distance can be 80 mm at the shortest if the steam pipe is installed at a 30° angle.

In the case of a stair mounting, minimum distance between tubes = 100 mm.

Air flow direction

Fig. E 3-3. Minimum heights & flow directions

ELECTROVAP® ELMC

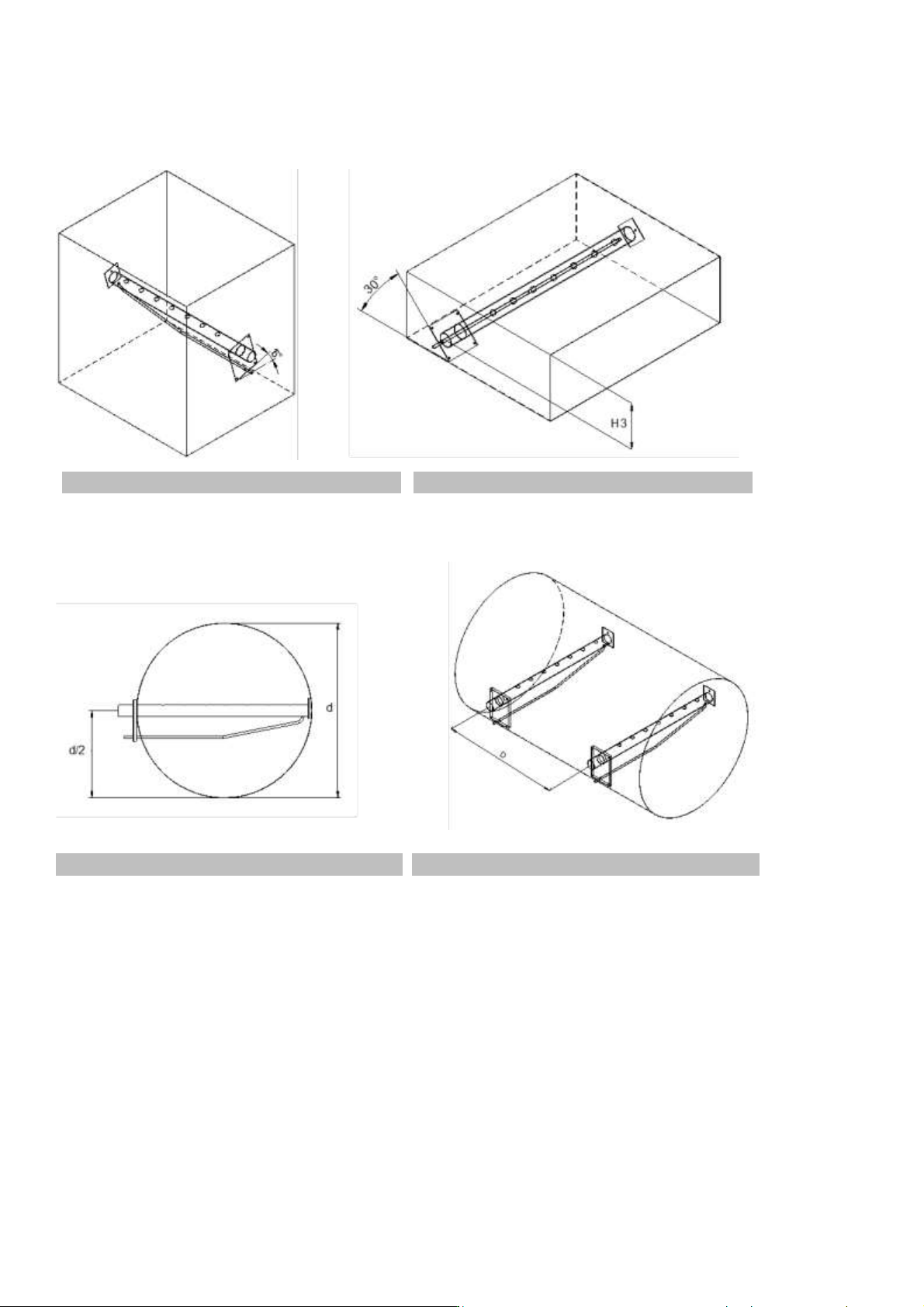

Fig. H 3-3. d = Diameter of the duct

Fig. I 3-3. D = Distance between two tubes

Fig. F 3-3. Vertical ducts

In vertical ducts where the air flow is upward or

downward, the steam distribution pipe(s) must

be tilted by 15° sideways

Fig. G 3-3. Ducts with limited height

In ducts with limited height, the distribution

pipe(s) can be tilted by 30° to get the 80 mm.

minimum height
