ELECTROVAP® ELMC
6
2. PRODUCT PRESENTATION
2.1 CHARACTERISTICS
The ELMC humidifier is an electric humidifier, designed for air humidification in air handling unit. Like all the other
humidifiers of the range, it is compatible with the Blower Pack.
Standard delivery includes:
1. Steam humidifier
2. Technical documentation
3. 3 hose clamps (2 for the steam hose and 1 for the drain hose)
ACCESSORIES (Not supplied)
• Stainless steel steam dispersion tubes
• ExpressPack®
• BlowerPack fan unit
• Steam and condensate hose
• Duct or room humidity sensor
• High Limit Humidistat
• Stainless steel braided hose in 3/4" FF (with
gaskets) for connection to water network.
• Drain hose
• Remote information board
• Filling cup extension
• Transformer 380-690V/115-230V
• Additional cooling kit
• Outdoor protective cabinet
• Mounting bracket
• Collecting water tank
• Bluetooth kit for mobile application
Fig. 2-1. Humidifier
ELECTROVAP® ELMC
7
2.2 SIZE
ELMC
5-15
ELMC
20-30
ELMC
40-60
ELMC
90
Number of steam outputs
1
1
2
3
Dimensions [mm]
A: Total width
469
554
794
1074
B: Total height
610
750
750
750
C: Depth
225
285
285
285
D: Height
538
678
678
678
E1: Steam outlet position
350
417
372
372
E2: Steam outlet position
111
137
137
137
E3: Distance between steam outputs
275
275
G1: Drain water position
350
417
372
372
G2: Drain water position
111
137
137
137
G3: Distance between draining water
275
275
H1: Water inlet position
222
222
222
222
H2: Water inlet position
141
181
181
181
I: Condensate outlet diameter
Ø 25
Ø 25
2 x Ø 25
3 x Ø 25
K: Steam output diameter
Ø 25 or 40
Ø 40 or 25
Ø 40 or 25
Ø 40 or 25
Mass [kg]
Weight in operation
23
37
60
90
Gross weight (packed)
15
22
30
45
FRONT SIDE
RIGHT SIDE
Fig. 2-2. Humidifier sizes
ELECTROVAP® ELMC
8

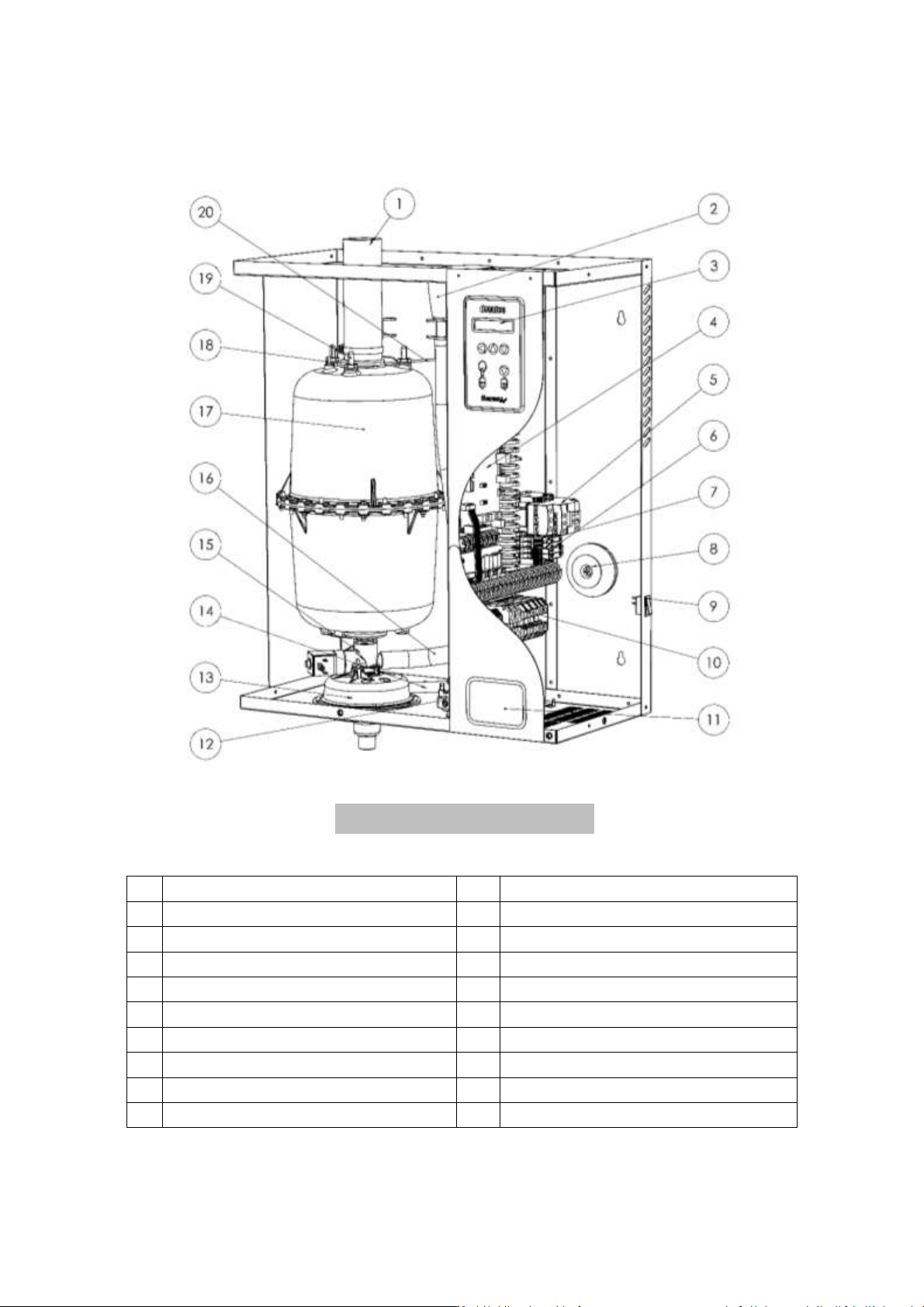

2.3 HUMIDIFIER COMPONENT PARTS
1
Steam hose
11
Identification label
2
Filling cup
12
Water inlet valve
3
LCD display board
13
Funnel
4
Main circuit board
14
Overflow hose
5
Power contactor
15
Drain valve
6
Fuse holders
16
Filling hose
7
3 relay board (optional)
17
Steam Cylinder
8
Transformer
18
High water level electrode
9
ON/ OFF Switch
19
Power electrode
10
Power rail
20
Cylinder retaining clip
Fig. 2-3. Humidifier component parts
