4 − 35
4.3.15 Vision Copy
This command allows you to copy mark data, which is registered onto the mark
database, as a BOC mark or IC mark into your data.
(1) Copying as a BOC mark
Step 1: Move the cursor into the cell “D =” of the menu item “BOC mark pos
No. 1 (2 or 3, as desired)” on the PWB data screen.
Step 2: Select the [Edit] menu command provided with the Program Editing
utility, then the [Vision Copy] command.
The position of the cell to which a BOC mark is copied
with the [Vision Copy] command
(2) Copying as an IC mark
Step 1: Move the cursor to the cell "Mark" which indicates the IC mark point
on the Placement data screen.
Step 2: Select the [Edit] menu command provided with the Program Editing
utility, then the [Vision Copy] command.
The position of the cell to which an IC mark is copied
with the [Vision Copy] command
4 − 36
(3) Vision copy dialog box
When you select the [Vision Copy] command, the dialog box appears as shown
in the figure below.
Select mark data to be copied from the “Registration” list, then click the <Copy>
button.

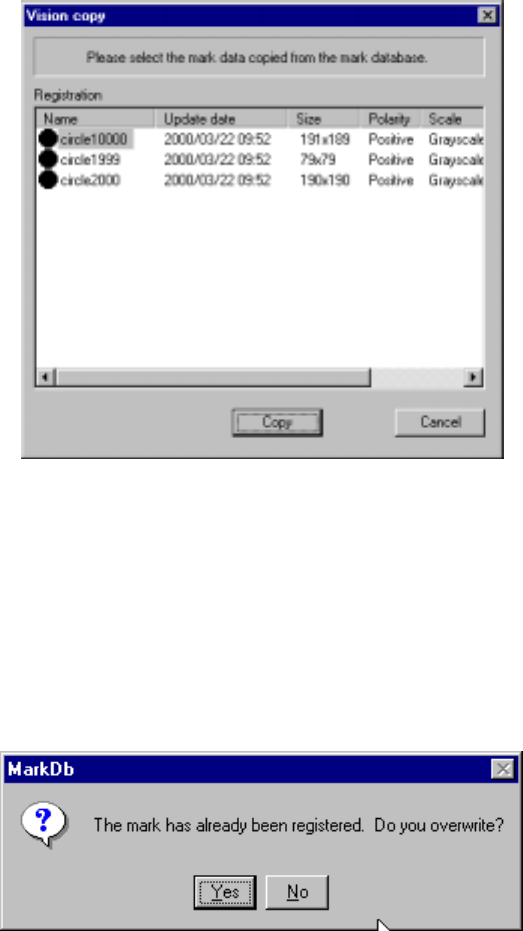

Vision copy dialog box
When you click the <Copy> button, an asterisk mark (*) appears in the mark
teaching column (Mark T). When you use a KE-2030, this mark appears in both
columns for the left and right stations.
If you specify the mark data already registered, the following overwriting
confirmation message appears on the screen.
Overwriting mark confirmation message
To overwrite mark data, click the <Yes> button.
4 – 37
4.4 Data
This command menu provides the commands which allows you to move to the Editing
screen for each type of data: PWB data, Placement data, Component data, and
Pick data, and those for displaying each type of data completion status, and those for
checking to see if each data record is completed correctly by comparing to the
configuration set on the Setup screen.
4.5 PWB data
4.6 Placement data
4.7 Component data
4.8 Pick data
The commands above display the corresponding type of data and switch the input
screen for each type of data.
See the Section on each type of data for details.
Other method for switching the data input screen
In addition to the method described above, you can switch between each type of data
input screens as described below.
① Press the F6 key while holding the CTRL key or press the TAB key while holding
the CTRL key to move to the next data window. Press the F6 key while
holding the SHIFT and CTRL keys or press the TAB key while holding the SHIFT
and CTRL keys to move to the previous data window.

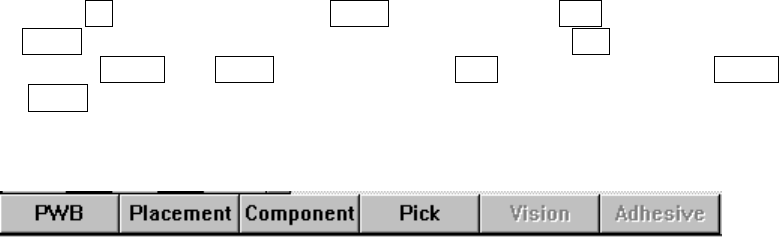

② Click each data title button displayed on the bottom of the screen.
