4 – 104

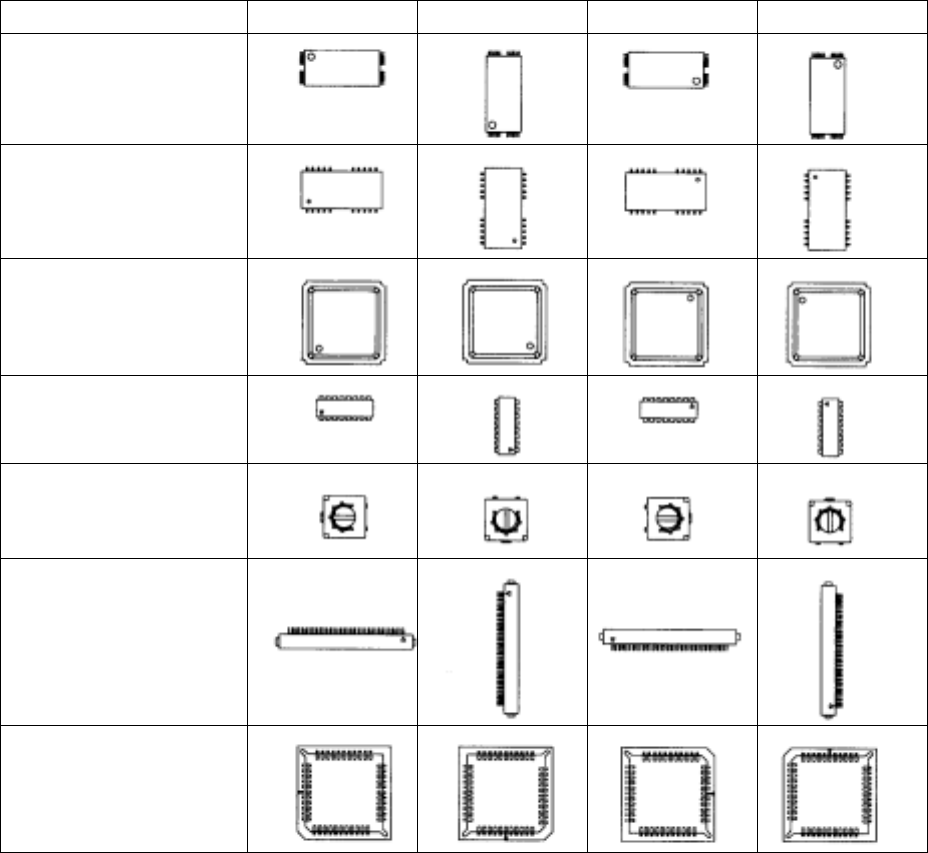

Component type 0°
°°
° 90°
°°
° 180°
°°
° 270°
°°
°
TSOP-1
TSOP-2
BGA
FBGA
Network resistor
Trimmer
Unidirectional lead
connector
Bidirectional lead
connector
Z-lead connector *1
J-lead socket
Gull-wing socket
Socket with bumper *1
*1 This item is applicable to machines other than a KE-2010.
4 – 105
4.7.10 Replacing Component data
The [Replacement] command allows you to specify each menu item on the
Component data screen to replace the corresponding data of the selected
components at a time.
Select the [Replacement] command on the “Edit” menu when the “Component data
list screen” or “Component data form screen” (see Figure 4.7.10.1) appears on the
Program Editor menu. The Component data replacement wizard starts up.

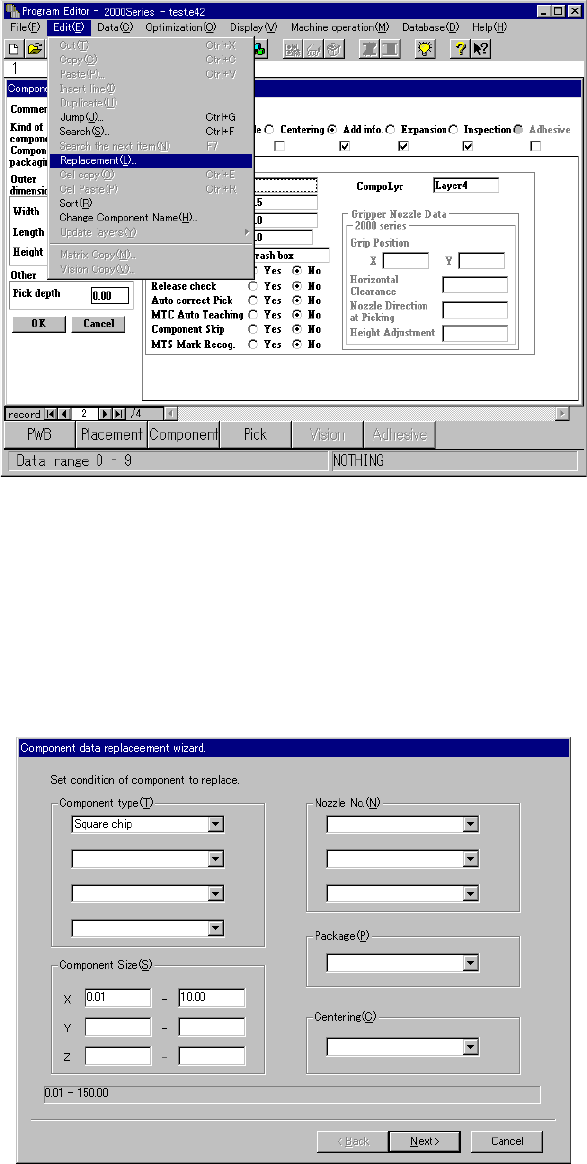

Figure 4.7.10.1 Component data replacement command selection screen
(1) Setting conditions
When you select the [Replacement] command on the “Edit” menu, the screen
shown in Figure 4.7.10.2 appears.
− Set the conditions for changing data of the components on the following
conditions setting screen.
Figure 4.7.10.2 Conditions setting screen
4 – 106
− You can specify the following conditions:
1 Component type Up to four component types can be specified. If you specify two or
more component types here, the machine searches all of the
component types you specified, and replaces their data. If you specify
no component type here, the machine searches all types of
components, and replaces their data.
2 Component Size Specify the maximum and minimum length, width and height of a
component respectively. If you do not enter any value here, the
machine uses the allowable maximum and minimum values
automatically.
3 Nozzle No. Up to three numbers of nozzles that are to be used for picking up a
component can be specified here. If you specify two or more nozzle
numbers, the machine searches all components to be picked up with
the specified nozzles and replaces their data. If you do not specify any
nozzle number here, the machine searches components independently
from the nozzle to be used.
4 Package Specify the packaging style of a component. If you do not specify any
packaging style here, the machine searches all packaging styles of
components.
5 Centering Specify the component centering method here. If you do not specify
any centering method, the machine searches components
independently from the centering method, and replaces their data.
Enter the desired item(s), and click the <Next> button. The screen shown in Figure
4.7.10.3 appears.
(2) Setting the items to be changed
Enter a new value for each item on the screen that is provided to enter data to be
replaced.
You can enter some component data items (Add info., Expansion, and Inspection
(see Figure4.7.10.1) and a nozzle number.
If you do not enter any data for a data item, the machine will leave its original
data unchanged. “Coplanarity” changes the “Copla (2000)” setting on the
Component data screen invoked with the Program Editing utility.
− Enter data, then click the <Next> button. The machine displays the screen
shown in Figures from 4.7.10.3 to 4.7.10.5.

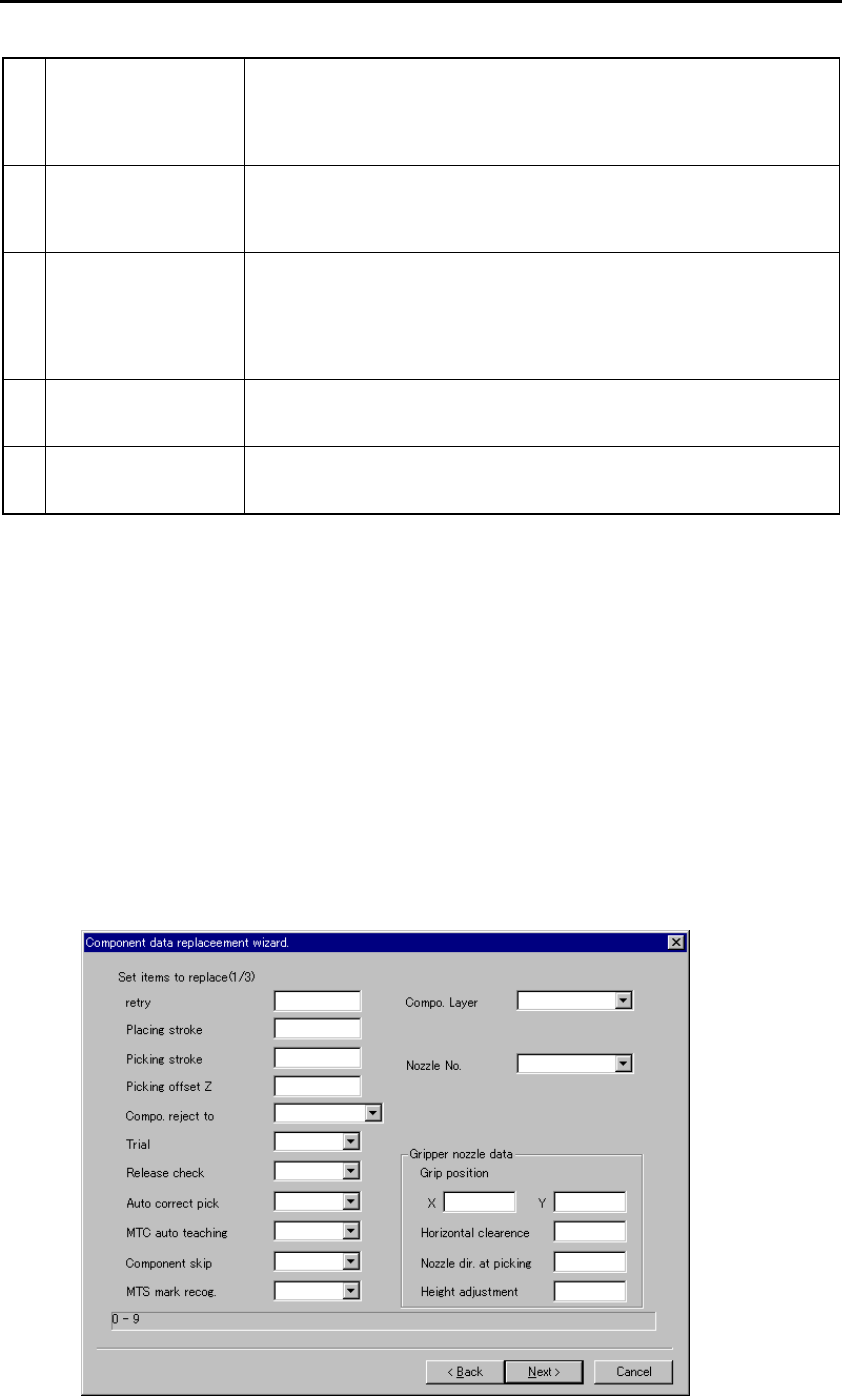

Figure 4.7.10.3 Screen for entering data to be replaced (1)
