4 – 242

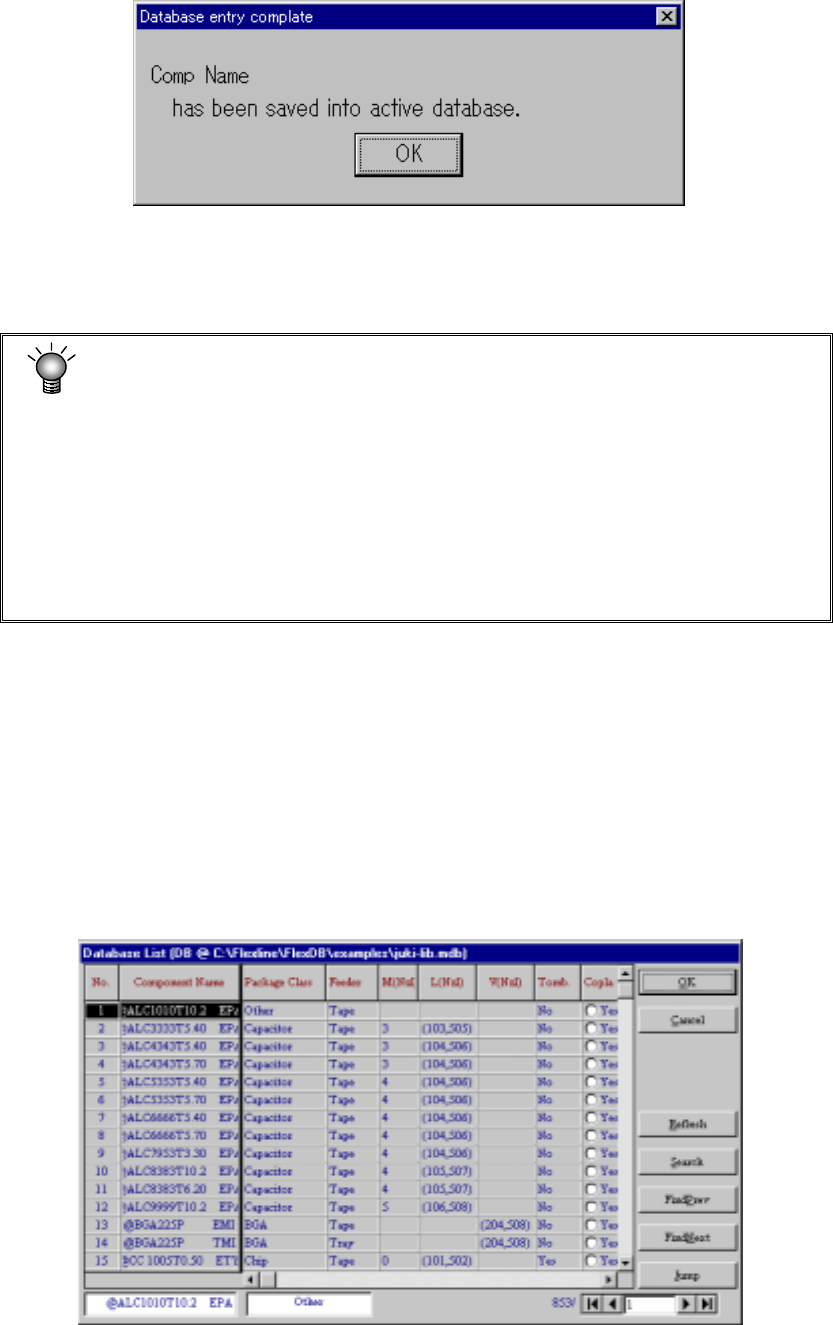

③ When you select “Yes” for “Notification of database entry completion” on the
“Environment setting” dialog box, the following message appears on the screen
to inform you that data is registered onto the database completely.
When you select “No” for “Notification of database entry completion”, the
message above will not appear on the screen.
If there is data of the same component name on the database file, the system
overwrites only the information set with the data you register.
For example, if there is only component data whose centering method is set to “laser” on
the database file, and you register the data whose centering method is changed to
“vision” with the Program Editor, data whose centering method is set to “laser” remains
without being changed, and data whose centering method is set to “vision” is registered to
the database. As the result, both component data on which the laser centering method
is selected and component data on which the vision centering method is selected exist on
the database.
When you select the [Import] or [Re-Search] command for such data, the system calls all
component data registered on the database.
4.13.2 Call list
When you invoke this command from the Placement data or Component data
screen
If any component name is not entered to Placement data, you can select this
command from the Placement data screen. If any component name is entered,
you cannot execute this command: this command is dimmed on the screen.
If you select the [Call list] command when no component name is entered, the data
selection screen like one shown below appears on the screen.
4 – 243
① When you click the <OK> button or double-click the desired data
When you select the data to be called and click the <OK> button, or when
double-click the desired data, the following confirmation message appears on
the screen.
− When you click the <OK> button on the screen above, the Component data
which you selected is copied from the Component database. If any Vision
data is linked to the Component data, those data are copied also at the
same time.
However, if there is Pick data already created, the following message appears
on the screen.
• When you select "Yes" on this dialog box, the pick-up angle is updated.
• When you select "No", the angle set as Pick data is not updated.
− When you click the <Cancel> button, the machine returns to the
Component database call screen.
If the same component name is displayed on the screen, any copy
operation will not be performed.
If any component name is entered on the Placement data screen, execute the
[Call list] command from the Component data screen. When you call this
command from the Component data screen, only the selected component data
is copied, and the component name is not changed.
If a comment on the component data you called is longer than 30 characters,
HLC handles the first 30 characters as a valid comment, and copies them. If
a line feed code is include in a comment on the component data you called,
HLC handles characters located after the line feed code as invalid data, and
copies characters located before the line feed code only.
② Cancel button
When you click this button, the machine returns to the screen from which you
selected the [Call list] command.
4 – 244
③ Refer button
When you click the Refer button, the following “Component search” dialog box
appears on the screen. This dialog box allows you to find data from the
Component database.
Set the conditions for finding data, then click the “Search for all” button or
“Search for one item” button.
④ Data search conditions: data which satisfies the conditions you set is to be
found.
Item Description
String of letters to
be searched
Specify a component name, adhesive pattern name, comment and nozzle number with
the corresponding buttons.
For a component name, adhesive pattern name, and comment, the machine is to search
data which includes the specified character string.
For nozzle numbers, specify two or more nozzle numbers with separating them with a
comma (,), or specify the range of nozzles with using a hyphen (-); for example “101 -
105”.
Producer Select one of the registered manufactures.
Component type Select one of the registered component type.
Feeder Select one or two more feeder(s)
Centering
Specify the centering method. You can specify two or more centering methods. When
you specify two or more centering methods, it is supposed that they satisfy the search
conditions if one of the selected centering methods is already set.
⑤ Search for all button
This button displays all data pieces which satisfy the conditions you set.
⑥ Search for one item button
Moves the cursor to the first data line which satisfies the conditions you set.
When you click the <Cancel> button, the machine returns to the Database list
screen.
