5.4.2 Teaching of the User Defined Template
The basic operation for teaching the template is explained as follows:
① Move the cursor to the mark position whose data is to be taught.
Note that the X and Y coordinates of the mark must be entered before teaching
the recognition mark.
Figure 5.4.3 Teaching the user defined template
② Press the CAMERA key of the HOD to start teaching.
The camera moves to the X and Y coordinates of the mark, then the pattern to be
taught (to be stored) appears on the monitor display. If such a pattern does not
appear, check to see if the entered coordinates are correct.
If any key other than the CAMERA key is pressed, the error sound beeps, and
the mark recognition cannot be taught.
5 − 19
3. Teach the scale frame (template setting frame).
Use the up, down, left and right arrow keys to adjust and enter the scale frame
(FAST key changes the moving speed of the scale frame) in the order: upper
side, left side, bottom side, then right side.
The mark is automatically recognized, then the data necessary for correction is
obtained.
The image shot from the camera and the rectangle frames
are displayed.
Pad printing part
First, set the upper side and the left side of the scale
frame.
Set the upper side and left side to be recognized (by
moving the sides indicated with the arrow marks).
Press the ENTER key.
“Set Left-Top Point” appears at the bottom line of the
screen.
In the same manner, set the bottom side and the right side
of the scale frame.
After adjustments, press the ENTER key.
“Set Right-Bottom Point” appears at the bottom line of the
screen.
Note: To teach the scale frame only again without changing the information on
the mark, press the NEXT key of the HOD. Step 3 operation can be
skipped. However, the NEXT key pressing becomes invalid if the mark is
newly recognized.
The noise cut level around the mark is obtained, then displayed on the
monitor automatically.
Adjust the noise level so that the mark can be seen clearly and the noise
level can be decreased as much as possible with the up and down arrow
keys of the HOD (up/down arrow keys for moving X- and Y- axes).
After adjustments, press the ENTER key.
**********
**********
5 − 20

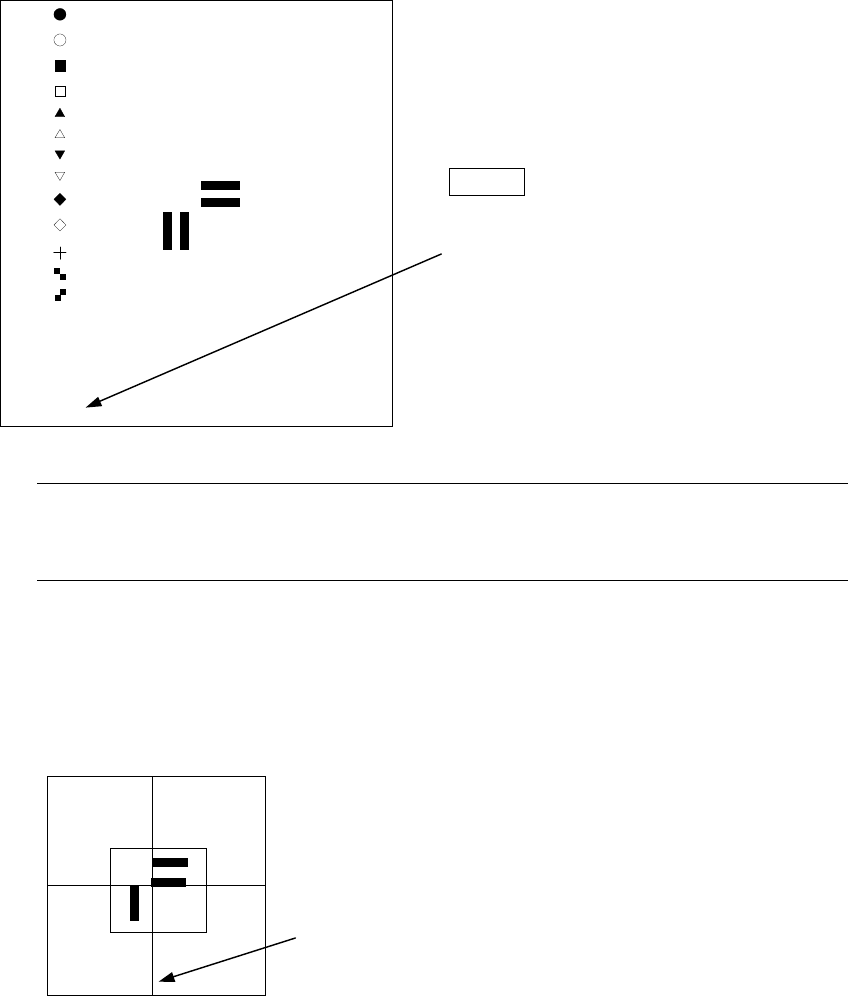

Next, select “PR” as the mark judge setting.
Move the * mark over the position of PR
with the up and down arrow keys of the
HOD (up and down arrow keys for
moving the XY axes), then press the
ENTER key.
“Select Mark by Up or Down Key”
appears on the bottom of the screen
.
Note: Since the template size does not exceed the size 256 x 256 pixels,
approximately quarter of the screen size selection of the template whose
size is too large displays an error, then the machine returns to Step 3.
④ Teach the center of the template screen.
The scale frame and the cross-hair cursor are
displayed on the screen.
Use the HOD to move the cross-hair cursor to decide
the center of the template (this position is matched with
the mark coordinates of the PWB data).
“TempMatch-Set Center” appears at the bottom of the
screen.
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
