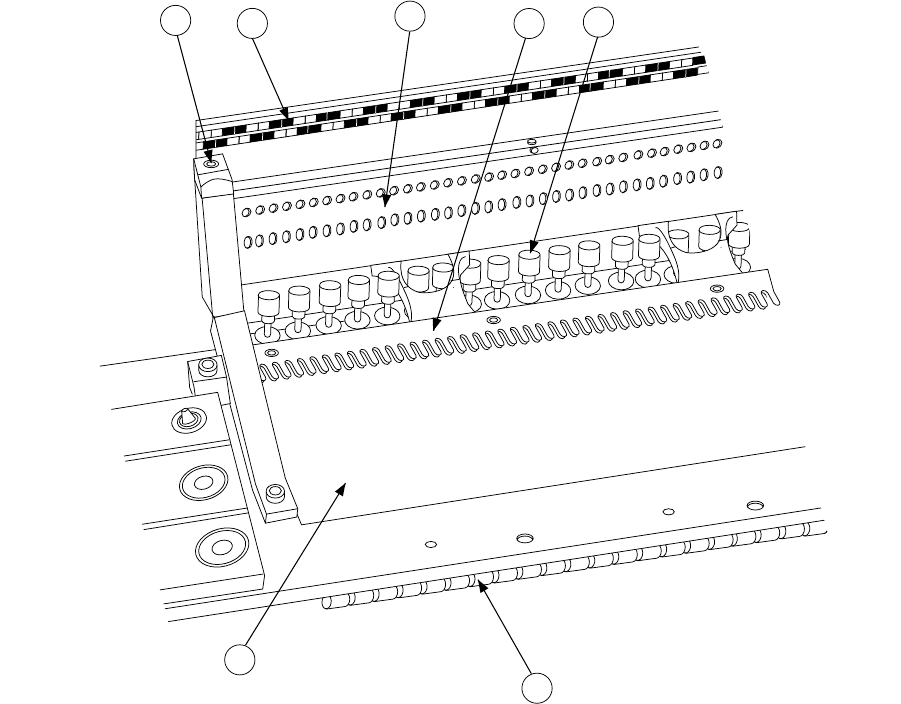

1. Feeder bank parts identification (See Figure 1.2.3.2.)
The tape feeder loaded with taped components, stick feeder loaded with
components in sticks bulk feeder loaded with components in bulk are positioned
and secured by the fixing plate ②, and lock shaft ④.
The component feeding device is driven by the drive cylinders ⑤.
The position label ⑥ is used to determine the position at which each feeder is
installed. You can see LED status of the FPI (optional) to decide where to set
each feeder.
The bank mark ⑦ is the mark for correcting the position of the feeder set.
6
2
4
1
5
7
3
① Feeder bank ⑤ Drive cylinder
② Fixing plate ⑥ Position label
③ Fixing plate B ⑦ Bank mark
④ Lock shaft
Figure 1.2.3.2
1 − 28

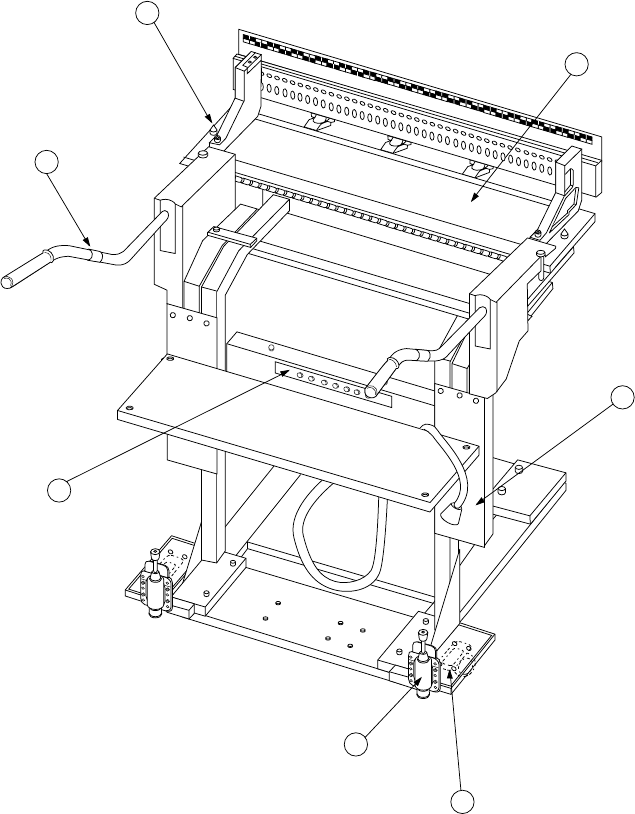

2. Overall feeder exchange trolley parts identification
(See Figure 1.2.3.3.) (Optional)
The Overall feeder exchange trolley is used to remove the feeder bank from the
main unit for easy preparation.
The feeder bank ① can manually be moved by holding the trolly handle r which
is attached to the floor trolley ③ equipped with casters ②. Positioning to the
main unit of this machine is carried out with the bank locate pins t on the left and
right. The Overall feeder exchange trolley can be fixed with the trolley stopper
⑥.
2
1
5
4
7
3
6
① Feeder bank ⑤ Bank locate pin
② Casters ⑥ Trolly stopper
③ Floor trolley ⑦ Connector bracket
④ Trolly handle
Figure 1.2.3.3
1 − 29
3. Tape feeder parts identification
The tape feeder uses a tape whose width is 8 mm, 12 mm, 16 mm, 24 mm, or 32
mm to supply components.

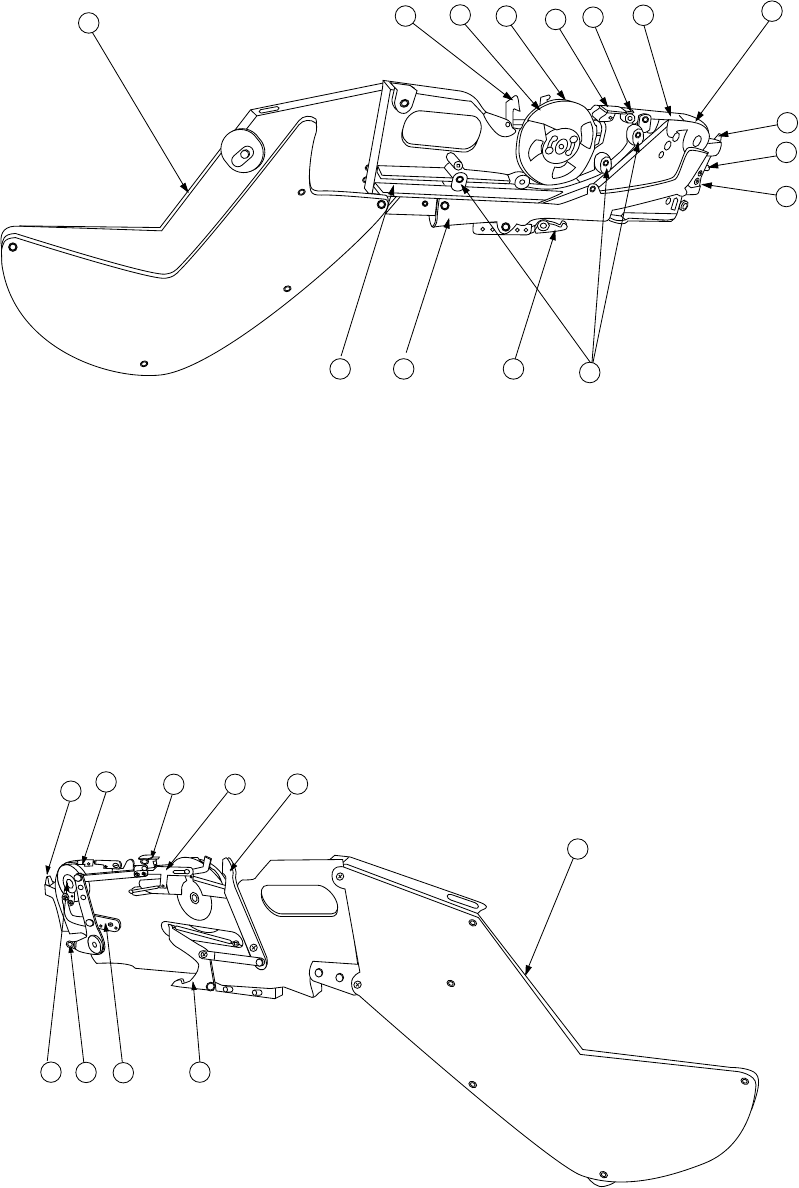

FF05/08 Parts identification (1/2)
12
11
10
16
4
17
6
5
1
2
14
19 15 13
18
Figure 1.2.3.4 Right side view
① X axis reference pin A ⑧ Stopper
⑮ Guide cover
② X axis reference pin B ⑨ Free link
⑯ Unreeling plate
③ Sprocket wheel ⑩ Tape holder
⑰ Unreeling guide roller
④ Upper cover ⑪ Cover tape fixing plate
⑱ Reel support
⑤ Upper cover hook ⑫ Lock release lever
⑲ Tape groove
⑥ Shutter ⑬ Lock holder
⑦ Knock lever ⑭ Tape guide
18
12
9
4
5
16
8
7
3 13
Figure 1.2.3.5 Left side view
