10) Entrance shutter

This item opens/closes the entrance shutter cylinder.

When the control item “Entrance shutter” is selected, click the <OPEN>,

<CLOSE> or <OPEN/CLOSE> button or press the F3, F4 or F5 key.

The state display is updated when the entrance shutter cylinder is

controlled completely.

11) Exit shutter

This item opens/closes the exit shutter cylinder.

− When the control item “Exit shutter” is selected, click the <OPEN>,

<CLOSE> or <OPEN/CLOSE> button or press the F3, F4 or F5 key.

− The state display is updated when the exit shutter cylinder is controlled

completely.

12) PWB detect pin

This item turns on and/or off the PWB detect pin.

When the control item “PWB detect pin” is checked, click the <ON>,

<OFF> or <ON/OFF> button or press the F3, F4 or F5 key.

The state display is updated when the PWB detect pin is controlled

completely.

Note: You cannot set this item with any machine other than a KE-2030.

(3) State display

The state of each sensor and each unit is displayed when the sensor and unit

are controlled completely.

The state of each sensor, signal, and unit is always displayed.

8 − 30

8.3.2 Transport system automatic control

When you select the [Conveyor] command on the [Ctrl] menu, then the [Automatic

control of conveyor] command, the following “Automatic control of conveyor” dialog

box appears on the screen.

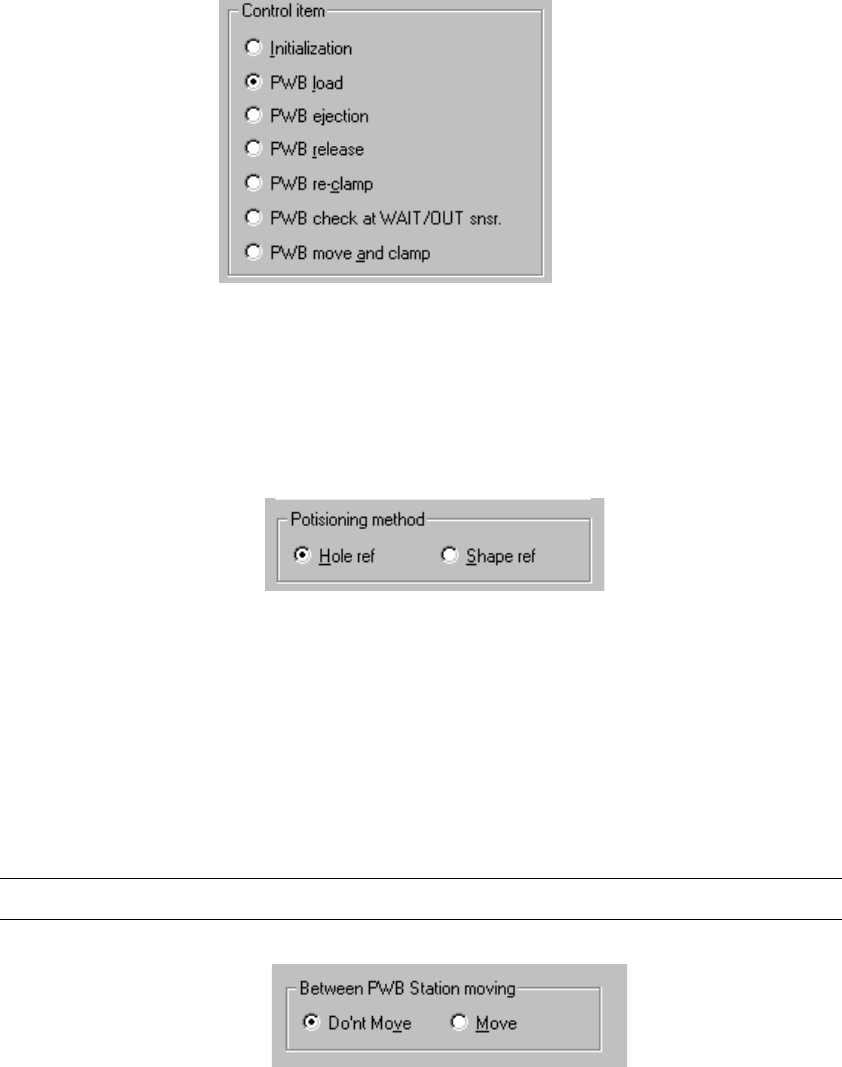

Figure 8.3.2 Automatic control of conveyor dialog box

(Screen example when a KE-2030 is used)

Note: *1 The Control item “PWB move and clamp” and the menu items

“Between PWB Station moving” and “Control position” are

displayed with a KE-2030 only.

8 − 31

(1) Control item

Select a control item with the corresponding radio button.

(2) Control position

With the radio button select the position when the conveyor is automatically

controlled.

You cannot select the control position if the control item, “Initialization”, “PWB

ejection”, “PWB release” or “PWB check at WAIT/OUT snsr.” is selected.

(3) Between PWB Station moving

Select either of the two radio buttons: whether to move the conveyor between

the PWB stations or not.

You cannot select this menu item if the control item “Initialization”, “PWB

ejection” or “PWB release” is selected.

Note: You cannot select this menu item for models other than a KE-2030.
