8.3.5 Vacuum Table Control
When you select the [Ctrl] command on the “Manual control” menu, the [Conveyor]
command on the displayed menu, and then the [Vacuum table control] command, the
following “Vacuum table control” dialog box appears on the screen.

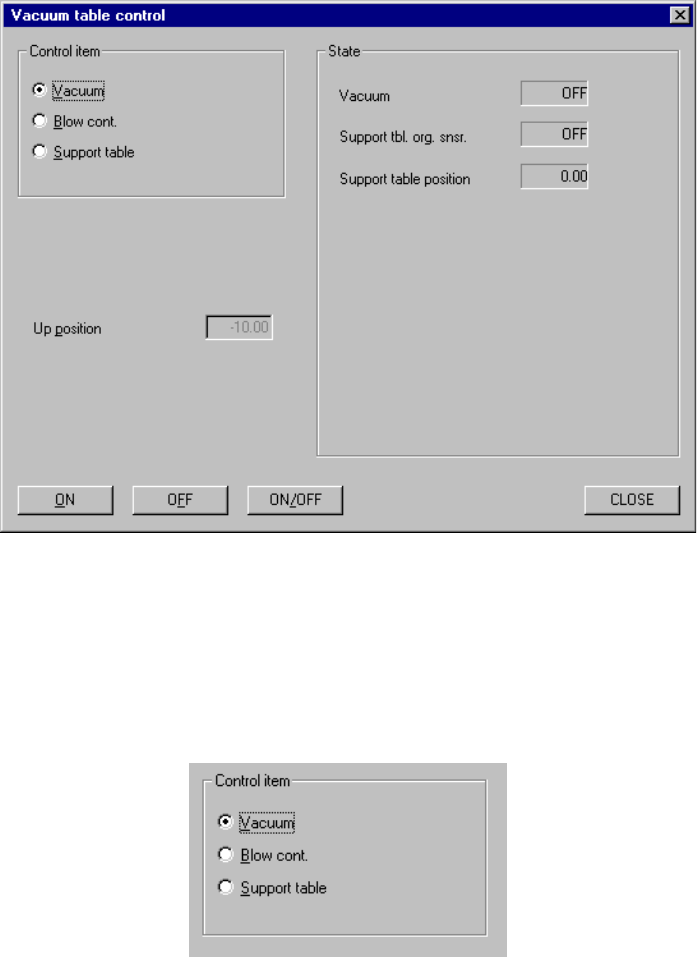

Figure 8.3.5 “Vacuum table control” dialog box (screen example when a KE-2020 is used)
(1) Control items
Select which item is to be controlled with checking the corresponding radio
button.
(2) Control buttons
By clicking each control button, you can control the selected control item.
The actually displayed control buttons vary depending on the control item you
selected.
8 − 40
1) Vacuum
When the radio button “Vacuum” is checked, you can turn on/off vacuum of
the vacuum table.
When the radio button “Vacuum” is checked, click the <ON>, <OFF> or
<ON/OFF> button or press the F3, F4 or F5 button.
The “State” display is updated when the selected vacuum function is
controlled completely.
2) Blow cont
When the radio button “Blow cont” is checked, you can turn on/off the blow
function of the vacuum table.
When the radio button “Blow cont” is checked, click the <ON>, <OFF>, or
<ON/OFF> button, or press the F3, F4 or F5] key.
The state display is updated when the selected blow function is controlled
completely.
3) Support table
When the radio button “Support table” is checked, you can move up or
down the support table.
When the radio button “Support table” is checked, click the <UP>,
<DOWN> or <UP/DOWN> button, or press the F3, F4 or F5] key.
(3) State
This column shows the condition of each unit when controlled completely.
8 − 41
8.4 VCS Control
8.4.1 VCS control (supported by a KE-2020 and KE-2040)
When you select the [Vision] command on the [Ctrl] menu, then the [Vision control]
command, the following "VCS control" dialog box appears on the screen.
Figure 8.4.1 VCS control dialog box
(1) Control unit
Select a unit to be controlled from the combo box.
Note that you cannot select a unit whose view type is not set (that is, not
installed) with the "Option" menu of the MS parameters.
This selection will not affect the setting of the "Device enable" dialog box invoked
from the Machine setup menu (you can select a unit not checked (that is, not
enabled)).
* When you press the down arrow key while holding down the Alt key, the
following list appears on the screen.
(KE-2020) (KE-2040)
