10 − 7
② Using the laser alignment unit, measure the laser sensor height.
(When the left 1 head is selected)
The machine has finished measuring the selected head.
To repeat the measurement operation, click the <Exec.> button.
When you click the <Exec.> button, the previous screen reappears.
To measure another head, select the desired head in the “Head” combo box.
When you change the head in the “Select Head” combo box, the initial screen
appears.
To quit Self calibration mode, click the <OK> button.
10 − 8
10.4 Rotation Center of the Nozzle
When you select the [Set-up group] command on the menu bar, then the [Rotation
center of noz] command on the displayed menu, the following “Rotation center of
noz.” dialog box appears on the screen.

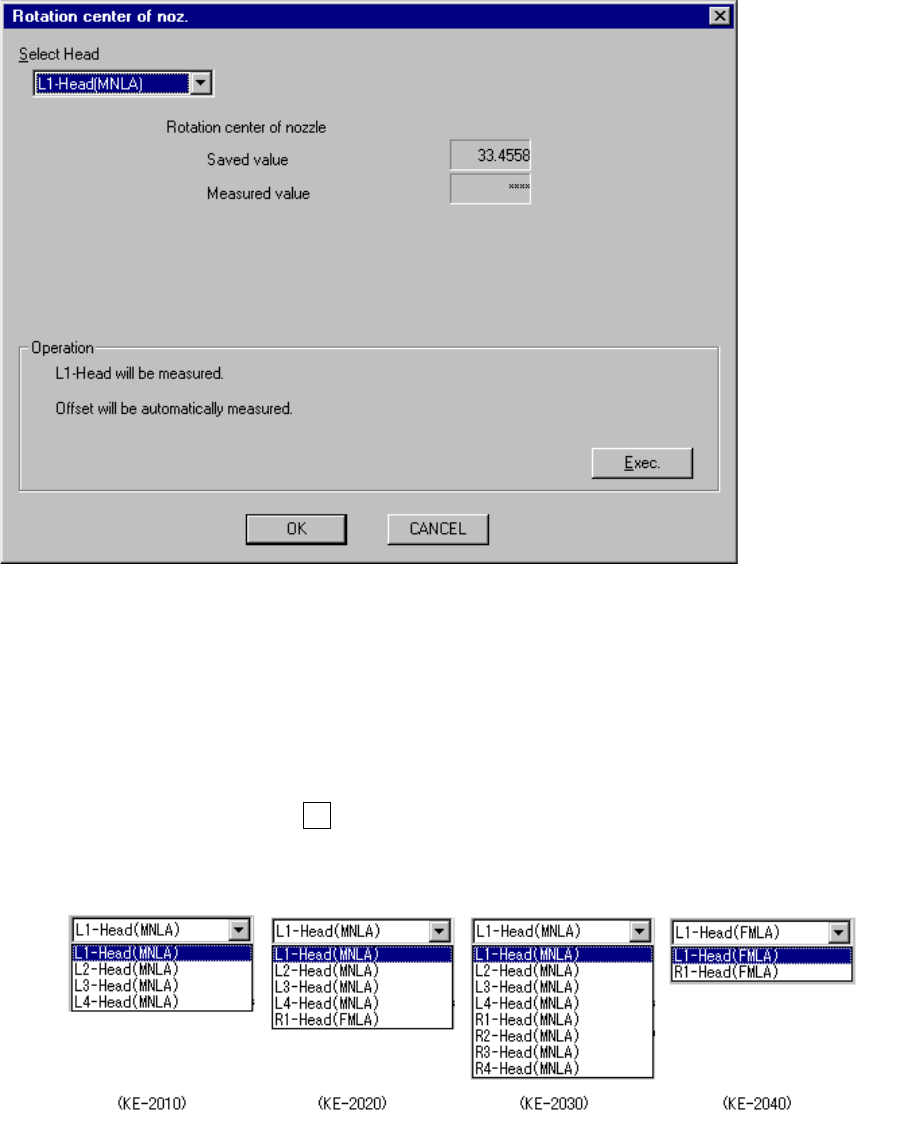

Figure 10.4.1 “Rotation center of noz.” screen
− Select Head
Using the “Select Head” combo box, select the head to be set.
You cannot select the head which is not checked on the “Device enable” menu
invoked from the Machine Setup menu.
When you press the Alt key and the down arrow key at the same time, the
following list appears on the screen.
(When the left 1
head is selected)
(Rotation center of the
nozzle already set)
(Rotation center of the
nozzle measured)
10 − 9
(1) Setting items
No. Item Description
1 Rotation center of noz Rotation center of the nozzle detected with the laser
(2) How to set
− Follow the instructions displayed on the screen to set the head selected in the
“Select Head” combo box.
− When you click the <OK> button, your setting becomes valid (but not be
saved at this point).
− When you click the <CANCEL> button, your setting becomes invalid.
− How to operate
Follow the instructions displayed to obtain the appropriate value automatically.
(When the left 1 head is selected)
The head selected in the “Select Head” combo box is to be set.
Click the <Exec.> button.
When you click the <Exec.> button, the selected head moves along the theta
axis in from 0 to 15-degree units 24 times repeatedly to obtain the average
value.
