YS24 Parts List _KKE-0911 - 第34页
30 1 31 10 7 43 41 8 45 42 27 31 3 41 36 24 25 6 38 16 44 29 35 39 37 13 18 18 22 34 30 2 1 17 17 40 19 40 19 23 23 15 44 21 26 9 14 21 26 30 41 43 2 30 29 1 1 12 21 32 5 4 20 28 21 33 20 (R>L) This llustration shows …
7
7

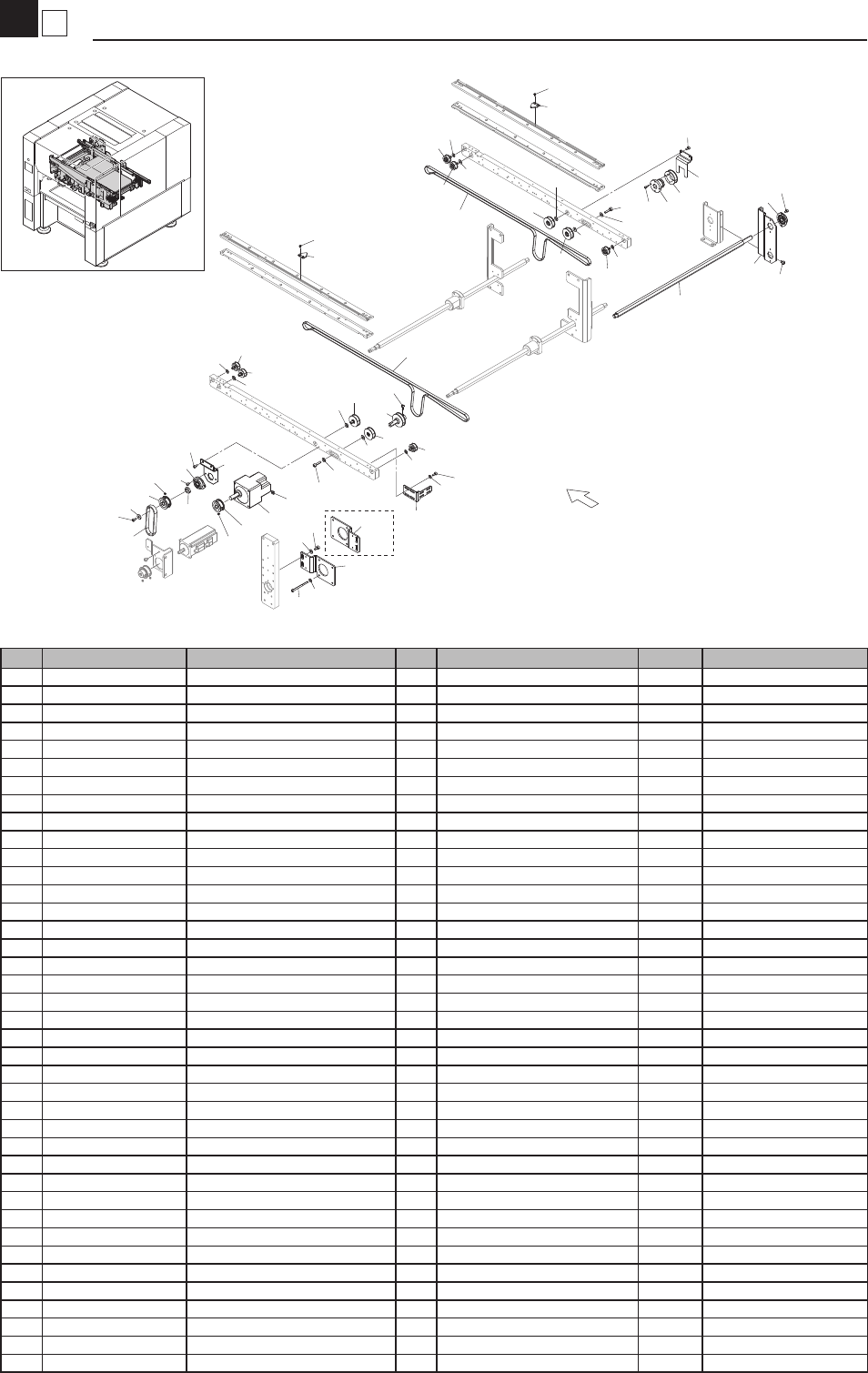

Main Conveyor Sub Assy A-1
Conveyor Unit
KKE-1003
4
20
20
10
20
46
16
25
25
33
38
38
38
38
37
37
37
37
34
16
46
34
1540mm
1540mm
33
3
2
26
43
36
42
24
8
8
44
18
44
44
1
1
46
15
21
41
46
45
19
12
31
44
22
22
5
9
9
24
42
26
7,32
7,32
14
27
13
35
23
17
4
OLD
8
24
42
28
29
42
24
OLD
8
9
9
7,32
7,32
(R>L)
This llustration shows 1250mm
45
6
45
45
11
11
45
6
30
40
39
39
40
36
43
(L>R)
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKE-M9103-00 PLATE A 2
2 KKE-M9104-00 PLATE B 1
3 KKE-M9105-00 PLATE C 1
4
KKT-M9118-00 STAND, DUMP BOX 1 Depth 8mm NG MG20027-2010/2/9
KKE-M9110-00 STAND, DUMP BOX 1 Depth 11mm
5 KKE-M9115-00 GUIDE D 1
6
KKE-M9116-00 LM RAIL & BLOCK 15, 510
2
7
KKE-M9121-01 FRAME, CONVEYOR 2 1250mm L=619 NG MFX0132-2009/12/4
KKE-M9121-00 FRAME, CONVEYOR 2 1250mm L=619
8
KKE-M9122-02 PLATE 2D, GUIDE 2 NG MFX0132-2009/12/4
KKE-M9122-01 PLATE 2D, GUIDE 2
9
KKE-M9123-02 PLATE 1B, GUIDE 2 NG MFX0132-2009/12/4
KKE-M9123-01
PLATE 1B, GUIDE 2
10 KKE-M9131-00 PLATE, HNS. 1
11 KKE-M9186-00 PLATE 2, GUIDE 2
12 KKE-M919B-00 GUIDE B 1
13 KKE-M919J-00 PLATE, SENSOR 1
14 KKE-M919K-00 PLATE, DOG 1
15 KKE-M919U-00 DAMPER A 1
16 KKE-M9A00-00 BALL SCREW W 2
17 KKE-M652M-00 SENSOR W1 ORG ASSY 1
18 KGA-M9113-00 GUIDE 1, END 1 (L>R back side)
19 KGA-M9114-00 GUIDE 2, END 1 (L>R front side)
20 91312-04008 BOLT HEX. SOCKET HEAD 6
21 KHY-M9154-00 SPACER 1
22 KHY-M9620-00 PIN, MARK 1
23 91312-03005 BOLT HEX. SOCKET HEAD 2
24 91312-03006 BOLT HEX. SOCKET HEAD 14
25 91312-04016 BOLT HEX. SOCKET HEAD 8
26 91312-06016 BOLT HEX. SOCKET HEAD 1
27 92902-04600 WASHER, PLAIN 2
28 KKE-M9104-10 PLATE B 1 L>R
29 KKE-M9105-10 PLATE C 1 L>R
30 KKE-M9115-10 GUIDE D 1 L>R
31 KKE-M919B-10 GUIDE C 1 L>R
32
KKE-M9121-51 FRAME, CONVEYOR 2 1540mm L=774 NG MFX0132-2009/12/4
KKE-M9121-50 FRAME, CONVEYOR 2 1540mm L=774
33 KKE-M9124-00 PLATE 2, GUIDE 2 1540mm
34 KKE-M9125-00 GUIDE 1-1 2 1540mm
35 91312-05010 BOLT HEX. SOCKET HEAD 2
36 97602-04306 SCREW, PAN HEAD W/W 13
37 91312-03008 BOLT HEX. SOCKET HEAD 12 1540mm
38 92902-03200 WASHER PLAIN 6 1540mm
39 KH2-M9121-00 BEARING 2
40 91312-04006 BOLT HEX. SOCKET HEAD 6
41 92902-04200 WASHER, PLAIN 1
42 91312-03008 BOLT HEX. SOCKET HEAD 16
43 $NK-2N NYLON CLIP 13
44 91312-04012 BOLT HEX. SOCKET HEAD 10
45 91312-04014 BOLT HEX. SOCKET HEAD 27
46 91312-06012 BOLT HEX. SOCKET HEAD 12
30
1
31
10
7
43
41
8
45
42
27
31
3
41
36
24
25
6
38
16
44
29
35
39
37
13
18
18
22
34
30
2
1
17
17
40
19
40
19
23
23
15
44
21
26
9
14
21
26
30
41
43
2
30
29
11
12
21
32
5
4
20
28
21
33
20
(R>L)
This llustration shows 1250mm
L>R
L>R
44
7
8
Main Conveyor Sub Assy A-2
Conveyor Unit
KKE-091105
No. Part No. Part Name Q'ty Remarks
Compati. Revision No.-date
1 KKE-M9101-00 PLATE 1 2
2 KKE-M9102-00 PLATE A 2
3 KKE-M9106-00 BRKT., STOPPER 1
4 KKE-M9107-01 SHAFT 1
5 KKE-M919C-00 PULLEY 1
6 KKE-M9111-00 BRKT., MOTOR W 1
7 KKE-M9112-01 PLATE 2, TENSIONER 1
8 KKE-M9126-00 DAMPER A 1
9 KKE-M9129-00 BELT 882-3GT-9 1
10 KKE-M9143-A0 PULLEY ASSY. 1
11 KKE-M918K-00 BRKT. 2, TENSIONER 1
12 KKE-M9132-00 BRKT. 1, TENSIONER 1
13 KKE-M918T-00 SHAFT 1
14 KG7-M9111-01 PULLEY 1 1
15 KG7-M9112-01 PULLEY 2 1
16 KG7-M9113-01 PULLEY 3 1
17 KHW-M9139-00 PLATE, BRG. 2
18 90933-01J001 BEARING 2
19 90933-01J200 BEARING 2
20 90933-03J608 BEARING 2
21 90990-28J076 WASHER, PLAIN 2
22 90990-28J082 WASHER, PLAIN 1
23 90990-41J006 COLLAR 2
24 90K63-201443 AC SERVO MOTOR 1
25 91312-03008 BOLT HEX. SOCKET HEAD 8
26 91312-04012 BOLT HEX. SOCKET HEAD 2
27 91312-04040 BOLT HEX. SOCKET HEAD 1
28 91312-05035 BOLT HEX. SOCKET HEAD 1
29 91312-06012 BOLT HEX. SOCKET HEAD 4
30 91312-06025 BOLT HEX. SOCKET HEAD 12
31 91312-06060 BOLT HEX. SOCKET HEAD 4
32 91312-05030 BOLT HEX. SOCKET HEAD 1
33 KKE-M9132-A0 TENSIONER 1 ASSY 1
34 97002-05035 BOLT HEXGON 1
35 KKE-M9108-00 COVER, PULLEY 1
36 KKE-M9106-10 BRKT., STOPPER 1 L>R
37 KKE-M9108-10 COVER, PULLEY 1 L>R
38 KKE-M9111-10 BRKT., MOTOR W 1 L>R
39 91312-05006 BOLT HEX. SOCKET HEAD 2
40 91312-04008 BOLT HEX. SOCKET HEAD 12
41 91312-05010 BOLT HEX. SOCKET HEAD 8
42 92902-04200 WASHER, PLAIN 8
43 92902-05200 WASHER, PLAIN 14
44 92A08-04303 SCREW, SET 8
45 KHY-M9152-00 SPACER 1
1
34
27
30
14
18
33
19
30
5
12
24
30
30
28
36
6
14
29
24
31
30
31
18
31
14
30
30
5
6
30
14
7,35
17
25
29
13
10
15
8
32
32
39
38
16
37
15
20
23
31
3
26
2
11
9
21
16
22
4
23
28
30
19
7,35
33
(R>L)
L>R
7
9
Main Conveyor Sub Assy A-3
Conveyor Unit
KKE-091105
No. Part No. Part Name Q'ty Remarks
Compati. Revision No.-date
1 KKE-M9109-00 BRKT., CONV. MOTOR 1
2 KKE-M9114-00 BRKT. 2, SPLINE 1
3 KKE-M9117-00 SPLINE 1 1
4 KKE-M9118-00 BRACKET, COLLAR 1
5 KKE-M9119-A0 PULLEY CONV. ASSY. 2
6 KKE-M9120-A0 PULLEY CONV. ASSY 2
7 KKE-M9127-00 BELT 1, CONVEYOR 2 1250mm L=1400mm
8 KKE-M9128-00 BELT 222-3GT-9 1
9 KG2-M9108-11 COLLAR CONVEYOR 1
10 KGK-M9170-00 DC MOTOR ASSY. 1
11 KGT-M9135-00 PULLEY 1, SPLINE 1
12 KGT-M915U-00 PULLEY DRIVE, F 1
13 KGT-M9193-00 NUT PLATE 4
14 KGY-M9140-A0 PULLEY, CONV. ASSY 4
15 KH2-M9105-11 PULLEY, MOTOR:P30- 2
16 KH2-M9121-00 BEARING 2
17 KHY-M912A-00 BRKT., SENSOR 1
18 KKE-M9135-00 PLATE, EDGE 2 8
19 KV1-M9140-A0 PULLEY CONV. ASSY. 2
20 90990-28J070 WASHER, PLAIN 1
21 91312-03010 BOLT HEX. SOCKET HEAD 4
22 91312-04006 BOLT HEX. SOCKET HEAD 2
23 91312-04008 BOLT HEX. SOCKET HEAD 5
24 91312-04010 BOLT HEX. SOCKET HEAD 3
25 91312-04055 BOLT HEX. SOCKET HEAD 4
26 91312-05006 BOLT HEX. SOCKET HEAD 2
27 91312-05010 BOLT HEX. SOCKET HEAD 2
28 91312-05020 BOLT HEX. SOCKET HEAD 2
29 92902-04200 WASHER, PLAIN 6
30 92902-05200 WASHER, PLAIN 10
31 92902-05600 WASHER, PLAIN 4
32 92A08-04303 SCREW, SET 4
33 98702-03005 SCREW, FLAT HEAD 16
34 KKE-M9109-10 BRKT., CONV. MOTOR 1 L>R
35 KKE-M9127-50 BELT 1, CONVEYOR 2 1540mm L=1710mm
36 KKE-M9113-00 BRKT.1, SPLINE 1
37 90990-41J006 COLLAR 1
38 91312-04005 BOLT HEX. SOCKET HEAD 2
39 91312-04008 BOLT HEX. SOCKET HEAD 2
