1 6 22 4 16 21 9 5 7 8 18 18 17 10 23 10 10 1 1 10 12 12 14 15 19 20 20 13 3 2 3 2 8 1 Multi Camera & Light Assy Camera KKE-091105 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KHY -M73C0-01 C…
15
7

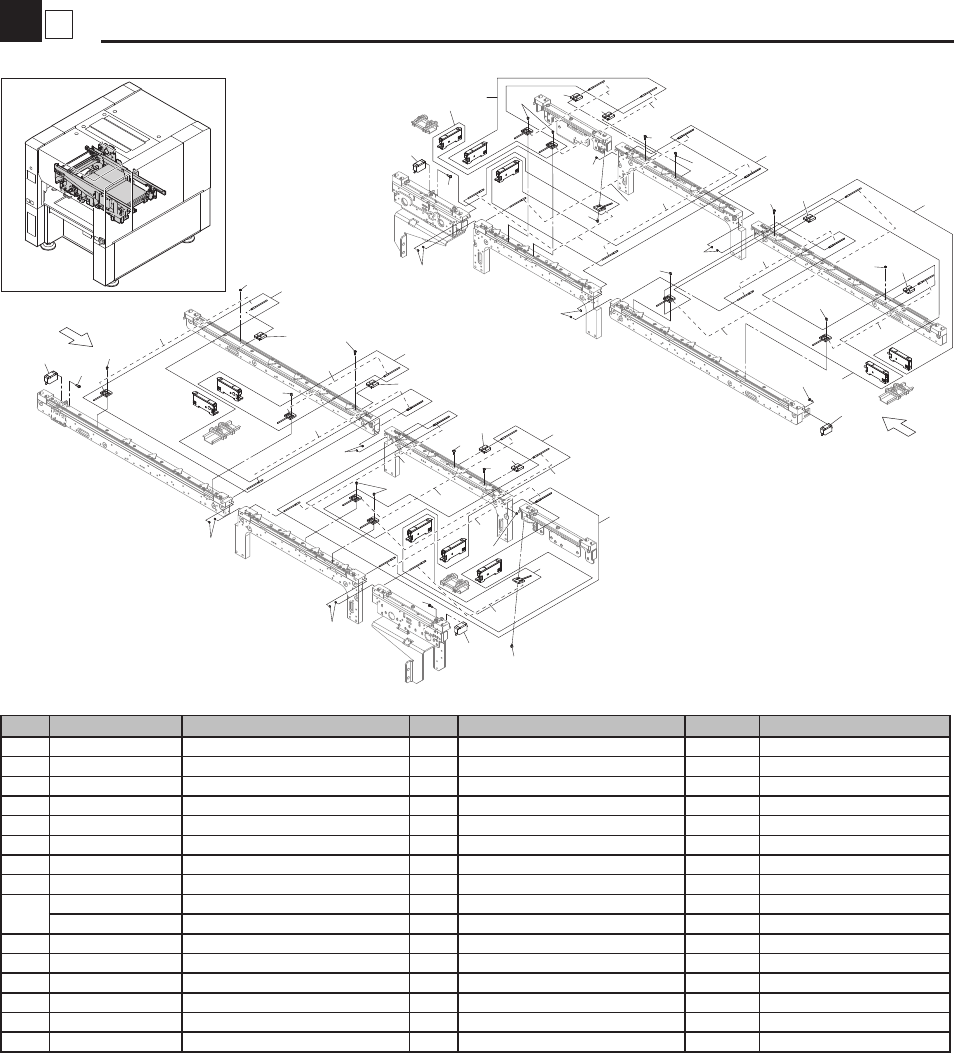

Sensor
Conveyor Unit
KKE-1002
8
1
12
4
5
10
11
9
9
8
7
8
1
7
8
4
11
11
13
3
9
2
11
3
9
9
12
14
14
12
12
12
12
(R>L)
13
(L>R)
13
13
13
13
13
13
13
13
10
11
11
9
9
15
15
15
14
6
14
14
14
15
14
9
15
14
14
15
14
5
6
2
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKE-M652P-00 SENSOR ENT ASSY 1
2 KKE-M652S-01 SENSOR CV1 ASSY 1
3 KKE-M652T-00 SENSOR POS1 ASSY 1
4 KKE-M652U-00 SENSOR CVE ENT ASSY 1
5 KKE-M652V-00 SENSOR POS2 ASSY 1
6 KKE-M652W-00 SENSOR CV2 ASSY 1
7 KKE-M652R-00 SENSOR EXIT ASSY 1
8 97602-03310 SCRWE, PAN HEAD W/W 4
9
KHW-M9157-00 HOLDER, SENSOR 4 MFX0132-2009/12/4
KHW-M9157-00 HOLDER, SENSOR 3
10 91312-03005 BOLT HEX. SOCKET HEAD 2
11 91312-03008 BOLT HEX. SOCKET HEAD 6
12 98502-03004 SCREW, PAN HEAD 8
13 92A08-03304 SCREW, SET 8
14 KHM-M654C-01 SENSOR, FIBER 2 1
15 KHM-M654B-01 SENSOR, FIBER 1 1
1
6
22
4
16
21
9
5
7
8
18
18
17
10
23
10
10
11
10
12
12
14
15
19
20
20
13
3
2
3
2
8
1
Multi Camera & Light Assy
Camera
KKE-091105
No. Part No. Part Name Q'ty Remarks
Compati. Revision No.-date
1 KHY-M73C0-01 C+L W50-H272-NON 1
2 91312-06020 BOLT HEX. SOCKET HEAD 2 M6X20
3 92902-06200 WASHER PLAIN 2
4 KJJ-M7512-01 COVER, GLASS 1
5 KJJ-M7513-00 DIFFUSER, COAX 1
6 KJJ-M7516-01 COVER, LIGHT UNIT 1
7 KJJ-M7518-01 FRAME, MAIN LIGHT 1
8 KJJ-M7522-01 PLATE, COAX. 1
9 KJJ-M7525-00 SPACER 4
10 KJJ-M7526-01 PLATE, GLASS 4
11 KJJ-M7542-00 AR SHEET 1
12 KJJ-M755S-02 M.LIGHT BOARD SET 1
13 KJJ-M66N2-00 HNS, M.LIGHT COAX. 1
14 KJJ-M66N9-01 HNS, M.LIGHT SUB CX. 1
15 KJJ-M66NA-01 HNS, M.LIGHT MAIN 1
16 KJJ-M7570-00 SPACER 12
17 90563-03J250 SPACER BOLT 4
18 90563-03J300 SPACER BOLT 2
19 98502-03004 SCREW PAN HEAD 4
20 98502-03006 SCREW PAN HEAD 6
21 98902-03004 SCREW BINDING HEAD 12
22 98902-03006 SCREW BINDING HEAD 2
23 98902-03010 SCREW BINDING HEAD 4
1
9
Blow Station / Dump Box
Blow Station
KKE-1001
1
10
3
4
4
15
16
15
16
19
19
7
7
5
21
5
21
12
13
18
11
11
8
29
23
17
23
2
20
22
6
9
14
26
25
24
27
28
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKE-M9901-00 BASE, B. STN. 1
2 KHW-M9902-00 PLATE, BASE 1
3 KHY-M9903-00 BLOCK, BLOW ST. 1
4 KHW-M9904-00 BRACKET, SENSOR 2
5 KHW-M9905-00 PLATE, REFLECT 2
6 KHW-M9906-A0 VALVE ASSY. 1
7 KKE-M652K-00 SENSOR BLOW ST ASSY 1
8 KGR-M9934-01 INLINE FILTER 1
9 K40-M8598-10 PLUG 1 1
10 $NJ-32 UNIVERSAL BUSH 1
11 $NK-2N NYLON CLIP 2
12 $PF JOINT 1
13 $TL6-01M JOINT 1
14 $TL6-02 JOINT 1
15 90115-02J006 BOLT HEX. SOCKET HEAD 4
16 90990-41J066 COLLAR 4
17 91312-03020 BOLT HEX. SOCKET HEAD 2
18 91312-04008 BOLT HEX. SOCKET HEAD 4
19 91312-04010 BOLT HEX. SOCKET HEAD 4
20 91312-06016 BOLT HEX. SOCKET HEAD 2
21 92012-03008 BOLT, BUTTON HEAD 4
22 92902-06200 WASHER, PLAIN 2
23 97602-04308 SCREW, PAN HEAD W/W 2
24 KKE-M36A2-00 STAND, DUMP BOX 1
25 KHY-M99D1-00 DUMP BOX 1
26 KHY-M99D2-00 DIFFUSE PLATE 1
27 91312-06016 BOLT HEX. SOCKET HEAD 2
28 92902-06200 WASHER, PLAIN 2
29 KGR-M9934-F0 FILTER 1 spare
