1OM-1603

2-6

2. Operation Screen : Chap.2

[2] Status Indicator

Current Operation Mode, Product Name (Pattern Program Name), Operation

Window Hierarchical Position (Host Window) and Name are displayed.

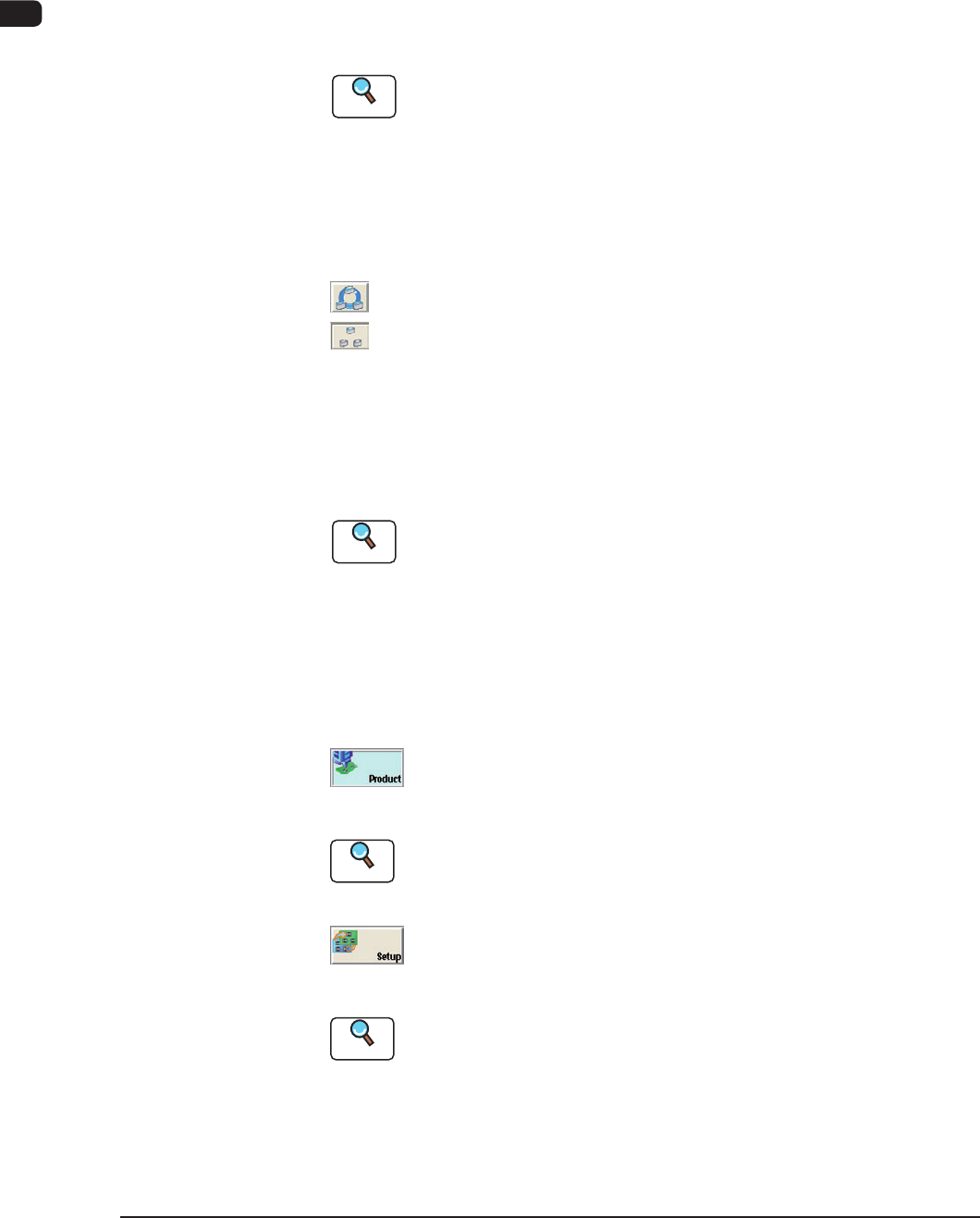

[3] [Login User] Button

The current login user is indicated using an icon.

When the [Login User] button is pressed, the "Login User Selection" window

appears and the login user change is available.

Reference

Refer to "1.2 Login User Selection" in Chapter 2 for the login user change.

[Line] Button

Using this button, the connection to the machine in the line is executed.

Each pressing the [Line] button connects or disconnects the machine in the

line alternatively.

This shows that the machine in the line is connected.

This shows that the machine in the line is disconnected.

[4] Main Menu Bar

The main menu buttons are arranged on the menu bar.

When any of the buttons is pressed, the corresponding menu operation

window appears.

Reference

Refer to "2. Product Window" in Chapter 1, Volume 2, for the details of

the main menu bar.

[5] Common Menu Bar

The common menu buttons are arranged on the bottom of the touch screen.

When each of the common menu buttons is pressed, the corresponding

operation window appears.

[Product] Button

When this button is pressed, the "Product" window is displayed.

Reference

Refer to "Menus for Automatic Operation" in "Chapter1 (Volume 2)" for

the detailed information on the "Product" window.

[Setup] Button

When this button is pressed, the "Set-up" window is displayed.

Reference

Refer to "Menus for Setup Operation" in "Chapter 6 (Volume 2)" for the

detailed information on the "Set-up" window.

1108-005

1OM-1603

2-7

2. Operation Screen : Chap.2

1108-004

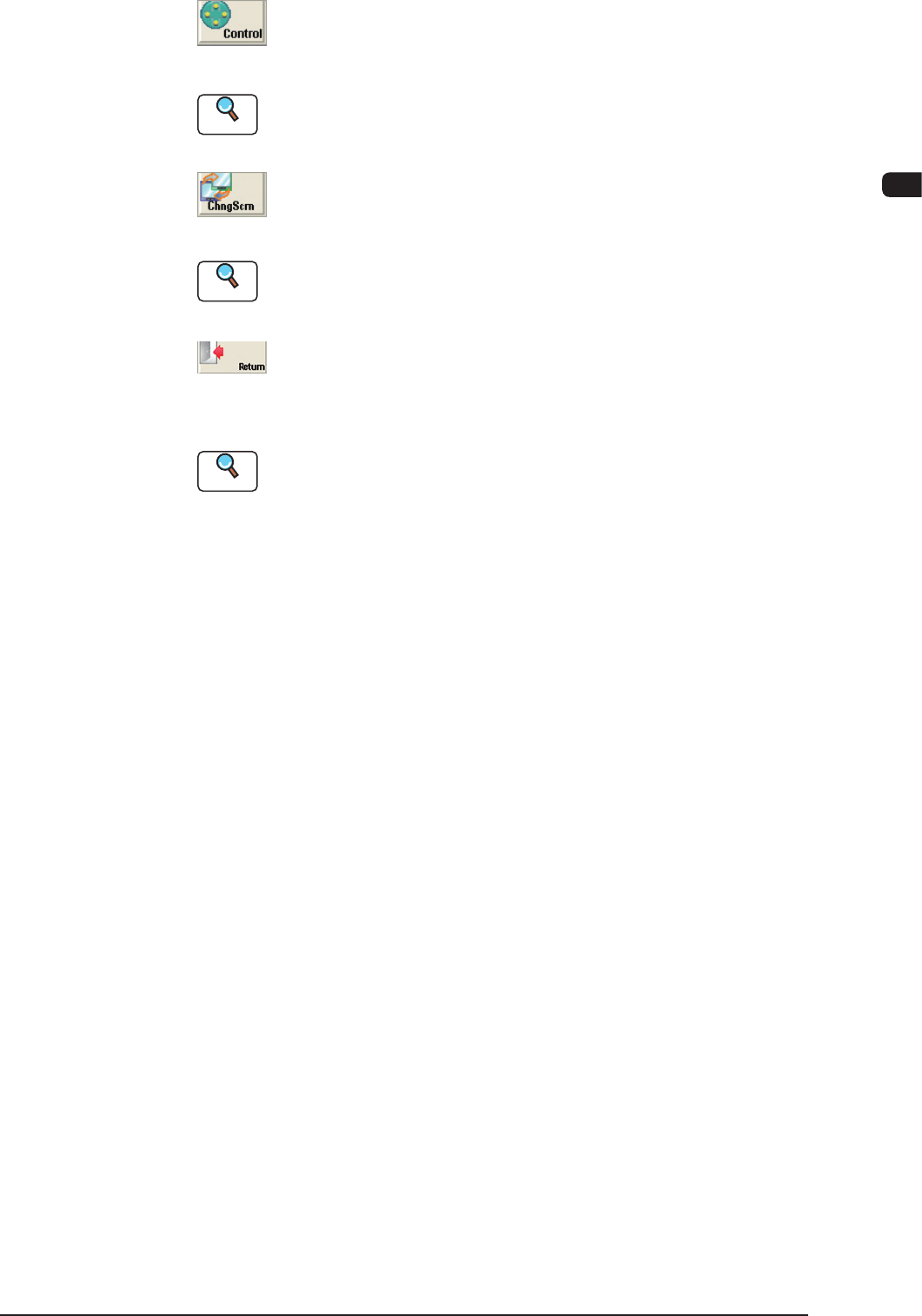

[Control] Button

When pressed, this button opens the "Control" window.

Reference

Refer to "2.1 Control Menu" in Chapter 2 for the detailed information on

the "Control" window.

[ChngScrn] Button

When this button is pressed, the "Recognition Image" window is displayed.

Reference

Refer to "2.2 Recognition Window" in Chapter 2 for the detailed

information on the "Recognition Image" window.

[Return] Button

When this button is pressed, the operation window is closed and the TOP

window is returned.

Reference

Refer to "4.1 LOGOUT" in Chapter 2 for the detailed information on the

"LOGOUT " window.

[6] Operation / Display Section

Device Image, Operation Buttons and Related Data are displayed. The

displayed data is different in each the operation window.

[7] Tabs and Tab Sheets

When the window consists of two or more tab sheets, there are tabs or

buttons on the upper sections of the window. On the tab, the name of the

sheet is indicated. When the tab is pressed, the sheet (tab sheet) appears.

[8] Status Bar

The Login Type, Window No. Current Date and Time are displayed on the

status bar.

1OM-1603

2-8

2. Operation Screen : Chap.2

1108-004

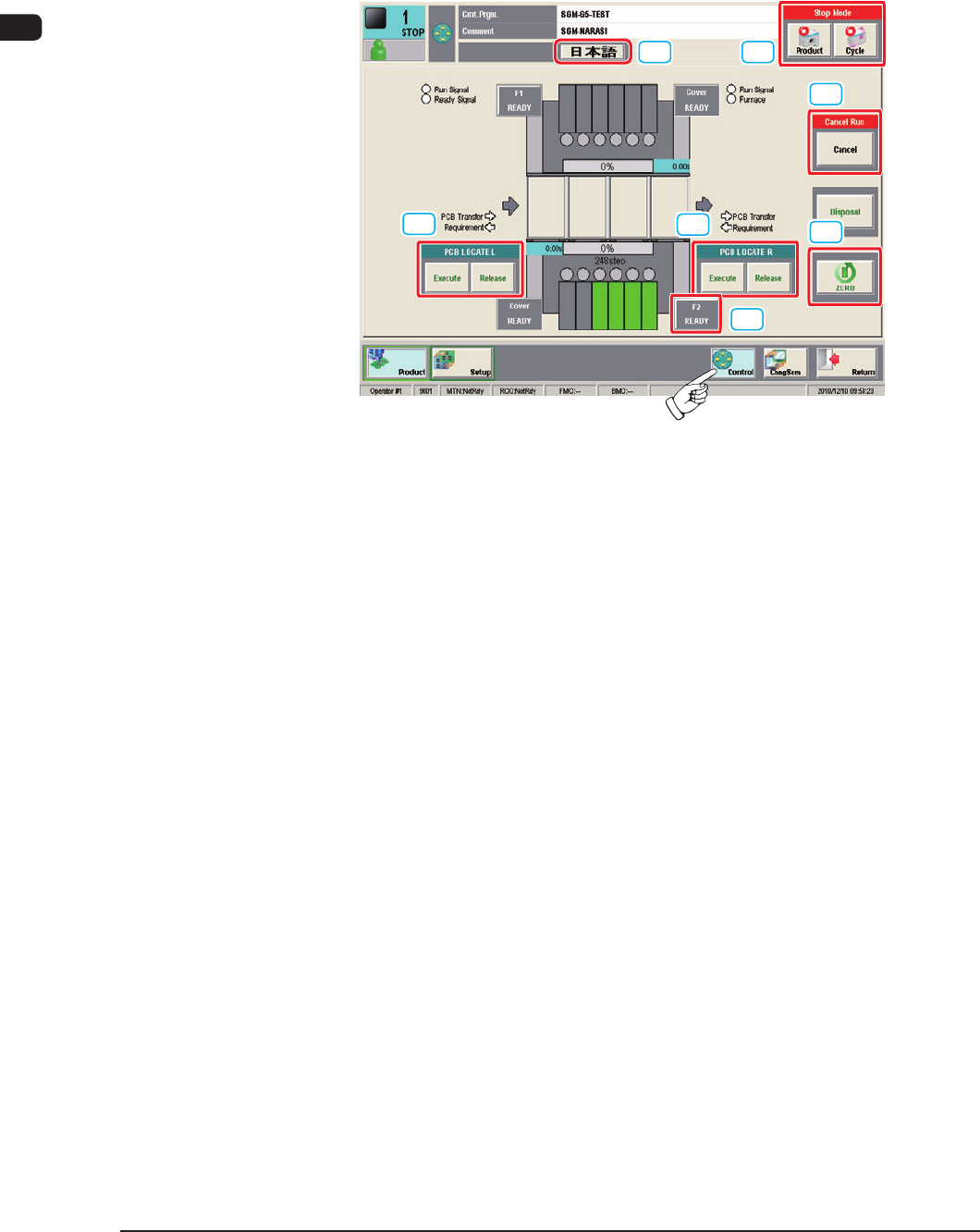

2.1 Control Menu

When the [Control] button is pressed on the common menu bar, the "Control

menu" window appears.

In the "Control menu" window, groups of the basic operation buttons are arranged.

[1]

[3] [6]

[4]

[5]

[2]

F1B7

[1] PCB LOCATE

L,R

[Execute] Button

When the [Execute] button is pressed and within 10 seconds, the [START]

button on the operation panel is pressed, the backup base and clamp are lifted

and the PCB on the PCB positioning unit is positioned.

[Release] Button

When the [Release] button is pressed and within 10 seconds, the [START]

button on the operation panel is pressed, the backup base and clamp are

lowered and the positioned PCB is released.
