1OM-1603
2-9
2. Operation Screen : Chap.2
1108-003
[2] [F1 READY] Button
[F2 READY] Button
When the [F1 READY] button or [F2 READY] button is pressed, the feeder
ready switches on the main machine are turned ON/OFF, and feeder clamp
holding bar is locked/unlocked.
Note
The moving up/down operation of the feeder base is unavailable. If
needed, perform it using the feeder ready switches on the main machine.
Reference
Refer to "2.2.2.1 Feeder Ready Switches" and "2.2.2.2 Cover Lock
Switches" in Chapter 1, for the feeder ready switches on the main machine.
[3] Stop Mode
[Product] Button
When this button is pressed, after the production of the PCB which is in
the course of the production, is completed, the PCB is discharged and the
automatic operation is stopped.
[Cycle] Button
When this button is pressed, after the component placement operation on the
PCB which is in the course of the production, is completed, the automatic
operation is stopped.
[4] Cancel Run
[Cancel] Button
When the machine status is turned to "Pause", the [Cancel] button is
displayed. When the [Cancel] button is pressed, the "Pause" status is
cancelled and the machine is in the "Stop" mode.
[5] [ZERO] Button
After the [ZERO] button is pressed and within 10 seconds, the [START]
button on the operation panel is pressed, all the axes are zeroed.
[6] Language Change Buttons
Using these buttons, the language is changed to the one indicated on the
button.
1OM-1603
2-10
2. Operation Screen : Chap.2
1012-003
2.2 Recognition Window
When the [ChngScrn] button is pressed on the main menu bar, the touch screen
indication is changed to "Recognition Image" window.

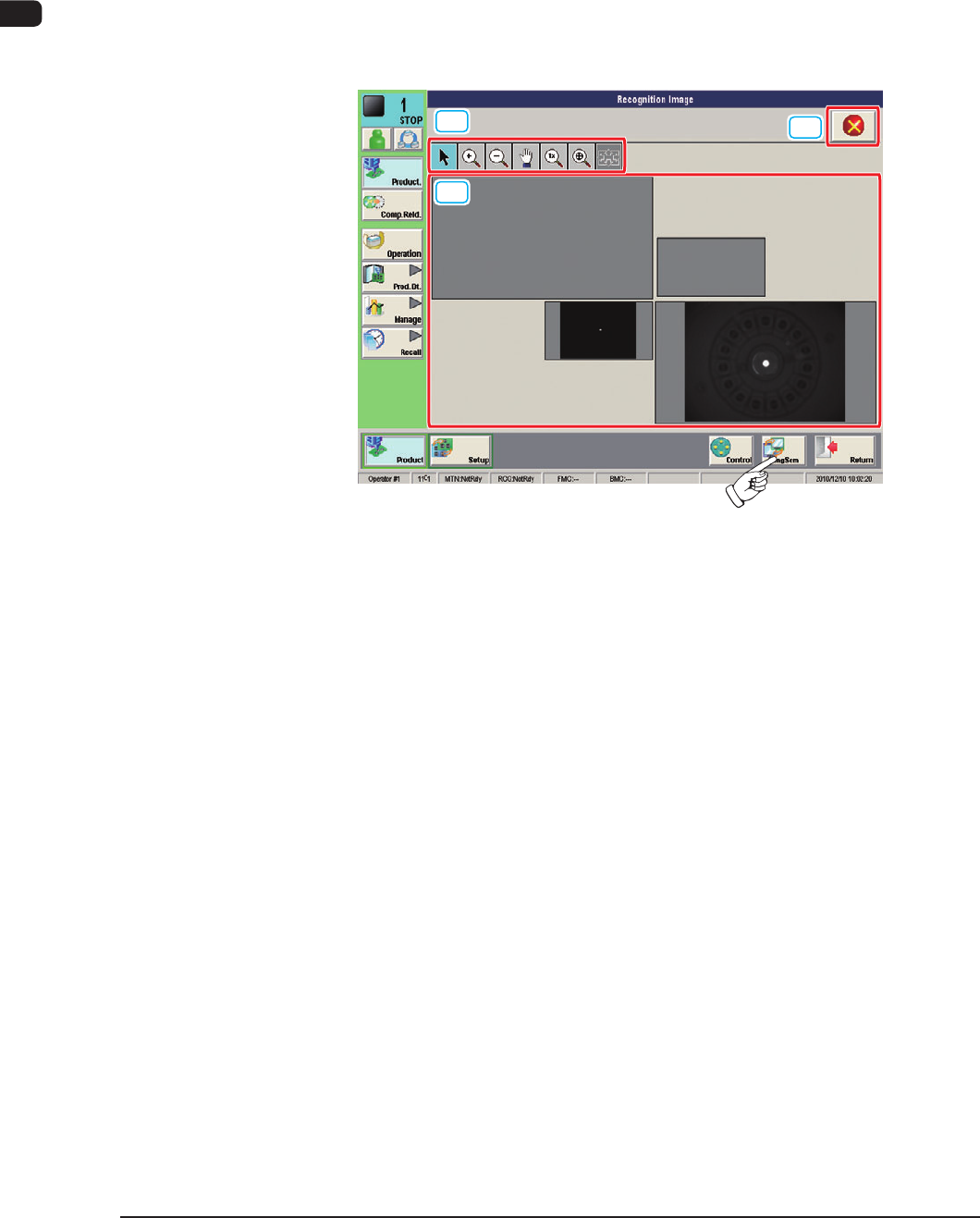

2.2.1 Recognition Window in Normal Operation
When the "Recognition Image" window is displayed in the "RUN" mode, the
following window appears.
[1]
[3]
[2]
F1B8
[1] Recognition Image Display Domain
The recognition images (camera images) in each block are displayed.
The multi- (2 beams simultaneously) or single (1 beam) display can be
selected.
Selecting the recognition image to be displayed, changes the recognition
image in the recognition image display domain.
1OM-1603
2-11
2. Operation Screen : Chap.2
1012-003
[2] Displayed Image Operation Buttons
The following buttons change the mode for the enlargement or movement
operations, for the image displayed in the [1] Recognition Image Display
Domain.
[
] Button :
Normal Operation Mode
[
] Button :
Image Enlargement Mode
After changing to the image enlargement mode using the
[
] button (the shape of the pointer is changed to ),
when the image to be enlarged is touched, or the left button
of the mouse is clicked on the image, the image is enlarged
from the pointer position as the center.
When the image is to be enlarged with its position xed,
place the pointer on the center of the image before the
enlargement operation.
[
] Button :
Image Reduction Mode
After changing to the image reduction mode using the
[
] button (the shape of the pointer is changed to )
when the image to be reduced is touched, or the left button
of the mouse is clicked on the image, the image is reduced
from the pointer position as the center.
When the image is to be reduced with its position xed,
place the pointer on the center of the image before the
reduction operation.
[
] Button :
Image Movement Mode
After changing to the image movement mode using the
[
] button (the shape of the pointer is changed to
mark), drag the image to be moved (with the left button on
the mouse pressed) to move.
