1OM-1603 2-14 3. Entry of Each Parameter : Chap.2 1 108-006 3. Entry of Each Parameter The following describes how to enter each parameter in an operation window. 3.1 How to enter numerical values Procedure (1) In the op…
1OM-1603
2-13
2. Operation Screen : Chap.2
1012-002
[
] Button :
Image Matching Mode
When the [
] button is pressed, after the recognition
image is displayed in the single display mode, the image
movement buttons appear.
F1B9
Image Movement Buttons ( Buttons)
The image is moved in the arrow direction of the selected button.
[
] Button :
Change Button
Pressing this button changes the image in the front/rear
judgement or polarity judgement operation.
[
] Button :
Multi-Display Mode Button
Pressing this button changes to the multi-display mode
window.
[3] Close Button ([
] Button)
Pressing this button closes the recognition window in the image matching
mode.
1OM-1603
2-14
3. Entry of Each Parameter : Chap.2
1108-006
3. Entry of Each Parameter
The following describes how to enter each parameter in an operation
window.
3.1 How to enter numerical values
Procedure
(1) In the operation window, press any button for the item for which numerical
value data entry is required.
(The entry window will appear).
Numerical Data Entry (Ten-Key pad) Window Example F1B10
(2) Enter a numerical value referring to the effective range displayed in the
lower section of the window.
(The entered data will be displayed in the display box in the upper section of
the entry window).
(3) When the [Set] button is pressed after the conrmation of the entered value,
the window for the data entry closes and the entered data appears in the
operation window.
To cancel the correction of the entered data or the data entry, use the
following buttons.
[BS] Button
: Deletes a character to the left of the cursor.
[AC] Button
: Deletes the data displayed in the display box.
[
] Button
: Makes it possible to retry the data entry operation.
Reference
Refer to
"
3.2 How to enter a string of characters
"
in Chapter 2 for the
detailed information on how to enter character data such as a password.
1OM-1603
2-15
3. Entry of Each Parameter : Chap.2
1108-005
3.2 How to enter a string of characters
Procedure
(1) In the operation window, press any button for the item for which character
data entry is required.
(The entry window for the character data will appear).

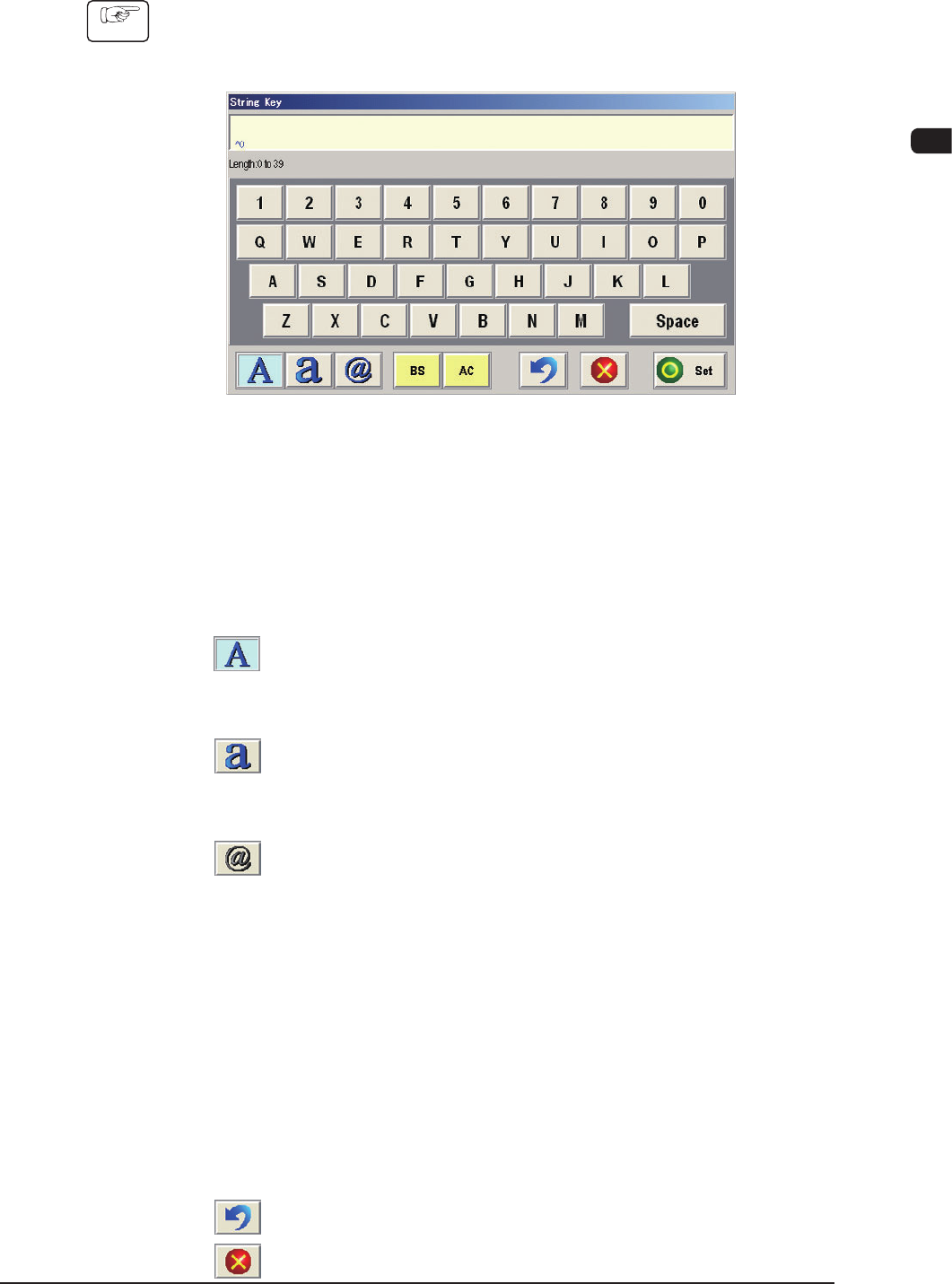

Character Data Entry (Virtual Keyboard) Window Example ("Password Entry" Window) F1B11
(2) Enter the characters using the keys in the input window.
(The entered data is displayed in the display box in the upper section of the
entry window).
Use the following buttons to facilitate your data entry (capital letters, small
letters, and symbols).
[
] Button :
Use this button to enter capital letters. When
pressed,
this button turns blue, indicating that only capital
letters can be entered
.
[ ] Button :
Use this button to enter small letters. When pressed,
this
button turns blue, indicating that only small letters
can be entered.
[ ] Button :
Use this button to enter symbols.
When pressed, this button turns blue, indicating that
symbols can easily be entered.
(3) Check the entered value and press the [Set] button.
(The entry window will be closed and the entered data will be displayed in
the operation window).
To cancel the correction of the entered data or the data entry, use the
following buttons.
[BS] Button
: Deletes a character to the left of the cursor.
[AC] Button
: Deletes the data displayed in the display box.
[
] Button
: Makes it possible to retry the data entry operation.
[
] Button
: Cancels the data entry operation.
