1OM-1603
3-1
1. Automatic Operation : Chap.3
1108-005
1. Automatic Operation
Shown below is the ow of the automatic operation.
1.1.1 Confirmation of Power Supply
1.1.2 Confirmation of Air Pressure
1.1.3 Confirmation of Cover Section
1.1.4 Safety Confirmation of Machine Surroundings
1.2.1 Power ON
1.2.2 Preparation for Components
1.2.3 Preparation for PCBs
1.3.1 Starting the system program
1.3.2 Login Operation
1.3.3 "Product" Window
2. Pattern Program Change
3. Component Replenishment
4. PCB Replenishment
5.1 Stop of Machine Operation
5.2 Interruption of Automatic Operation
5.5.1 Stop of Automatic Operation
5.5.2 Logout
Inspections before
Automatic Operation
Preparation before
Automatic Operation
Start of Automatic
Operation
Replenishment of
Components and PCBs
Stop, Interruption, and
Restart of Automatic
Operation
End of Automatic Operation
Program Change Operation
Flow of Automatic Operation F1C1
1OM-1603
3-2
1. Automatic Operation : Chap.3
1108-005
1.1 Inspections before Automatic Operation
1.1.1 ConrmationofPowerSupply
Conrm that the main breaker of the power supplied to the machine is turned
"ON".
•
Power Supply : 200 ± 20 V AC, 3-Phase
•
Apparent Power : Approx. 7.4 kVA
1.1.2 ConrmationofAirPressure
Conrm that the air pressure is set to the following.
•
Main Pressure : 0.45 MPa (4.6 kgf/cm
2
)
Note
The above represents the pressure specied while the machine is in the
"STOP" mode.
Min. 0.4 MPa (4.1 kgf/cm
2
) is required while the machine is running.
•
Air Blowing Pressure : 0.05 MPa (0.5 kgf/cm
2
)
Main Pressure
0.45 MPa (4.6 kgf/cm
2
)
Air Blowing Pressure
0.05 MPa (0.5 kgf/cm
2
)
F1C2
Notice
(a) Do not change the setting of the air pressure. Otherwise, the
pneumatic devices will not work normally.
(b) Be sure to use dry and clean air. If moisture, oil, dust, etc., enter
a pneumatic device (air cylinder, etc., used in this machine), it will
result in a breakdown of the machine.
1OM-1603
3-3
1. Automatic Operation : Chap.3
1012-005

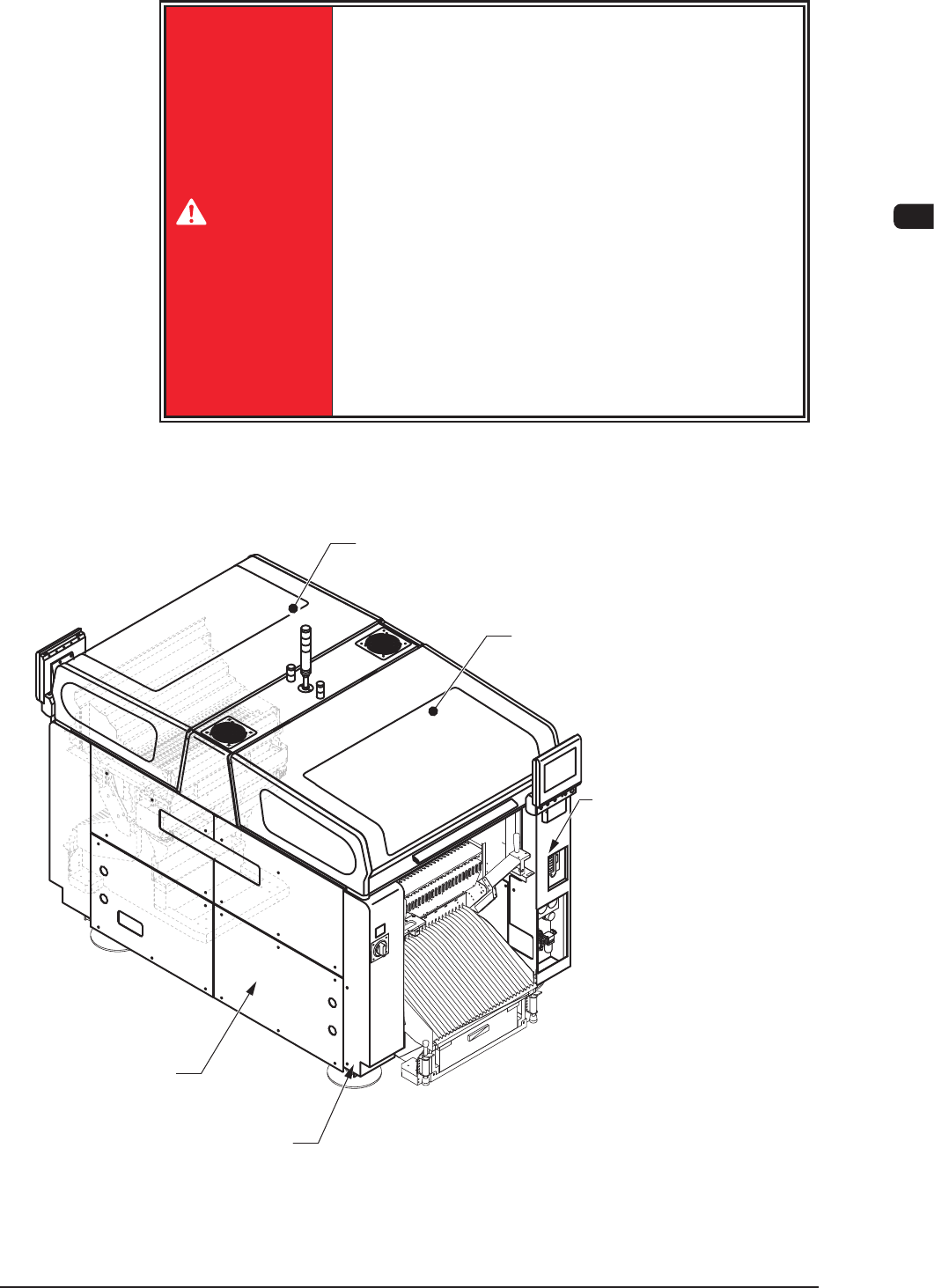

1.1.3 ConrmationofCoverSection
DANGER
There are strong motorized and high-voltage areas
inside the machine. Special caution should be paid
not to touch them.
Doing otherwise will cause personal injury (serious
accident).
•
Onlyqualiedmaintenancepersonnelshould
detach the covers.
•
The machine should be operated with the covers
being attached.
•
If a cover is detached, be sure to reattach it.
•
Be sure to close the transparent covers (door type)
before operating the machine.
•
Do not disengage the interlock mechanism of the
transparent covers (door type).
Conrm that the transparent covers above the beams, the safety covers around the
base, the storage cover of electrical part box (located around the base) are closed.
Safety Cover
(located around the base)
Transparent Covers
(Door Type, located over
the beams)
Transparent Covers
(Door Type, located over the beams)
Storage Cover of
Electrical Part Box
(located around the base)
Safety Cover
(located around the base)
Machine Front Side
F1C3
