1OM-1603
3-24
2. Pattern Program Change : Chap.3
1012-005
2.3.3 Setups for PCB Support Pins and Conveyor Width
If the conveyor width is not correctly set, the PCBs cannot be transferred.
Note
Before starting the setup work, compare the status of PCBs (size, thickness,
existence of components placed previously on the back of PCB, etc.) to be
handled in the previous pattern program (the production model before the
program change operation) with that of PCBs to be handled after the program
change operation. After conrming the difference, determine whether or not the
conveyor width and PCB support pins should be set up.
Reference
Refer to "4. Sprt-Pins window" in Chapter 6, Volume 2 for the details.
2.3.4 Preparation for Vacuum Nozzles
Set the vacuum nozzles registered in the placement head / nozzle data of the
pattern program (for the production model).
Note
(a) When the total number of vacuum nozzles exceeds "15" before or after a
program change operation, perform the "Nozzle Reset" operation and then
the "Nozzle Change (Attachment)" operation.
(b) The original nozzle stocker addresses (from which the vacuum nozzles are
attached) are stored in memory of the machine. Therefore, each vacuum
nozzle is stored back in the original stocker address.
(c) When the support pin automatic setup is to be performed, set the nozzle
(PK01).
Notice
•
Be sure to attach the vacuum nozzles correctly in place.
When a vacuum nozzle is attached incorrectly (not to the place
speciedintheplacementhead/nozzledata),itmaycause
undesirable interference.
•
Do not put any foreign object in the nozzle stocker section.
Otherwise, the machine will break down.
NOTICE
Do not bring any magnetized object such as a
magnet close to the vacuum nozzles.
Otherwise, an error may occur during component picks
and placement.
1OM-1603
3-25
2. Pattern Program Change : Chap.3
•
Procedure of Vacuum Nozzles Replacement
Procedure

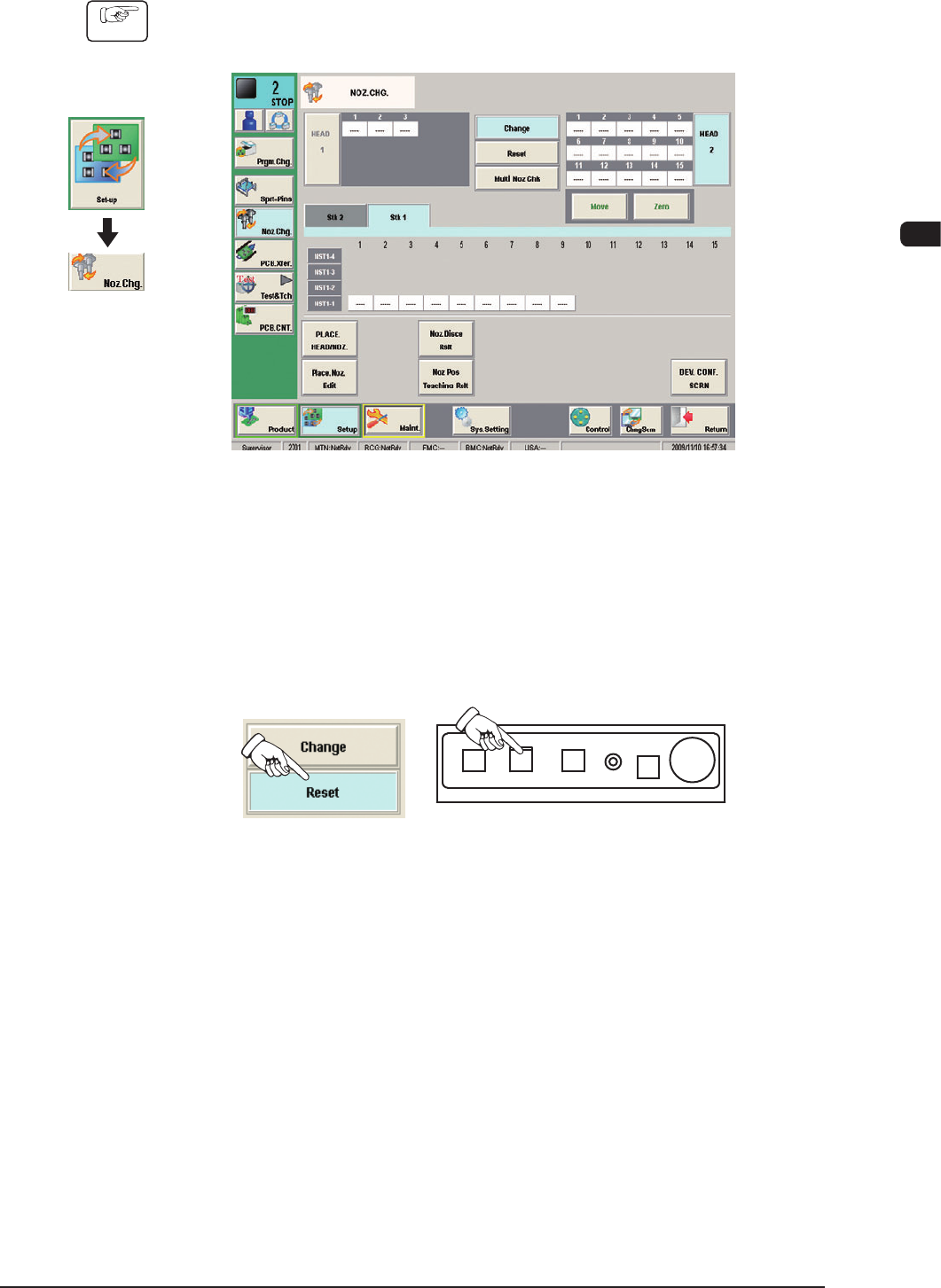

(1) Press the [Noz Chg] button in the submenu on the [Setup] window.
(The "NOZ CHG." window will be opened).
F1C16
(2) Press the [Reset] button.
(3) Press the [MOVE] button and then, within 10 seconds, press the [START]
button on the operation panel.
(The vacuum nozzle on the placement head will be housed in the nozzle
stocker).
F1C17
Graphic
Development
1012-005
1OM-1603
3-26
2. Pattern Program Change : Chap.3

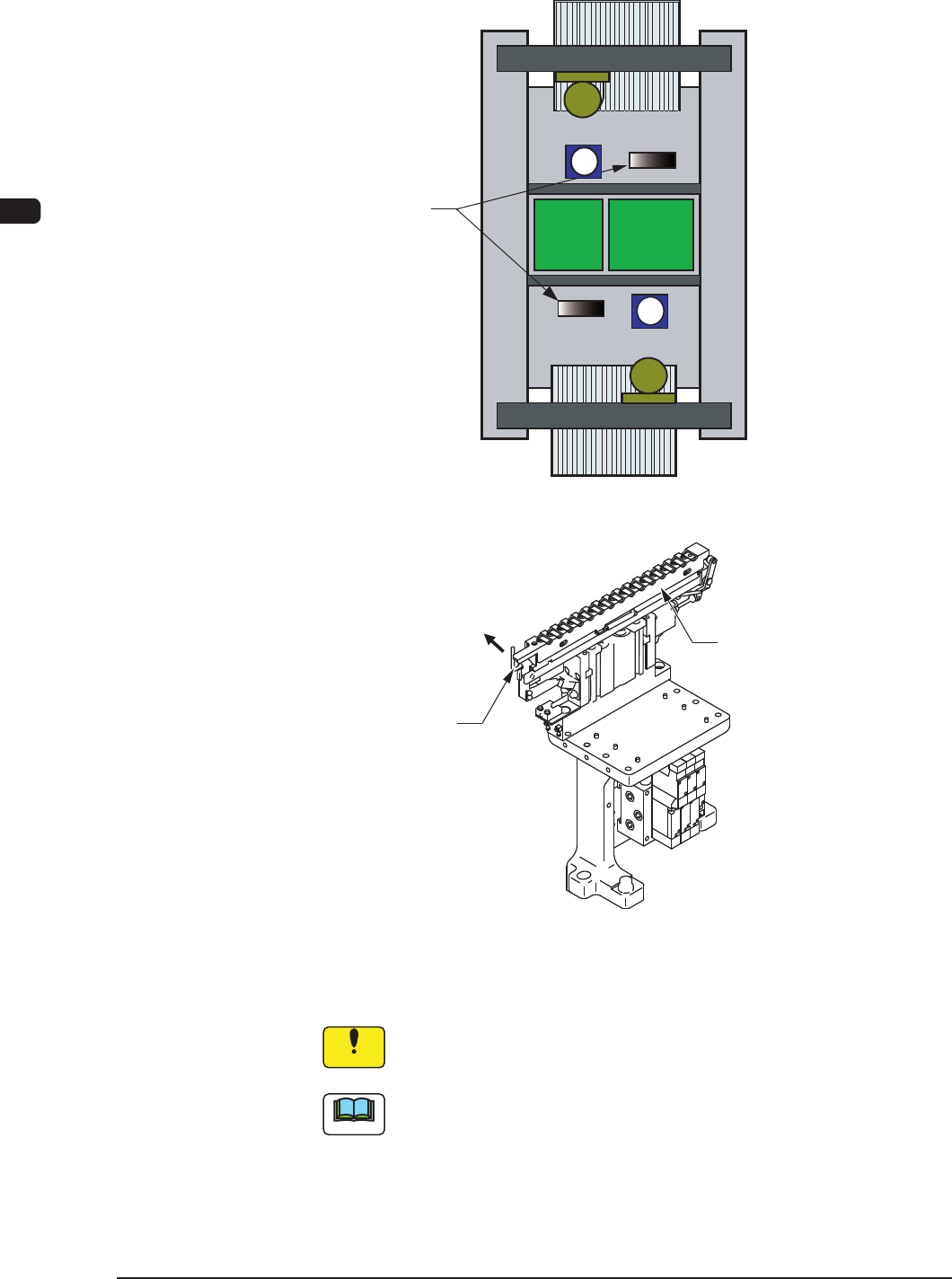

(4) While holding the nozzle stocker by hand, push down the lever of the nozzle
stocker section and detach the nozzle stocker from the nozzle stocker section.
Nozzle
Stocker Section
F1C18
Nozzle Stocker
Lever
Push down the lever
F1C18-1
(5) Slide the nozzle stocker shutter and detach all vacuum nozzles.
Notice
Whenever the vacuum nozzles are stored in or picked up from the
nozzle stocker, slide the nozzle stocker shutter.
Note
It is advisable that the vacuum nozzles required after a program change
operation be prepared beforehand in the nozzle stocker change unit
(accessory part) because the time for vacuum nozzle change operation can
be shortened.
