1OM-1603 3-31 2. Pattern Program Change : Chap.3 2.4 ConrmationofPlacement 2.4.1 Setting of Operation Mode Before starting the automatic operation, press the [Operation] button on the submenu bar. The "OPERATION…

1OM-1603

3-30

2. Pattern Program Change : Chap.3

2.3.6 ConrmationofComponentPickupPosition

In normal cases, it is not necessary to check the pickup position because slightly

shifted position is automatically adjusted.

However, when a component that requires to be positioned precisely cannot be

picked up correctly for the rst time, a teaching operation must be performed on

the feeder Pickup Position.

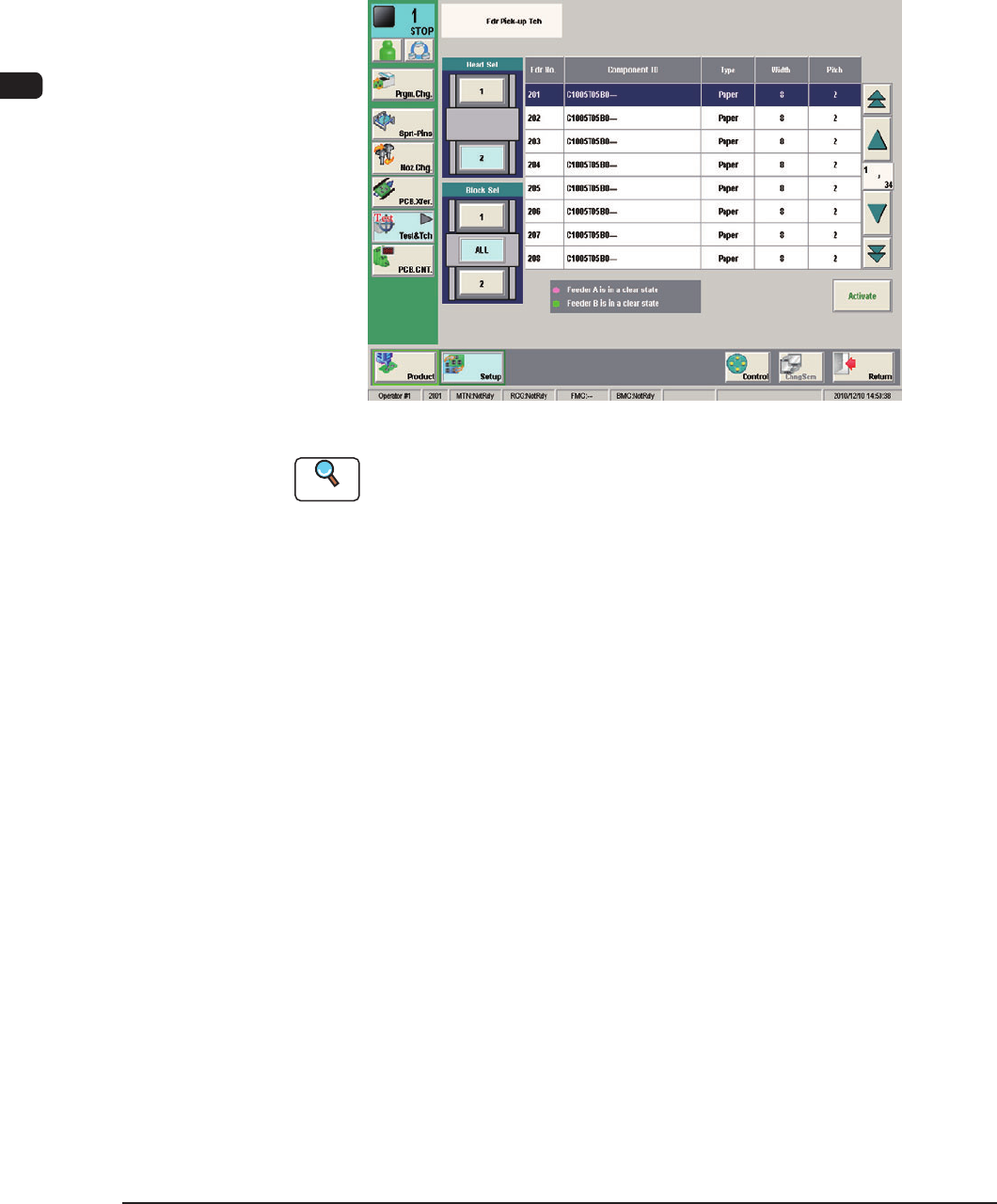

F1C19-1

Reference

Refer to "7.5 "PU Pos Ofst Tch" Window" in Chapter 6, Volume 2 for the details.

1012-004

1OM-1603

3-31

2. Pattern Program Change : Chap.3

2.4 ConrmationofPlacement

2.4.1 Setting of Operation Mode

Before starting the automatic operation, press the [Operation] button on the

submenu bar. The "OPERATION" window appears. Conrm and specify the

following items related to the operation mode for the production model.

ConrmationandSettingofOperationMode

When the [Opr.Mode] tab is pressed in the "OPERATION" window, the "Opr.

Mode" window appears.

"Opr. Mode" Window (First Page) F1C20

Every time the [Page] button is pressed, the next page in the "Opr.Mode" is

displayed.

"Opr. Mode" Window (Second Page) F1C21

1012-005

1OM-1603

3-32

2. Pattern Program Change : Chap.3

F1C22

Using each icon, the check and setting of the corresponding function are

performed.

Reference

Refer to "4.2 Operation Mode" in "Chapter 1 (Volume 2)" for details.

1007-004
