1. Specications
1.1 SpecicationsofSIGMA-G5ChipMounter
Item Description
1. Model Name SIGMA-G5
2. Scope
This machine uses the double-sided operation system on the front and rear of
the machine and single PCB transfer method is used.
High-Speed Head Multi-Functional Head 3. Throughput
65,000 CPH / module
Note : The PCB transition time under
optimum conditions is
excluded.
Components : 14,500 CPH / 2 heads
Note : The PCB transition time under
optimum conditions is
excluded.
High-Speed Head Multi-Functional Head 4. Placement
Accuracy
0603 / 0402 : 40μm (3 σ) IC : 30μm (3 σ)
5. PCB
Transition Time
Approx. 2 seconds (PCB Length : 260 mm or less)
(Under Optimum Conditions)
6. PCB Flow
Direction and
Transfer Reference
PCB Flow Direction : From Left to Right/From Right to Left
(Selected when shipped from the factory)
Transfer Reference
: Rear Left/Rear Right/Front Left/Front Right
(Selected when shipped from the factory)
T1E1-1
1OM-1603
4-2
1.Specications:Chap.4
1007-004
Item
Description
7. Applicable PCB Size : 50 × 50 to 610 × 460 mm
(Four Corners : R1 to R1.5 mm)
Thickness : 0.3 to 5.0 mm
Warpage : The following two requirements should be met.
• 0.2 mm or less per 50 mm (unit length)
Example: The warpage must be 0.8 mm or less when the PCB
size is 200 mm.
• Max. 1.0 mm
Example: The warpage must be 1.0 mm or less when the PCB
size exceeds 250 mm.

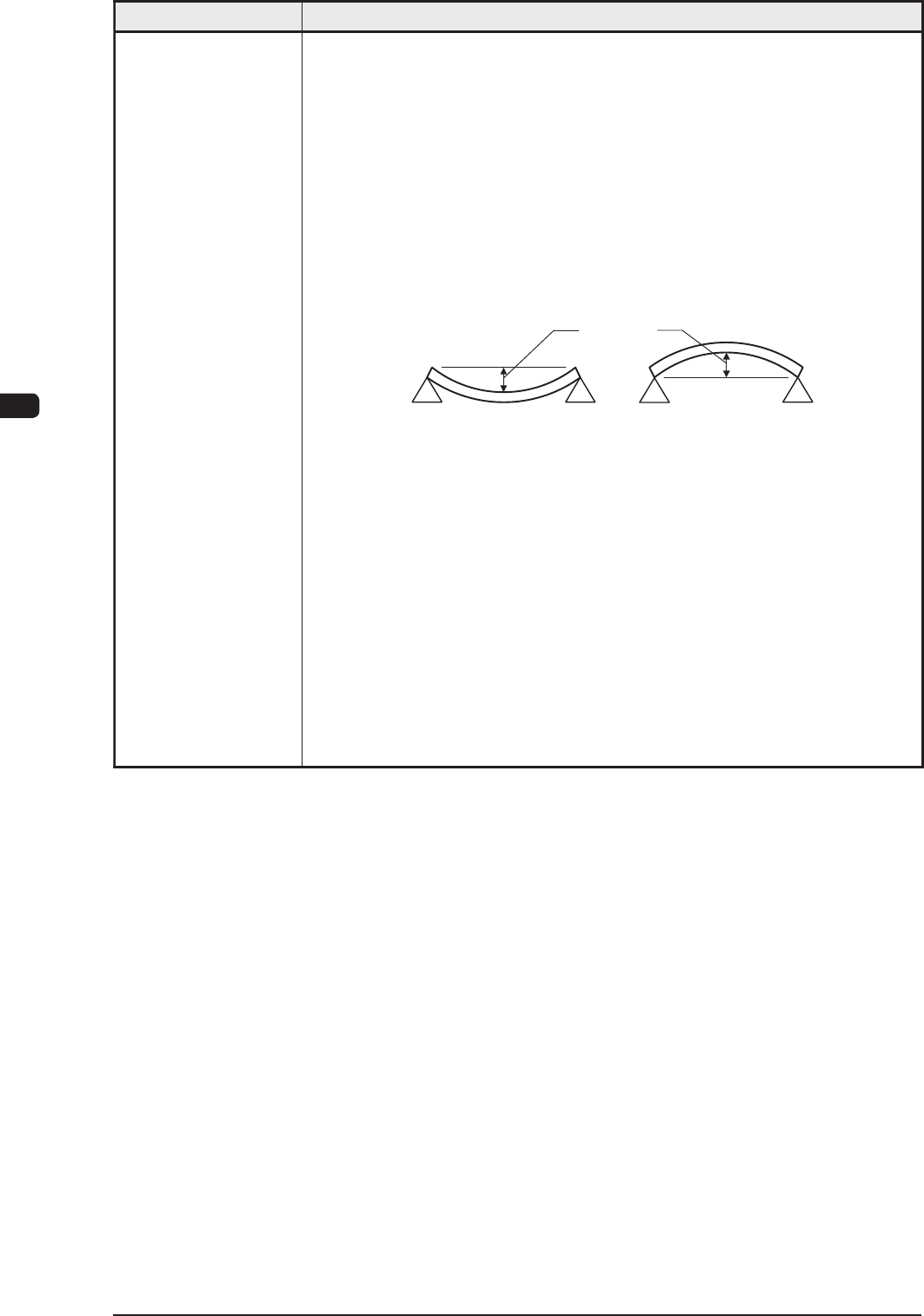

Warpage
F1E2
Mass : Max. 2.5 kg (completed PCB)
However, for the size X of 260 mm or less, the max. mass is 1.5
kg (for a completed PCB)
Material : Glass Epoxy
Ceramic (Option)
Notes : (a) Consult our marketing department or sales agency for Glass
Epoxy with light color.
(b) Depending on the PCB material, shape, warpage, mass or surface
condition (gloss), etc., it should be tested whether or not the PCB
can be transferred, or the components can be placed normally, to
confirm.
T1E1-2
1OM-1603
4-3
1.Specications:Chap.4
1007-004
Item Description
8. Limitation of
Cutout and Hole
on PCB
F1E3

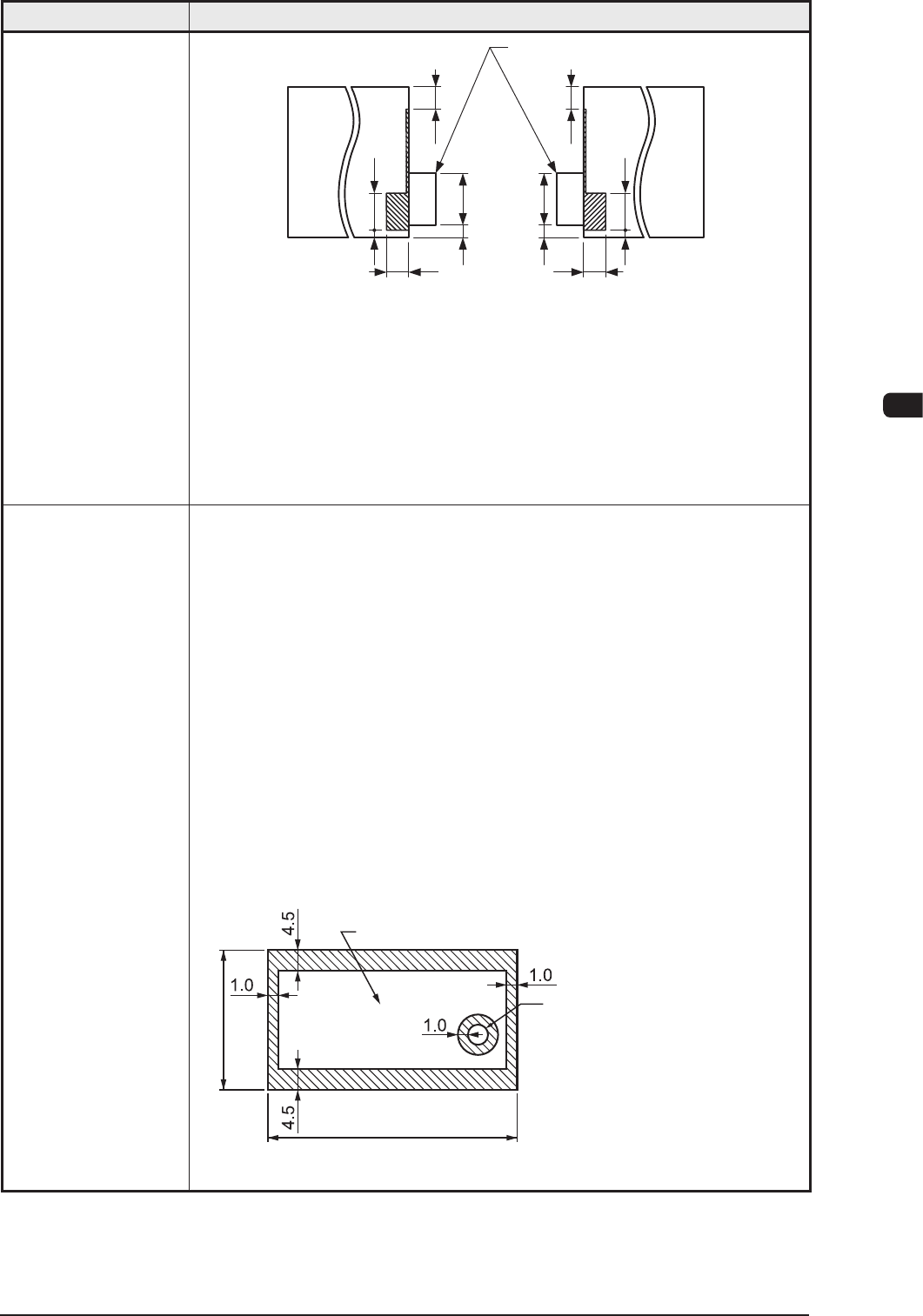

Note : The shadowed areas show the areas where a cutout should not exist.
When a cutout or a hole exists in the shadowed area, perform a PCB
positioning test and confirm that the PCB can be positioned normally.
9. Correction Method
for PCB Location
PEC Recognition
• By recognizing the fiducial marks using the PEC camera, positional
deviation covering the whole area of PCB and expansion of the printed
patterns on PCB can be corrected.
• To correct the positional deviation covering the whole area of PCB,
fiducial marks must be put on two or three places of PCB (Zones 1
through 5). Two fiducial marks are required for each unit PCB of a
multi-unit PCB.
• To correct the positional deviation of component placement points, put
one to two fiducial marks on the PCB. In this case, it is recommended
that two fiducial marks be located symmetrically such that the center of
gravity (the center of the fiducial marks) becomes the center of the
component placement point.
Unit : mm
F1E4
Unit : mm
(Front Side of Machine)
Range where a fiducial mark can be put
Hole, etc.
50.0 to 610.0
50.0 to 460.0
30.5
15
9
255
PCB Flow Direction
from Right to Left
15
30.5
9
255
15
15
PCB Positioning Stopper
PCB Flow Direction
from Left to Right
