1OM-1603
4-22

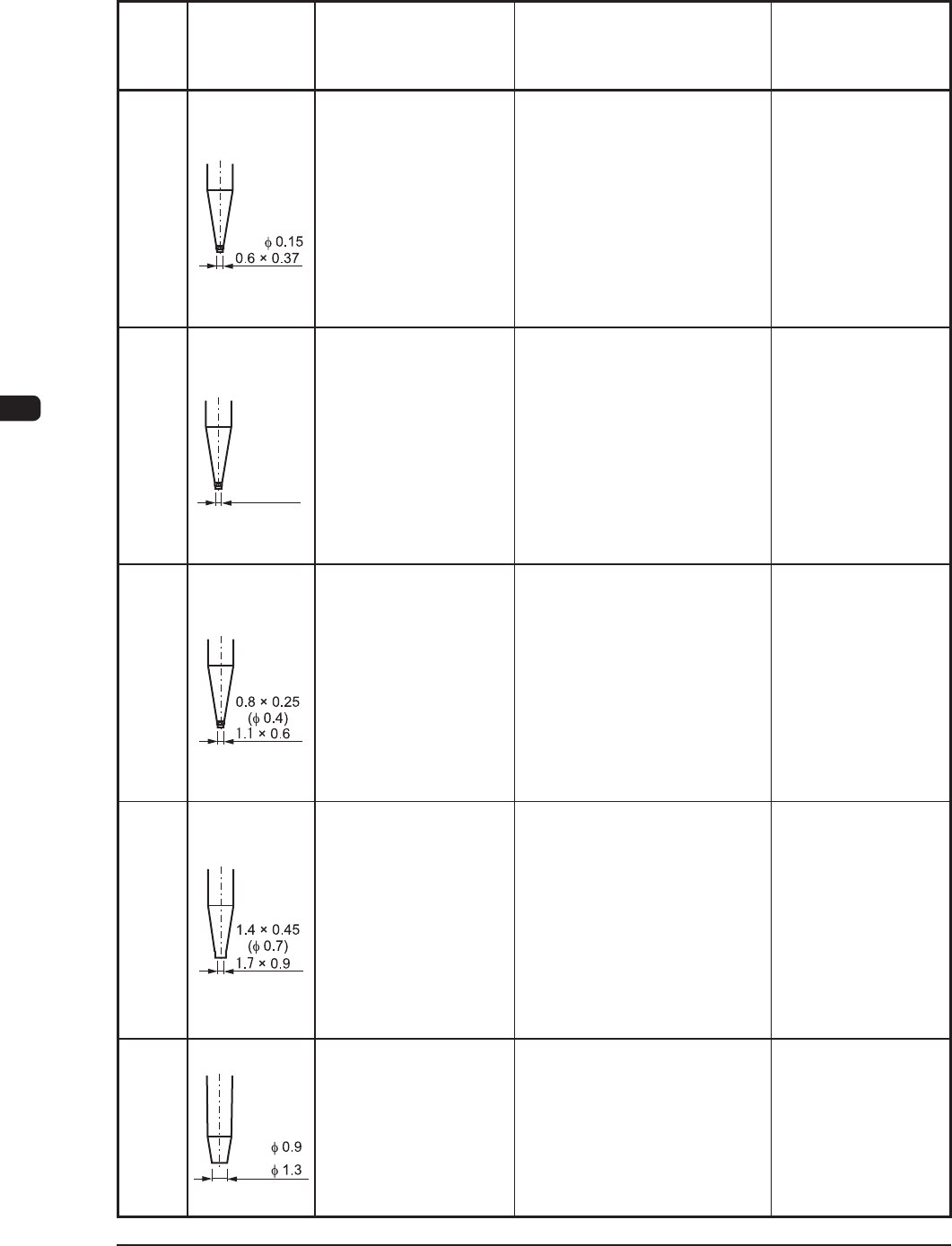

5. List of Vacuum Nozzle Types : Chap.4
5. List of Vacuum Nozzle Types
The machine is equipped with nozzles designated in the delivery specications at
shipment.
Nozzle
Type
NO.
Shape
Note (a)
Component Size
(mm)
Note (b)
Applicable Components
for Reference
Remarks
Part No.
Part Name
HG22C
Stroke
I.D.
1.5
0.4 × 0.2
Thickness
0.2 to 0.3
0402-Type Resistors and
Capacitors
•
Nozzle for
Front Lighting
Recognition
•
Soft Mounting
Nozzle
HG22C---
NOZZLE_HG22C
HG32C
I.D.
0.4 × 0.2
0.7 × 0.4
Stroke
1.6
0.6 × 0.3
Thickness
0.2 to 0.3
0603-Type Resistors and
Capacitors
•
Nozzle for
Front Lighting
Recognition
•
Soft Mounting
Nozzle
HG32C---
NOZZLE_HG32C
HG52C
Stroke
I.D.
1.5
1.0 × 0.5 to
1.6 × 0.8
Thickness
0.2 to 0.3
1005-Type Resistors and
Capacitors
•
Nozzle for
Front Lighting
Recognition
•
Soft Mounting
Nozzle
HG52C---
NOZZLE_HG52C
HG82C
I.D.
1.6 × 0.8 to
2.0 × 1.25
Thickness
0.45 to 0.8
1608-Type Resistors and
Capacitors
•
Nozzle for
Front Lighting
Recognition
•
Soft Mounting
Nozzle
HG82C---
NOZZLE_HG82C
HV13C
I.D.
O.D.
2.0 × 1.25 to
3.2 × 2.5
Thickness
0.45 to 1.25
2012-Type Resistors,
Capacitors and
Super Mini-Transistors
•
Nozzle for
Front Lighting
Recognition
HV13C---
NOZZLE_HV13C
T1E5-1
1012-004
( )
1OM-1603
4-23
5. List of Vacuum Nozzle Types : Chap.4
Nozzle
Type
NO.
Shape
Note (a)
Component Size
(mm)
Note (b)
Applicable Components
for Reference
Remarks
Part No.
Part Name
HA14C
O.D.
I.D.
2.5 × 1.6 to 4.0 × 3.0
Thickness
0.45 to 2.5
3216- and 3225-Type
Capacitors and Resistors,
Tantalum Capacitor A,
Mini-Mold Transistors
•
Nozzle for
Front Lighting
Recognition
HA14C---
NOZZLE_HA14C
HA15C
I.D.
O.D.
4.5 × 2.5 to 8.0 × 8.0
Thickness
1.0 to 6.5
4532-Type or Larger
Capacitors and Resistors,
Tantalum Capacitor B,
C, and D Aluminum
Electrolytic Capacitors,
SOP 6 to 10 pins
•
Nozzle for
Front Lighting
Recognition
HA15C---
NOZZLE_HA15C
HA19C
I.D.
O.D.
8.0 × 8.0 to
19.8 × 19.8
Thickness
1.0 to 5.0
SOP
QFP
PLCC
•
Nozzle for
Front Lighting
Recognition
HA19C---
NOZZLE_HA19C
HV82C
I.D.
1.6 × 0.8 to
2.0 × 1.25
Thickness
0.45 to 0.8
1608-Type Resistors and
Capacitors
•
Nozzle for
Front Lighting
Recognition
HV82C---
NOZZLE_HV82C
HB03C
I.D.
O.D.
2 ×
f
1.0 to
3.5 ×
f
1.5
Cylindrical Resistors and
Diodes
2.0 ×
f
1.0
2.0 ×
f
1.25
3.5 ×
f
1.4
•
Nozzle for
Front Lighting
Recognition
•
V-Grooved
HB03C---
NOZZLE_HB03C
HB04C
O.D.
I.D.
3.5 ×
f
1.2 to
6.0 ×
f
2.8
Cylindrical Resistors and
Diodes
3.5 ×
f
1.4
5.9 ×
f
2.2
•
Nozzle for
Front Lighting
Recognition
•
V-Grooved
HB04C---
NOZZLE_HB04C
T1E5-2
1012-004
( )
1OM-1603
4-24
5. List of Vacuum Nozzle Types : Chap.4
Nozzle
Type
NO.
Shape
Note (a)
Component Size
(mm)
Note (b)
Applicable Components
for Reference
Remarks
Part No.
Part Name
PA05C
I.D.
O.D.
3.0 × 3.6 to
8.0 × 8.0
Thickness
1.0 to 3.5
Semi-Fixed Variable
Resistors
•
Nozzle for
Front Lighting
Recognition
PA05C---
NOZZLE_PA05C
PA07C
I.D. 1.0
O.D.
3.0
3.0 × 3.0 High-Frequency
Coaxial Connector
•
Nozzle for
Front Lighting
Recognition
PA07C---
NOZZLE_PA07C
PA15C
I.D. 3.5
O.D.
5.0
8.0 × 8.0 IC
QFP
BGA
•
Nozzle for
Front Lighting
Recognition
PA15C---
NOZZLE_PA15C
PA30C
3.0 × 3.0
I.D.
2.7
2.8 × 2.8
Thickness
1.9
LED
•
Nozzle for
Front Lighting
Recognition
PA30C---
NOZZLE_PA30C
PA31C
2.8 × 2.8
I.D. φ 2.6
3.2 × 2.8
Thickness
1.9
LED
•
Nozzle for
Front Lighting
Recognition
PA31C---
NOZZLE_PA31C
PA34C
2.8 × 2.8
I.D. φ 2.6
5.6 × 3.0
Thickness
1.0
LED
•
Nozzle for
Front Lighting
Recognition
PA34C---
NOZZLE_PA34C
T1E5-3
1012-004
