Chapter 1
About the Machine
This chapter describes the structure, movement, and functions of the
machine.
1. What is the modular mounter?
2. Name and Function of Each Section
3. Mechanism for Surface Mounting
4. Surface Mounting Mechanism
5. Various Functions
1OM-1603
0908-002 1-B
1OM-1603
1-1
1. What is the modular mounter? : Chap.1
1003-003
1. What is the modular mounter?
This machine is provided with a batch recognition system by which various
kinds of electronic components (simply called "Components" hereinafter) can be
recognized in batch (non-stop y batch recognition) and realizes highly accurate
component placement on the PCBs at high speed. The machine is also equipped
with two beams, two heads, and two component recognition cameras, making
it possible to handle many different kinds of components in small lots or few
different kinds of component in large lots for diversied scales of production.
This machine introduces our latest technologies such as direct drive heads, X/
Y-axis linear motor driving, etc., (the performance proven by our direct drive
turret mounters) that have been used in the past actual production and is provided
with various functions for reduction of OOS (out of service) time. That is the
reason why this mounter is called "Modular Mounter with High Total Productivity
for Next Generation".

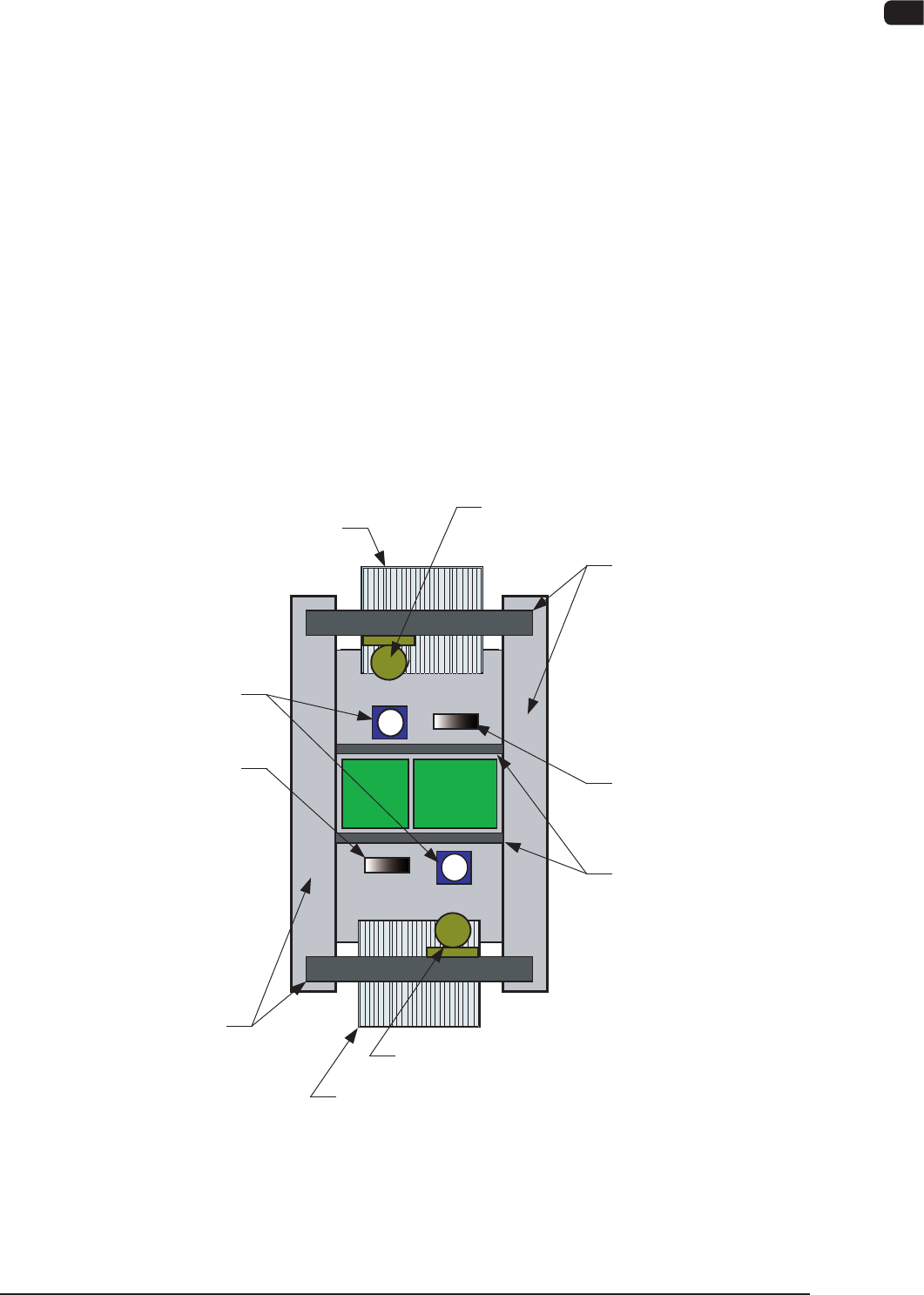

1.1 Location of Each Unit
Cart Installation Section
Cart Installation Section
XY Beam Section
Nozzle Stocker Section
Component Recognition Unit
Nozzle Stocker Section
PCB Transfer Section
Placement Head Section,
PEC Recognition Section
Placement Head Section,
PEC Recognition Section
XY Beam Section
