2. Name and Function of Each Section
2.1 Appearance of Machine
Note
The gures in brackets show the reference item No.

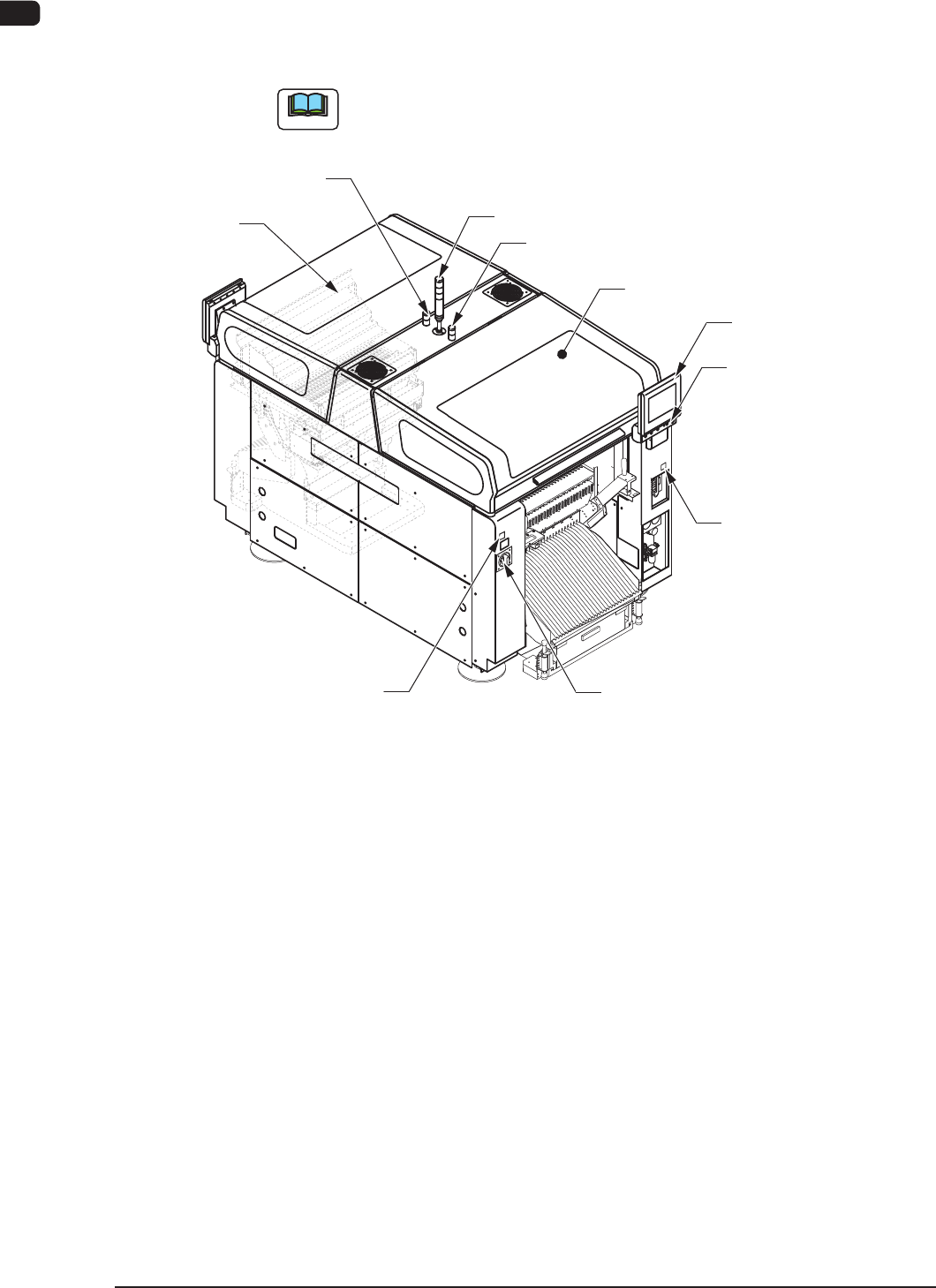

Light Tower (2.3.2)
Front Operation Panel
(2.3.4)
[EMERGENCY STOP]
Switch (2.2.1)
Auxiliary Lamp
Transparent Cover
(2.2.3)
Cover Lock Switch
([Cover READY] Button)
Power Breaker
(2.3.1)
Auxiliary Lamp
(2.3.3)
Front Side of Machine
Transparent
Cover (2.2.3)
(2.2.2.2)
Feeder Ready Switch
([F2 READY] Button)
(2.2.2.1)
F1A2
1OM-1603
1-5
2. Name and Function of Each Section : Chap.1
1108-006
Note
The gures in brackets show the reference item No.
Light Tower (2.3.2)
Rear Operation Panel
(2.3.4)
[EMERGENCY STOP]
Switch (2.2.1)
Auxiliary Lamp
Transparent Cover
(2.2.3)
Cover Lock Switch
([Cover READY] Button)
(2.2.2.2)
Auxiliary Lamp
(2.3.3)
Transparent
Cover (2.2.3)
Rear Side of Machine
Feeder Ready Switch
([F1 READY] Button)
(2.2.2.1)
F1A3
1OM-1603
1-6
2. Name and Function of Each Section : Chap.1
1012-004
2.2 Mechanism for User Protection
2.2.1 [EMERGENCY STOP] Switches
The [EMERGENCY STOP] switches can be used to stop the machine in an
emergency.
When one of the [EMERGENCY STOP] switches is pressed, the machine stops
immediately and the [POWER ON] button on the operation panel turns red.
[EMERGENCY STOP] Switches
Front Side of Machine Rear Side of Machine
F1A4
•
Locking the [EMERGENCY STOP] Switch
When one of the [EMERGENCY STOP] switches is pressed, the machine stops
and the switch is locked.
•
Unlocking the [EMERGENCY STOP] Switch
When one of the [EMERGENCY STOP] switch is pressed (locked), check and
remove the cause of the emergency stop. After that, recheck each section and
turn the switch clockwise to unlock.
Notice
The [EMERGENCY STOP] switches are used to intercept the controlled
power supply in an emergency.
Note
This machine is not provided with any emergency stop off function that can be
used to intercept the power supply to all loads in an emergency.
When "Emergency Switch Off" is required, it must be prepared outside the
machine on the customer side.
