Fing er Con ve yor = (M) Rol ler Co nve yor = (R) Pin Cha in Con vey or = (K) 5 Sele cti ve So ldering Noz z les Nozzle height w ith variable Z -Ax is Nozzle height with variab le Z -A xis ECOSEL EC T 1 ≤ 90 m m (M) ≤ 57…
Unless specified otherwise in the product description, order numbers
refer to a packing unit (pu) of 1 piece.
Unless specified otherwise in the product description, order numbers
refer to a packing unit (pu) of 1 piece.
32 32
Nozzle Overview matrix
H = Nozzle height
Please note: at a nozzle height higher than 47 mm a consultation with Ersa is recommended
Nozzle overview for solderpot B22
H=47 H=52 H=57 H=62 H=65 H=75 H=80 H=85 H=90
possible z-drive (mm) possible z-drive (mm) possible z-drive (mm) possible z-drive (mm) possible z-drive (mm) possible z-drive (mm) possible z-drive (mm) possible z-drive (mm) possible z-drive (mm)
Frame
SMARTFLOW
60 55 50 45 42 32
ECOSELECT 1
60 55 50 45 42 32 27 22 17
ECOSELECT 1 Z variable
30 25 20
Roller conveyor
ECOCELL
60 55 50 45 42 32 27 22
ECOCELL Z variabel
30 25 20
VERSAFLOW 3
60 55 50 45 42 32 27 22
VERSAFLOW 3 Z variable
30 25 20
ECOSELECT 4
60 55 50 45 42 32 27 22
VERSAFLOW 4
60 55 50 45 42 32 27 22
Chain conveyor
ECOSELECT 2
60 55 50 45 42 32
ECOSELECT 2 Z variable
30 25 20
ECOCELL
60 55 50 45 42 32
ECOCELL Z variable
30 25 20
Suitable gassing cap for the
respective nozzle size:
242715 (D24) 242746 (D34) 252131 (D42) ID / OD
H=47 H=52 H=57 H=62 H=65 H=75 H=80 H=85 H=90
2,0/4,5 213510 248354 250821
2,4/5,0 296767 300041
2,7/5,5 296788
3,5/5,6 229921
3,0/6,0 114609 289012 130964 199983 216347 278549 278550
3,5/7,0 256501 213419 229923
4,0/8,0 114611 300889 189478 199985 135253 206293 251318 316185 197665
5,0/9,0 152894
6,0/10,0 114613 189479 199984 206294 251319 316198 314957
8,0/12,0 118615 203778 197404 235693 211314 314953
10,0/14,0
119274
257563
320491 251316 211315
12,0/16,0 208094
14,0/18,0 190959
16,0/20,0
245562
263686
18,0/20,0 134354
18,0/22,0 255046
21,0/25,0
260489
263020
23,0/25,0 239623
25,0/29,0
245561
263514
28,0/32,0 248298
31,0/35,0
255975
263689
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
5
Selective Soldering Nozzles
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 57 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 57 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 57 mm (R)
ECOSELECT 4
≤ 85 mm (R) ≤ 85 mm (R)
VERSAFLOW 4
≤ 85 mm (R) ≤ 85 mm (R)
ECOCELL
≤ 85 mm (R, K) ≤ 57 mm (R, K)
Unless specified otherwise in the product description, order numbers
refer to a packing unit (pu) of 1 piece.
44
Content valid from 08/2019

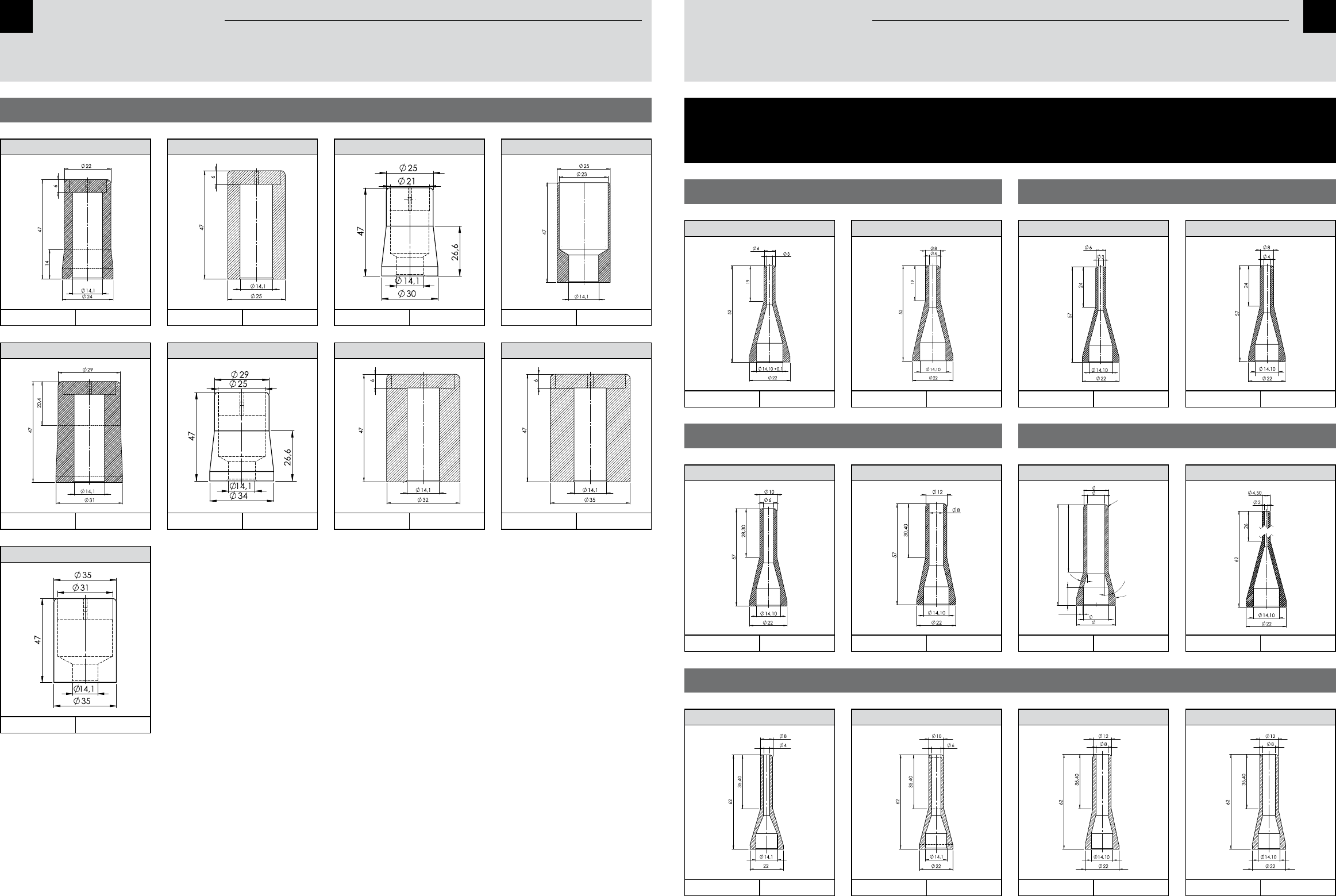

Height 47 mm, B22
S NOZZLE 2,0/4,5; H=47; B22
213510 1 Pcs.
S NOZZLE 3,0/6,0; H=47; B22
114609 1 Pcs.
S NOZZLE 3,5/7,0; H=47; B22
256501 1 Pcs.
S NOZZLE 4,0/8,0; H=47; B22
114611 1 Pcs.
S NOZZLE 2,4/5,0; H=47; B22
14,10
22
2,40
5
14
47
296767 1 Pcs.
S NOZZLE 2,7/5,5; H=47; B22
296788 1 Pcs.
S NOZZLE 5,0/9,0; H=47; B22
152894 1 Pcs.
S NOZZLE 6,0/10,0; H=47; B22
114613 1 Pcs.
S NOZZLE 8,0/12,0; H=47; B22
118615 1 Pcs.
S NOZZLE 10,0/14,0; H=47; B22
119274 1 Pcs.
S NOZZLE 10,0/14,0; H=47; B22; Cross
257563 1 Pcs.
S NOZZLE 12,0/16,0; H=47; B22
208094 1 Pcs.
S NOZZLE 14,0/18,0; H=47; B22
190959 1 Pcs.
S NOZZLE 16,0/20,0; H=47; B22; Cross
245562 1 Pcs.
S NOZZLE 16,0/20,0; H=47; B22; Cross
263686 1 Pcs.
S NOZZLE 18,0/20,0; H=47; B22
134354 1 Pcs.
Nozzle overview matrix ............................................................................................................... 2, 3
Selective Soldering Nozzles ..................................................................................................... 5–11
Height 47 mm, B22 .................................................................................................................................................................................................. 5, 6
Height 57 mm, B22 ....................................................................................................................................................................................................... 7
Height 62 mm, B22 ....................................................................................................................................................................................................... 7
Height 65 mm, B22 .......................................................................................................................................................................................................8
Height 75 mm, B22 ....................................................................................................................................................................................................... 8
Height 80 mm, B22 .................................................................................................................................................................................................. 8, 9
Height 85 mm, B22 .......................................................................................................................................................................................................9
Height 90 mm, B22 .......................................................................................................................................................................................................9
Height 47 mm, B36 ......................................................................................................................................................................................................10
Height 56 mm, B36 ...................................................................................................................................................................................................... 10
Height 58 mm, B36 ...................................................................................................................................................................................................... 10
Height 75 mm, B36 ......................................................................................................................................................................................................10
Height 85 mm, B36 ...................................................................................................................................................................................................... 11
Height 90 mm, B36 ...................................................................................................................................................................................................... 11
Lubricants & Cleaning Products ..................................................................................................12
Flux ....................................................................................................................................................13
Solderbath Maintenance ........................................................................................................ 14, 15
Solderbath Maintenance General ............................................................................................................................................................................14
Solderbath Maintenance Wave ...........................................................................................................................................................................14, 15
Solderbath Maintenance Selective .......................................................................................................................................................................... 15
Fluxer Accessories .................................................................................................................. 16–18
PTP Messboards ..............................................................................................................................18
Solder Frames ........................................................................................................................... 19, 20
250 mm working width ...............................................................................................................................................................................................19
330 mm working width ................................................................................................................................................................................................19
400 mm working width ................................................................................................................................................................................................19
500 mm working width ................................................................................................................................................................................................19
Spare Parts 250 mm working width .........................................................................................................................................................................19
Spare Parts 330 mm - 500 mm working width ..................................................................................................................................................... 20
Selective machines ..................................................................................................................................................................................................... 20
Stencil printers ........................................................................................................................ 20, 21
Auxiliaries and Supplies .......................................................................................................... 21, 22
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
7
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 57 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 57 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 57 mm (R)
ECOSELECT 4
≤ 85 mm (R) ≤ 85 mm (R)
VERSAFLOW 4
≤ 85 mm (R) ≤ 85 mm (R)
ECOCELL
≤ 85 mm (R, K) ≤ 57 mm (R, K)
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
6
Selective Soldering Nozzles Selective Soldering Nozzles
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 57 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 57 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 57 mm (R)
ECOSELECT 4
≤ 85 mm (R) ≤ 85 mm (R)
VERSAFLOW 4
≤ 85 mm (R) ≤ 85 mm (R)
ECOCELL
≤ 85 mm (R, K) ≤ 57 mm (R, K)
Height 57 mm, B22
Height 57 mm, B22
S NOZZLE 3,0/6,0; H=57; B22
130964 1 Pcs.
S NOZZLE 4,0/8,0; H=57; B22
189478 1 Pcs.
S NOZZLE 6,0/10,0; H=57; B22
189479 1 Pcs.
S NOZZLE 8,0/12,0; H=57; B22
203779 1 Pcs.
Height 62 mm, B22
Height 62 mm, B22
S NOZZLE 2,0/4,5; H=62; B22
320491 1 Pcs.
S NOZZLE 3,0/6,0; H=62; B22
248354 1 Pcs.
S NOZZLE 4,0/8,0; H=62; B22
199985 1 Pcs.
S NOZZLE 6,0/10,0; H=62; B22
199985 1 Pcs.
S NOZZLE 8,0/12,0; H=62; B22
199984 1 Pcs.
S NOZZLE 25,0/29,0; H=47; B22; Cross
245561 1 Pcs.
Height 47 mm, B22
Height 52 mm, B22
S NOZZLE 25,0/29,0; H=47; B22; Cross
263514 1 Pcs.
S NOZZLE 28,0/32,0; H=47; B22; Cross
248298 1 Pcs.
S NOZZLE 31,0/35,0; H=47; B22; Cross
255975 1 Pcs.
S NOZZLE 31,0/35,0; H=47; B22; Cross
263689 1 Pcs.
S NOZZLE 21,0/25,0; H=47; B22; Cross
263020 1 Pcs.
S NOZZLE 3,0/6,0; H=52; B22
289012 1 Pcs.
S NOZZLE 23,0/25,0; H=47; B22
239623 1 Pcs.
S NOZZLE 4,0/8,0; H=52; B22
300889 1 Pcs.
S NOZZLE 18,0/22,0; H=47; B22; Cross
255046 1 Pcs.
S NOZZLE 21,0/25,0; H=47; B22
260489 1 Pcs.
Please note:
at a nozzle height higher than 47 mm a consultation with Ersa is recommended
S NOZZLE 8,0/12,0; H=62; B22
197404 1 St.
-0.1
22
14,10
10
14
57
15°
15°
10,2
0,5x45°
38
R2
R1
A= 5055,37 mm²
Rz 6,3
F
Zch-Nr.:
Diese Unterlage ist unser Eigentum. Jede Ver-
vielfältigung, Verwertung oder Mitteilung an dritte
Personen ist strafbar, verpflichtet zu Schaden-
ersatz und wird gerichtlich verfolgt. Alle Rechte
für den Fall einer Patenterteilung oder GM-
Eintragung behalten wir uns vor. Diese Unterlage
ist auf Verlangen jederzeit zurückzugeben.
EM1500-185-ROH
kurtz ersa
1
von
Ersatz für:
Gewicht: 44.50 g
SAP-Nr.:
Werkstoff: S235 EN10025
1
A4
Blatt
Name
Datum
Maßstab: 2:1
Bearb.
Name
Datum
Änderung
Index
S DÜSE 10,0/14,0; H=57; B22 ROH
02.12.2016
kre
letzte Speicherung: 02.12.2016
000000000000320492
S nozzle 10,0/14,0; h=57; w22 raw
ERSA GmbH, D-97877 Wertheim
