Fing er Con ve yor = (M) Rol ler Co nve yor = (R) Pin Cha in Con vey or = (K) 9 Nozzle height w ith variable Z -Ax is Nozzle height with variab le Z -A xis ECOSEL EC T 1 ≤ 90 m m (M) ≤ 57 mm (M) SMART FLO W ≤ 75 mm (M) -…
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
7
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 57 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 57 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 57 mm (R)
ECOSELECT 4
≤ 85 mm (R) ≤ 85 mm (R)
VERSAFLOW 4
≤ 85 mm (R) ≤ 85 mm (R)
ECOCELL
≤ 85 mm (R, K) ≤ 57 mm (R, K)
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
6

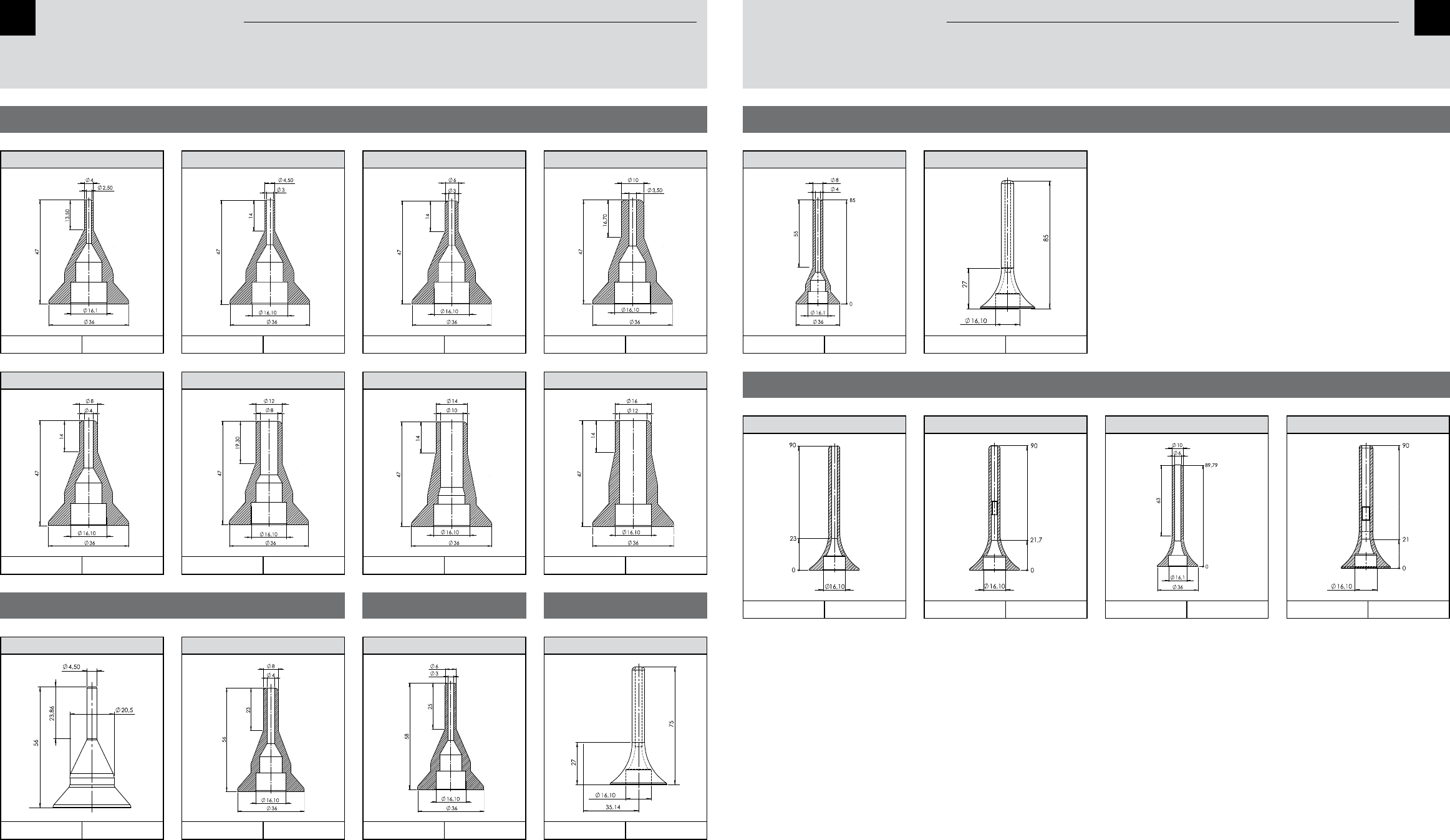

Selective Soldering Nozzles Selective Soldering Nozzles
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 57 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 57 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 57 mm (R)
ECOSELECT 4
≤ 85 mm (R) ≤ 85 mm (R)
VERSAFLOW 4
≤ 85 mm (R) ≤ 85 mm (R)
ECOCELL
≤ 85 mm (R, K) ≤ 57 mm (R, K)
Height 57 mm, B22
Height 57 mm, B22
S NOZZLE 3,0/6,0; H=57; B22
130964 1 Pcs.
S NOZZLE 4,0/8,0; H=57; B22
189478 1 Pcs.
S NOZZLE 6,0/10,0; H=57; B22
189479 1 Pcs.
S NOZZLE 8,0/12,0; H=57; B22
203779 1 Pcs.
Height 62 mm, B22
Height 62 mm, B22
S NOZZLE 2,0/4,5; H=62; B22
320491 1 Pcs.
S NOZZLE 3,0/6,0; H=62; B22
248354 1 Pcs.
S NOZZLE 4,0/8,0; H=62; B22
199985 1 Pcs.
S NOZZLE 6,0/10,0; H=62; B22
199985 1 Pcs.
S NOZZLE 8,0/12,0; H=62; B22
199984 1 Pcs.
S NOZZLE 25,0/29,0; H=47; B22; Cross
245561 1 Pcs.
Height 47 mm, B22
Height 52 mm, B22
S NOZZLE 25,0/29,0; H=47; B22; Cross
263514 1 Pcs.
S NOZZLE 28,0/32,0; H=47; B22; Cross
248298 1 Pcs.
S NOZZLE 31,0/35,0; H=47; B22; Cross
255975 1 Pcs.
S NOZZLE 31,0/35,0; H=47; B22; Cross
263689 1 Pcs.
S NOZZLE 21,0/25,0; H=47; B22; Cross
263020 1 Pcs.
S NOZZLE 3,0/6,0; H=52; B22
289012 1 Pcs.
S NOZZLE 23,0/25,0; H=47; B22
239623 1 Pcs.
S NOZZLE 4,0/8,0; H=52; B22
300889 1 Pcs.
S NOZZLE 18,0/22,0; H=47; B22; Cross
255046 1 Pcs.
S NOZZLE 21,0/25,0; H=47; B22
260489 1 Pcs.
Please note:
at a nozzle height higher than 47 mm a consultation with Ersa is recommended
S NOZZLE 8,0/12,0; H=62; B22
197404 1 St.
-0.1
22
14,10
10
14
57
15°
15°
10,2
0,5x45°
38
R2
R1
A= 5055,37 mm²
Rz 6,3
F
Zch-Nr.:
Diese Unterlage ist unser Eigentum. Jede Ver-
vielfältigung, Verwertung oder Mitteilung an dritte
Personen ist strafbar, verpflichtet zu Schaden-
ersatz und wird gerichtlich verfolgt. Alle Rechte
für den Fall einer Patenterteilung oder GM-
Eintragung behalten wir uns vor. Diese Unterlage
ist auf Verlangen jederzeit zurückzugeben.
EM1500-185-ROH
kurtz ersa
1
von
Ersatz für:
Gewicht: 44.50 g
SAP-Nr.:
Werkstoff: S235 EN10025
1
A4
Blatt
Name
Datum
Maßstab: 2:1
Bearb.
Name
Datum
Änderung
Index
S DÜSE 10,0/14,0; H=57; B22 ROH
02.12.2016
kre
letzte Speicherung: 02.12.2016
000000000000320492
S nozzle 10,0/14,0; h=57; w22 raw
ERSA GmbH, D-97877 Wertheim
Ersetzt durch:
This document is our property,every reporduction, utilisation or report to third parties is liable to prosecution, obliges to indemnification and will
be prosecuted. We will reserve all rights in case of issue of a patent or a design patent. On request the document has to be returned any time.
Werkstückkanten /
workpiece edges
ISO 13715
Maße ohne
Toleranzangabe /
dimensions without
tolerance
ISO 2768-mK
Info Index :
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
9
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 57 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 57 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 57 mm (R)
ECOSELECT 4
≤ 85 mm (R) ≤ 85 mm (R)
VERSAFLOW 4
≤ 85 mm (R) ≤ 85 mm (R)
ECOCELL
≤ 85 mm (R, K) ≤ 57 mm (R, K)
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
8
Selective Soldering Nozzles Selective Soldering Nozzles
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 57 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 57 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 57 mm (R)
ECOSELECT 4
≤ 85 mm (R) ≤ 85 mm (R)
VERSAFLOW 4
≤ 85 mm (R) ≤ 85 mm (R)
ECOCELL
≤ 85 mm (R, K) ≤ 57 mm (R, K)
Height 80 mm, B22
S NOZZLE 8,0/12,0; H=80; B22
211314 1 Pcs.
S NOZZLE 10,0/14,0; H=80; B22
211315 1 Pcs.
Height 85 mm, B22
Height 85 mm, B22
Height 90 mm, B22
S NOZZLE 3,0/6,0; H=85; B22
278550 1 Pcs.
S NOZZLE 3,5/5,6; H=85; B22
229921 1 Pcs.
S NOZZLE 3,5/7,0; H=85; B22
229923 1 Pcs.
S NOZZLE 4,0/8,0; H=85; B22
316185 1 Pcs.
S NOZZLE 6,0/10,0; H=90; B22
314957 1 Pcs.
S NOZZLE 6,0/10,0; H=85; B22
316198 1 Pcs.
S NOZZLE 8,0/12,0; H=90; B22
314953 1 Pcs.
S NOZZLE 4,0/8,0; H=90; B22
197665 1 Pcs.
Height 65 mm, B22
S NOZZLE 2,0/4,5; H=65; B22 ,5
250821 1 Pcs.
S NOZZLE 4,0/8,0; H=65; B22
135253 1 Pcs.
Height 75 mm, B22
S NOZZLE 3,0/6,0; H=75; B22
216347 1 Pcs.
S NOZZLE 4,0/8,0; H=75; B22
206293 1 Pcs.
S NOZZLE 2,4/5,0; H=75; B22
300041 1 Pcs.
Height 75 mm, B22
S NOZZLE 6,0/10,0; H=75; B22
206294 1 Pcs.
S NOZZLE 8,0/12,0; H=75; B22
235693 1 Pcs.
Height 80 mm, B22
S NOZZLE 3,0/6,0; H=80; B22
278549 1 Pcs.
S NOZZLE 3,5/7,0; H=80; B22
213419 1 Pcs.
S NOZZLE 10,0/14,0; H=75; B22
251316 1 Pcs.
S NOZZLE 6,0/10,0; H=80; B22
211313 1 Pcs.
S NOZZLE 6,0/10,0; H=80; B22
251319 1 Pcs.
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
11
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 57 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 57 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 57 mm (R)
ECOSELECT 4
≤ 85 mm (R) ≤ 85 mm (R)
VERSAFLOW 4
≤ 85 mm (R) ≤ 85 mm (R)
ECOCELL
≤ 85 mm (R, K) ≤ 57 mm (R, K)
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
10
Selective Soldering Nozzles Selective Soldering Nozzles
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 57 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 57 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 57 mm (R)
ECOSELECT 4
≤ 85 mm (R) ≤ 85 mm (R)
VERSAFLOW 4
≤ 85 mm (R) ≤ 85 mm (R)
ECOCELL
≤ 85 mm (R, K) ≤ 57 mm (R, K)
Height 90 mm, B36
Height 85 mm, B36
S NOZZLE 4,0/8,0; H=85; B36
138145 1 Pcs.
S NOZZLE 4,0/8,0; H=85; B36
184677 1 Pcs.
S NOZZLE 4,0/8,0; H=90; B36
162216 1 Pcs.
S NOZZLE 4,3/8,0; H=90; B36
168373 1 Pcs.
S NOZZLE 6,0/10,0; H=90; B36
162195 1 Pcs.
S NOZZLE 6,2/10,0; H=90; B36
168446 1 Pcs.
Height 47 mm, B36
Height 56 mm, B36 Height 58 mm, B36
S NOZZLE 2,5/4,0; H=47; B36
33143 1 Pcs.
S NOZZLE 3,0/4,5; H=47; B36
6isk47957021a
1 Pcs.
S NOZZLE 3,0/6,0; H=47; B36
6isk47957020a
1 Pcs.
S NOZZLE 3,5/10,0; H=47; B36
25420 1 Pcs.
S NOZZLE 4,0/8,0; H=47; B36
6isk47957022a
1 Pcs.
S NOZZLE 8,0/12,0; H=47; B36
25421 1 Pcs.
S NOZZLE 10,0/14,0; H=47; B36
6isk47957023 1 Pcs.
S NOZZLE 12,0/16,0; H=47; B36
96112 1 Pcs.
S NOZZLE 3,0/4,5; H=56; B36
64673 1 Pcs.
S NOZZLE 4,0/8,0; H=56; B36
64654 1 Pcs.
S NOZZLE 3,0/6,0; H=58; B36
137134 1 Pcs.
Height 75 mm, B36
S NOZZLE 4,0/8,0; H=75; B36
184678 1 Pcs.
